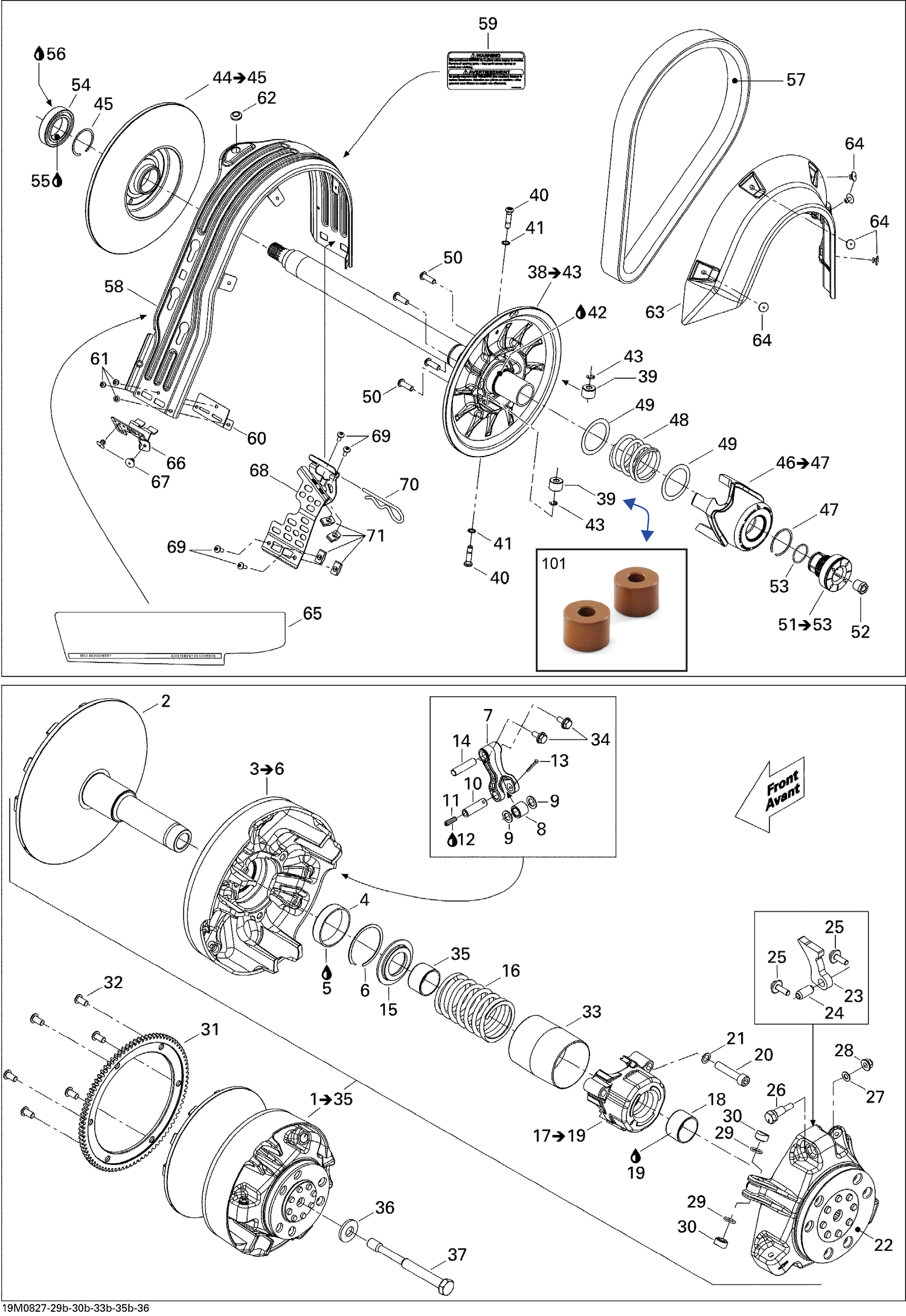

05- Pulley System 800R
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417222966 | Fixed Flange Ass'y |
| 4 | 417223086 | Bushing This part replaces 417223017. |
| 5 | 413703100 | Loctite 609, 10 ml |
| 6 | 293370037 | Circlip |
| 7 | 417222671 | Lever |
| 8 | 417222947 | Roller |
| 9 | 417004302 | Stopper Washer |
| 10 | 417222594 | Pin |
| 11 | XXX | Not Available As Spare Parts |
| 12 | XXX | Not Available As Spare Parts |
| 13 | 250400060 | Cotter Pin This part replaces 732958001. |
| 14 | 417223164 | Lever Axle This part replaces 417009202. |
| 15 | 417222312 | Spring Seat |
| 16 | 415034900 | Spring, Violet/blue |
| 18 | 417009204 | Bushing |
| 19 | 413703100 | Loctite 609, 10 ml |
| 20 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 21 | 250200009 | Lock Washer 8 mm |
| 22 | 417222634 | GOVERNOR CUP - Call your local BRP dealership |
| 23 | 417222546 | Ramp 414 |
| 24 | 250400050 | Spring Pin M10 X 22 This part replaces 250400009. |
| 25 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 26 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership |
| 27 | 417005600 | Washer |
| 28 | 233061414 | Hex. Flange Nut M6 |
| 29 | 732401030 | O-Ring |
| 30 | 417223021 | Slider Shoe This part replaces 420460045. |
| 31 | 417225071 | Ring Gear_Starter This part replaces 417222952. |
| 32 | 250000751 | Torx Screw M8 X 16 This part replaces 250000243. |
| 33 | 417009205 | Guard |
| 34 | 250000416 | Serrated Hex. Flange Bolt M6 This part replaces 250000182. |
| 35 | 417222826 | BUSHING - Call your local BRP dealership |
| 36 | 250200006 | Spring Washer 14 mm |
| 37 | 417300296 | DRIVE PULLEY BOLT - Call your local BRP dealership |
| 39 | 417127016 | Pulley Roller |
| 41 | 250200009 | Lock Washer 8 mm |
| 42 | 413703100 | Loctite 609, 10 ml |
| 43 | 414753500 | Circlip |
| 45 | 293370049 | Circlip |
| 47 | 293370049 | Circlip |
| 48 | 417127062 | Violet Spring |
| 49 | 417127116 | Swivel Abutment |
| 50 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 52 | Not | Available As Spare Part - Straig Fitting |
| 53 | Not | Available As Spare Part - O Ring |
| 54 | 504152574 | Ball Bearing |
| 55 | 413703100 | Loctite 609, 10 ml |
| 56 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 57 | 417300551 | Drive Belt This part replaces 417300166. |
| 58 | 417300353 | Belt Guard |
| 59 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 60 | 417300335 | REINFORCEMENT - Call your local BRP dealership |
| 61 | 390909200 | Avex Rivet |
| 62 | 517303974 | GROMMET - Call your local BRP dealership |
| 63 | 417300356 | Side Protector |
| 64 | 293150103 | Pop Rivet 3/16" |
| 65 | 516003601 | LABEL - Call your local BRP dealership |
| 66 | 417300358 | BELT GUARD BRACKET - Call your local BRP dealership |
| 67 | 293150104 | Pop Rivet 3/16" |
| 68 | 417300354 | Belt Guard Bracket |
| 69 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 70 | 114045200 | Hair Pin |
| 71 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
