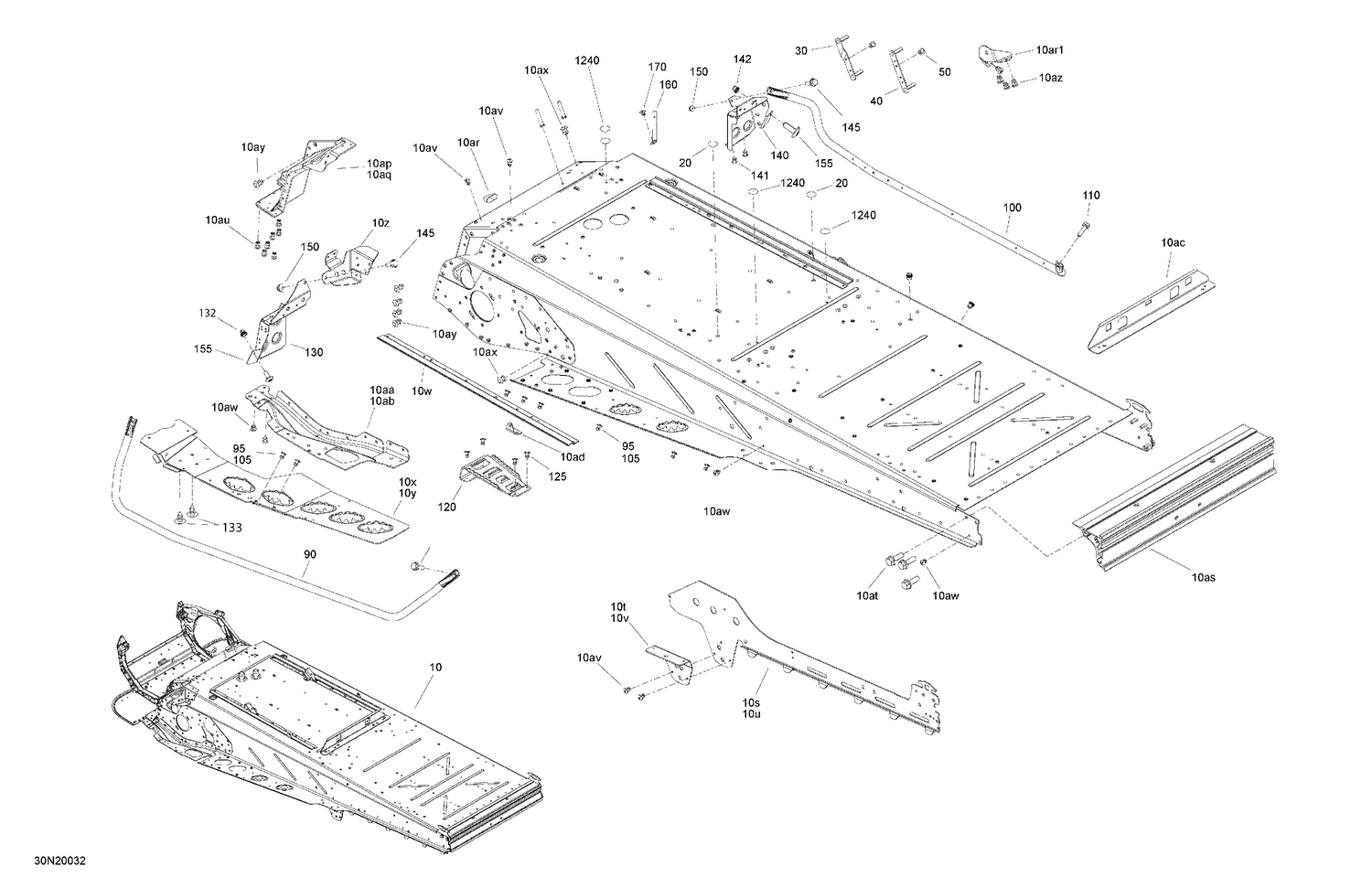

09- Frame - System - Rear Section
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 518328016 | LH Drive Axle Cover |
| 10ab | 518328017 | RH Drive Axle Cover |
| 10ac | 518325986 | BATTERY SUPPORT PLATE - Call your local BRP dealership |
| 10ad | 518329164 | Seat Box Bracket |
| 10ap | 518325524 | LH Frame Corner |
| 10aq | 518328024 | RH Frame Corner |
| 10ar | 518325560 | Adhesive Patch |
| 10ar1 | 518326520 | RH Support |
| 10as | 518328748 | Rear Profile |
| 10at | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 10au | 293150163 | Rivet Hucklok |
| 10av | 390909100 | Avex Rivet |
| 10aw | 390909200 | Avex Rivet |
| 10ax | 293150119 | Hemlock Rivet, 6.5 mm |
| 10ay | 293150183 | Rivet |
| 10az | 293150096 | Hemlock Rivet, 6.5 mm |
| 10s | 518329683 | LH Rear Side Support |
| 10t | 518329083 | Rear Arm Bracket |
| 10u | 518329684 | RH Rear Side Support |
| 10v | 518329083 | Rear Arm Bracket |
| 10w | 518326107 | Fastening rail |
| 10x | 518328821 | LH Footrest |
| 10y | 518328822 | RH Footrest |
| 10z | 605355235 | FASTENING BRACKET - Call your local BRP dealership |
| 20 | 518325560 | Adhesive Patch |
| 30 | 518326123 | GEARBOX FRONT PLATE - Call your local BRP dealership |
| 40 | 518326124 | Gearbox Rear Plate |
| 50 | 390402200 | Pop Rivet 3/16" |
| 90 | 518326963 | LH Footboard Support Tube |
| 95 | 390909100 | Avex Rivet |
| 100 | 518326964 | RH Footboard Support Tube |
| 105 | 390909100 | Avex Rivet |
| 110 | 207662056 | Hex. Flange Screw M6 x 20 |
| 120 | 520001208 | Black Rear Footrest |
| 125 | 293150102 | Rivet 3/16" |
| 130 | 518328819 | Black, LH Toe Hook |
| 132 | 605636003 | Clinch Nut M6 Hexsert |
| 133 | 414644300 | Black, Dart |
| 140 | 518328820 | Black, RH Toe Hook |
| 141 | 390909200 | Avex Rivet |
| 142 | 605636003 | Clinch Nut M6 Hexsert |
| 145 | 207662056 | Hex. Flange Screw M6 x 20 |
| 150 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 155 | 250000717 | Torx Head Screw M6 X 16 |
| 160 | 514054846 | Spring Bracket |
| 170 | 390909200 | Avex Rivet |
