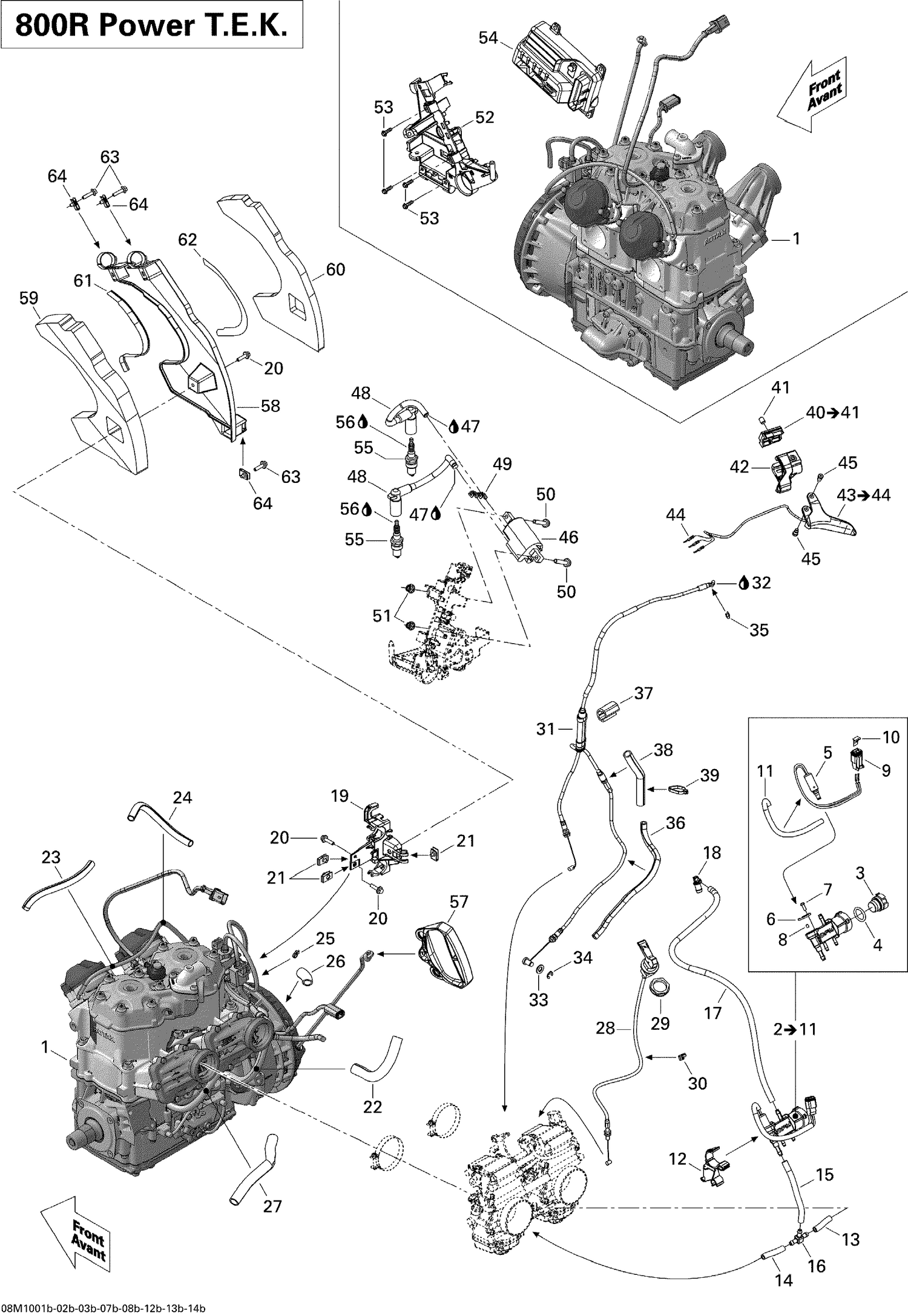

01- Engine And Engine Support 2- 800R PTEK

01- Engine And Engine Support 2- 800R PTEK

Parts (60)

RefPart NumberDescription
1 400800322 Engine 800R
3 270600009 CAP - Call your local BRP dealership
4 293300042 O-RING - Call your local BRP dealership
5 515175701 PRESSURE MANIFOLD HARNESS - Call your local BRP dealership
6 415061600 SOLENOID LOCK - Call your local BRP dealership
7 241140060 Screw K40 X 10
8 404161825 STARTER JET - Call your local BRP dealership
9 515175670 Female Terminal Housing, 2 Circuits
10 515175675 Female Lock, 2 Circuits
11 219704424 Vinyl Tubing, Low Temp 3000Mm Long
12 512060229 DPM SUPPORT - Call your local BRP dealership
13 219704410 Polyurethane Hose 10000Mm Long
14 219704410 Polyurethane Hose 10000Mm Long
15 219704410 Polyurethane Hose 10000Mm Long
16 414729300 T-FITTING - Call your local BRP dealership
17 219704410 Polyurethane Hose 10000Mm Long
18 414580700 Male Connector
19 512060298 Solenoid Support
20 207652044 Hex.Flange Screw M5 X 20
21 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
22 219704400 Was 409901800 Tubing (13 mm)
23 219704407 Tubing 10 MM 1000MM Long
24 219704407 Tubing 10 MM 1000MM Long
25 293750001 Tie Wrap 94 mm
26 219704400 Was 409901800 Tubing (13 mm)
27 219704400 Was 409901800 Tubing (13 mm)
28 512060672 Choke Cable This part replaces 512060153.
29 512060671 Plastic Nut This part replaces 512060016.
30 414115200 Tie-Rap 180 mm
31 512060886 Throttle Cable This part replaces 512060546.
32 219704453 Was 293550004 Dielectric Grease, 150 g
33 234081100 Flat Washer 8 mm, Nylon
34 414753500 Circlip
35 414274500 Circlip
36 219704425 Tubing 6 Mm 3000Mm Long
37 512060313 Protector
38 219704407 Tubing 10 MM 1000MM Long
39 414115200 Tie-Rap 180 mm
41 414440800 Socket Set Screw M8 X 10
42 512060860 Lower Housing This part replaces 512060430.
44 515175232 Male Terminal
45 732601143 Flange Screw
46 512059968 Ignition Coil
47 219704453 Was 293550004 Dielectric Grease, 150 g
48 512060291 Cable
49 410914600 Plastic Clip, Spark Plug Wire
50 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
51 233261414 Hex. Flange Elastic Nut M6 x 1.0
52 512060924 Coils Support This part replaces 512060278.
53 241151640 Hex. Flange Screw K50 X 2.24 X 16
54 512060682 CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership This part replaces 512060528.
55 415128524 Spark Plug NGK BR9ECS
56 219704453 Was 293550004 Dielectric Grease, 150 g
57 512060136 Starter Grip
58 512060338 Noise Shield
59 512060341 Inner Noise Foam
60 512060342 Outer Noise Foam
61 512060574 Heat Shield
62 512060575 Heat Shield
63 207652044 Hex.Flange Screw M5 X 20
