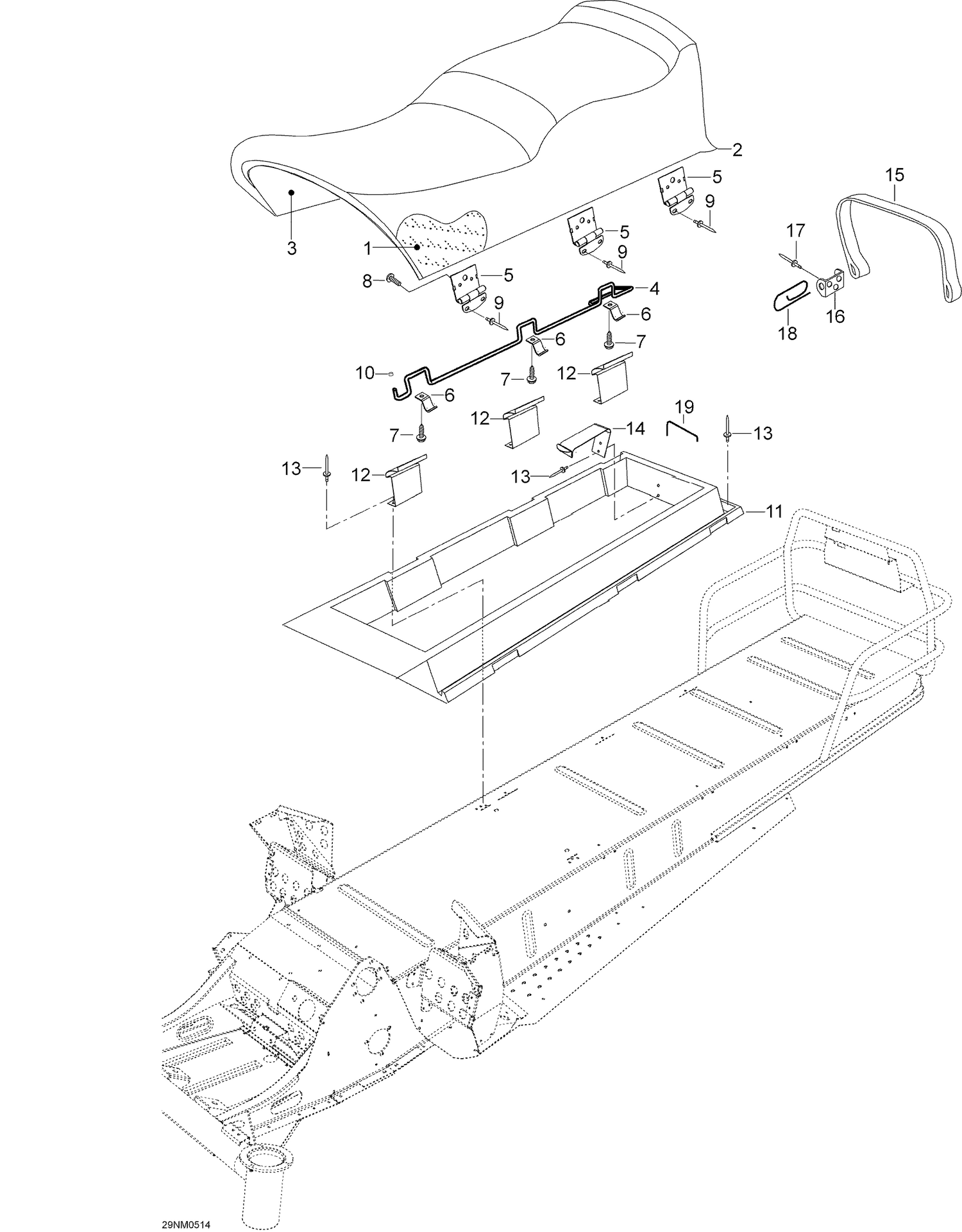

| Ref | Part Number | Description |
|---|
| 1 |
605150630 |
SEAT FOAM - Call your local BRP dealership |
| 2 |
605148620 |
Cover |
| 3 |
5144962 |
Seat Base - Call your local BRP dealership |
| 4 |
5245337 |
Locking shaft |
| 5 |
5346518 |
HINGE - Call your local BRP dealership |
| 6 |
5446102 |
Locking plate |
| 7 |
40888 |
Wronic-screw 4,2 x 19 |
| 8 |
40887 |
Wronic-screw 4,2 x 9,5 |
| 9 |
36083 |
Rivet |
| 10 |
28019 |
Plug |
| 11 |
605350823 |
Seat housing |
| 12 |
5345195 |
LOCKING DEVICE - Call your local BRP dealership |
| 13 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 14 |
5346728 |
Spring plate |
| 15 |
5346727 |
Seat belt |
| 16 |
548824 |
FASTENING - Call your local BRP dealership |
| 17 |
36083 |
Rivet |
