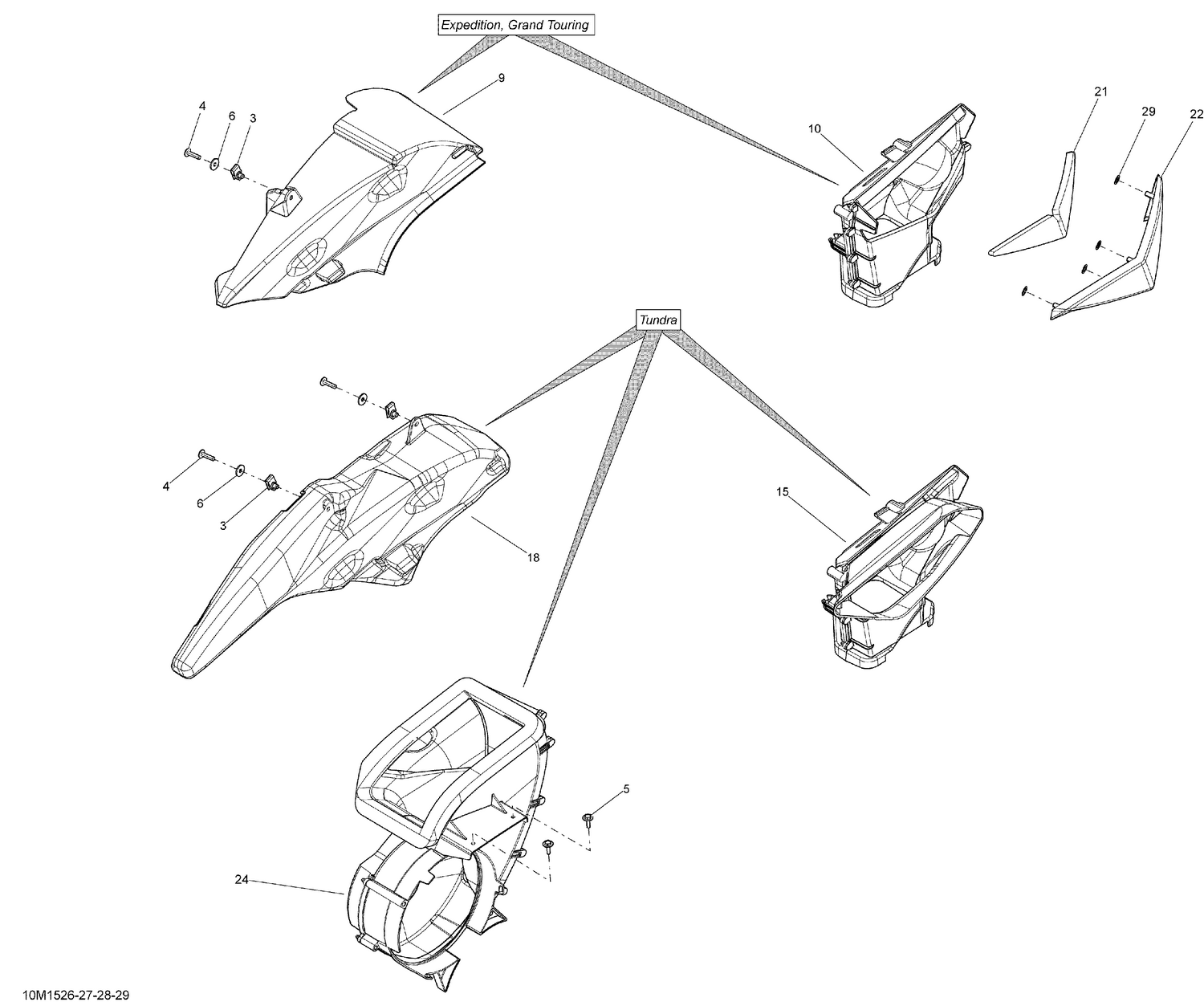

01- Cooling System _10M1526
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 4 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 5 | 250000377 | PLASTITE SCREW TYPE K-40 M4 X 16 - Call your local BRP dealership |
| 6 | 391301600 | Washer |
| 9 | 509000451 | Air Chamber |
| 10 | 509000452 | Outlet Duct |
| 15 | XXX | Not Available As Spare Parts |
| 18 | XXX | Not Available As Spare Parts |
| 21 | 509000574 | Air Inlet Foam |
| 22 | 509000611 | Outlet Air Deflector |
| 24 | 509000840 | Inlet Duct |
