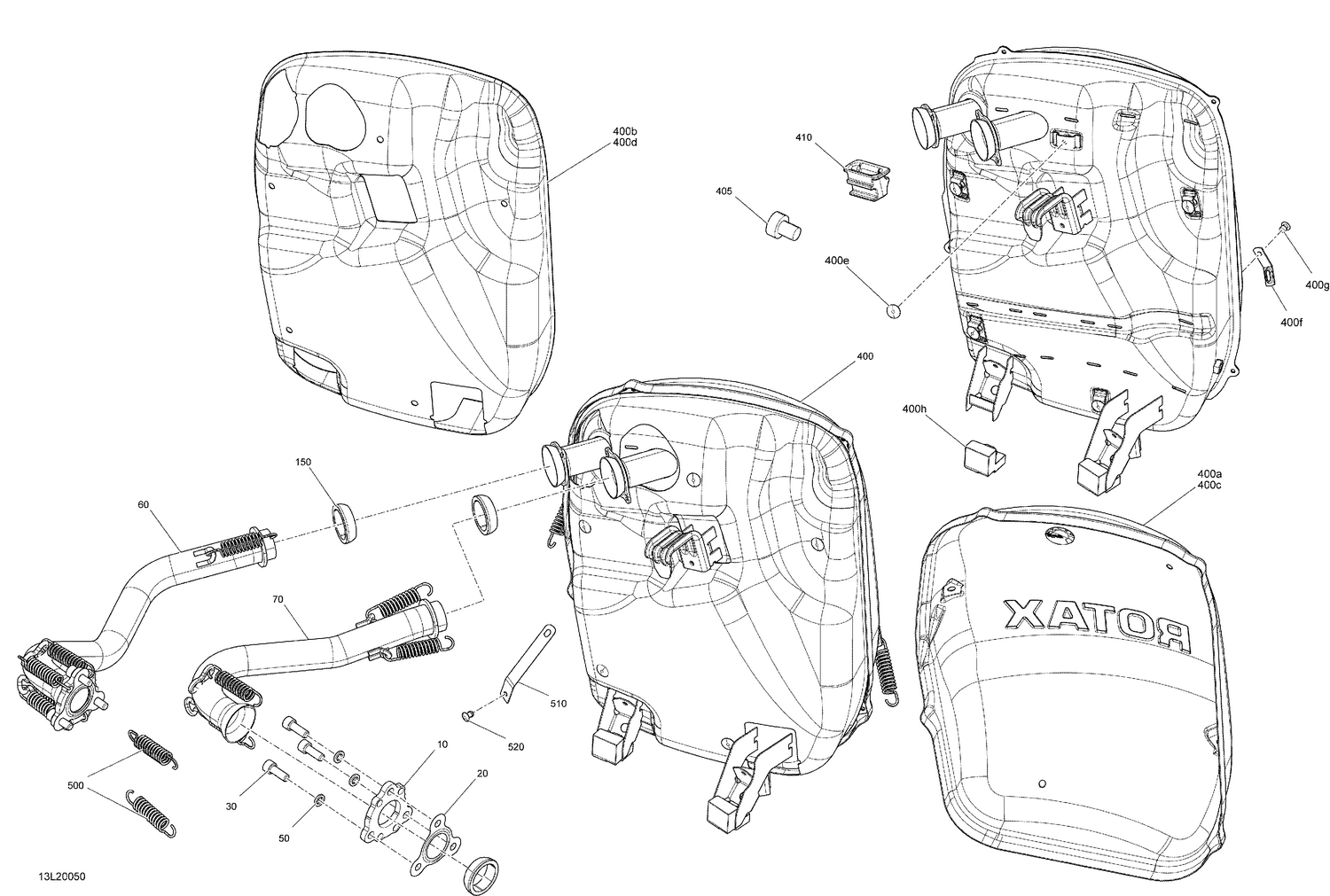

02- Engine - Exhaust
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 514054673 | Exhaust Manifold |
| 20 | 514055112 | Gasket |
| 30 | 250000414 | Socket Head Screw M8 X 22 |
| 50 | 250200111 | Washer |
| 60 | 514054733 | Welded Tube |
| 70 | 514054734 | WELDED TUBE - Call your local BRP dealership |
| 150 | 514054807 | Exhaust Gasket |
| 400a | 514055325 | RH Heat Shield |
| 400b | 514054645 | LH Heat Shield |
| 400c | 514054769 | RH Insulating Wool |
| 400d | 514054770 | LH Insulating Wool |
| 400e | 390910000 | Pop Rivet 3/16” |
| 400f | 514054522 | Spring Bracket |
| 400g | 390909200 | Avex Rivet |
| 400h | 514054529 | Lower Stopper |
| 405 | 570044700 | Rubber Bumper |
| 410 | 514054737 | Upper Stopper |
| 500 | 415107100 | Spring |
| 510 | 514055317 | Spring Bracket |
