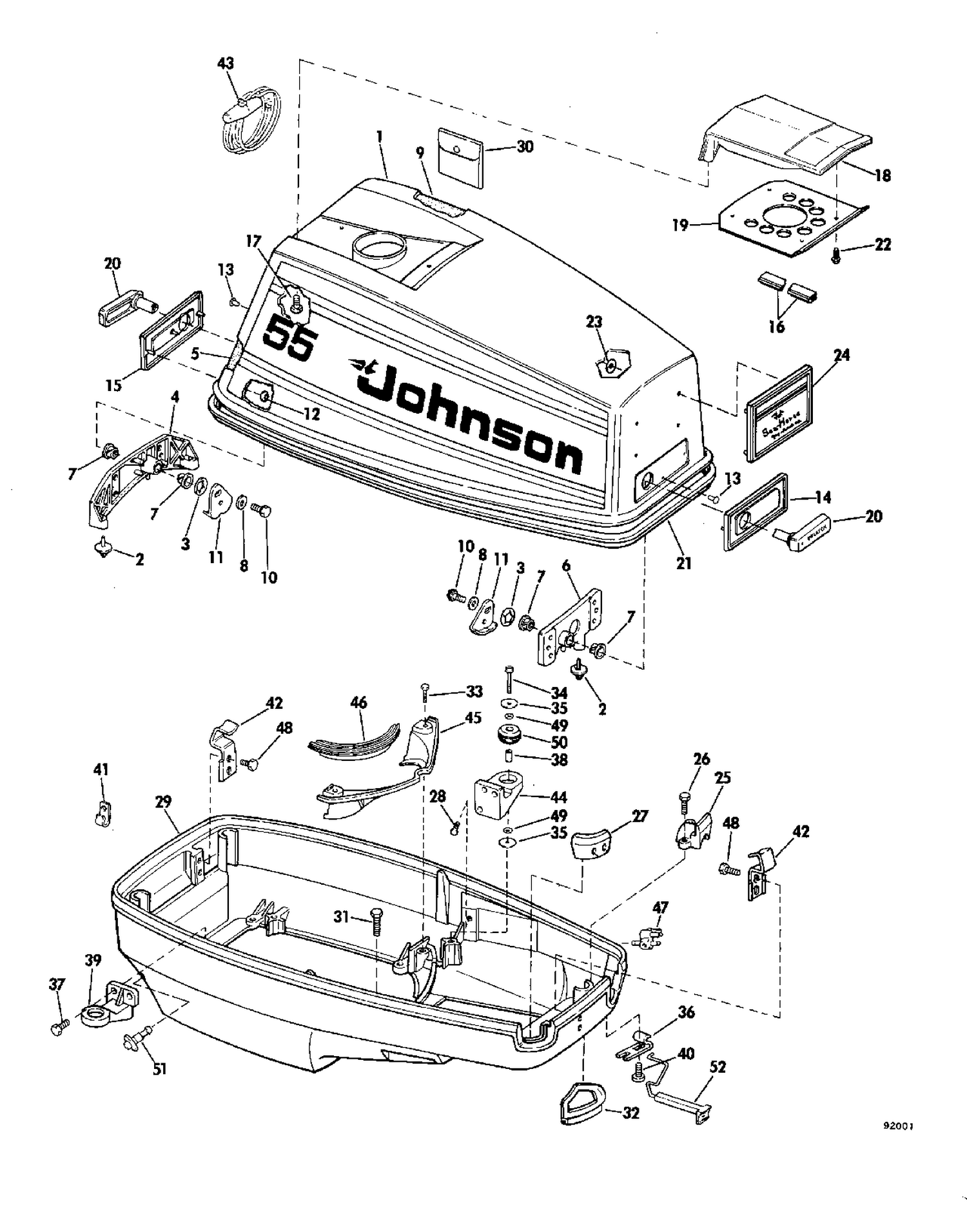

| Ref | Part Number | Description |
|---|
| 1 |
0389306 |
MOTOR COVER ASSY |
| 1 |
0389307 |
MOTOR COVER ASSY |
| 6 |
0316025 |
LOCATING BLANKET, Front |
| 10 |
0318468 |
SCRAEW, Latch to handle |
| 14 |
0317107 |
APPLIQUE, Front handle |
| 15 |
0317112 |
APPLIQUE |
| 16 |
SEAL,Baffle |
Ref: 17 0323228 **SCREW 0323228 |
| 18 |
0333089 |
TILT HANDLE This part replaces 0323226. |
| 19 |
0323227 |
BAFFLE, Tilt handle |
| 20 |
0322568 |
HANDLE & SHAFT |
| 21 |
0208154 |
SEAL, Motor cover, upper |
| 24 |
0389614 |
APPLIQUE |
| 25 |
0318286 |
CLAMP |
| 26 |
0307151 |
SCREW |
| 27 |
0318284 |
CLAMP, Cable |
| 27 |
0320295 |
GROMMET, Control cables |
| 28 |
0313117 |
SCR,Clamp,eng cable |
| 29 |
0322123 |
LOWER MOTOR COVER |
| 29 |
0324963 |
LOWER MOTOR COVER |
| 30 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 31 |
0300646 |
VIS, ancrage |
| 32 |
0318574 |
SEAL, Steering arm |
| 33 |
0312299 |
VIS, serre-câble |
| 34 |
0308995 |
SCREW, Front mount |
| 36 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 37 |
0551793 |
SCREW |
| 38 |
0302406 |
SLEEVE |
| 39 |
0327196 |
SUPPORT, Front stbd This part replaces 0320300. |
| 40 |
0310539 |
SCREW, Clamp choke solenoid |
| 41 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 42 |
0323474 |
HOOK, Cover to housing |
| 43 |
0378347 |
CORDE DE LANCEUR |
| 44 |
0316002 |
SUPPORT, Front port |
| 45 |
0318557 |
FRAME, Front |
| 46 |
0316064 |
SEAL, Frame |
| 47 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 48 |
0304027 |
VIS, arbre de commande de sens de marche |
| 50 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 51 |
0321885 |
NIPPLE |
| 52 |
0389748 |
CHOKE KNOB AND ROD |
| 0389615 |
0389615 |
DECAL SET |
| 0389616 |
0389616 |
DECAL SET |
