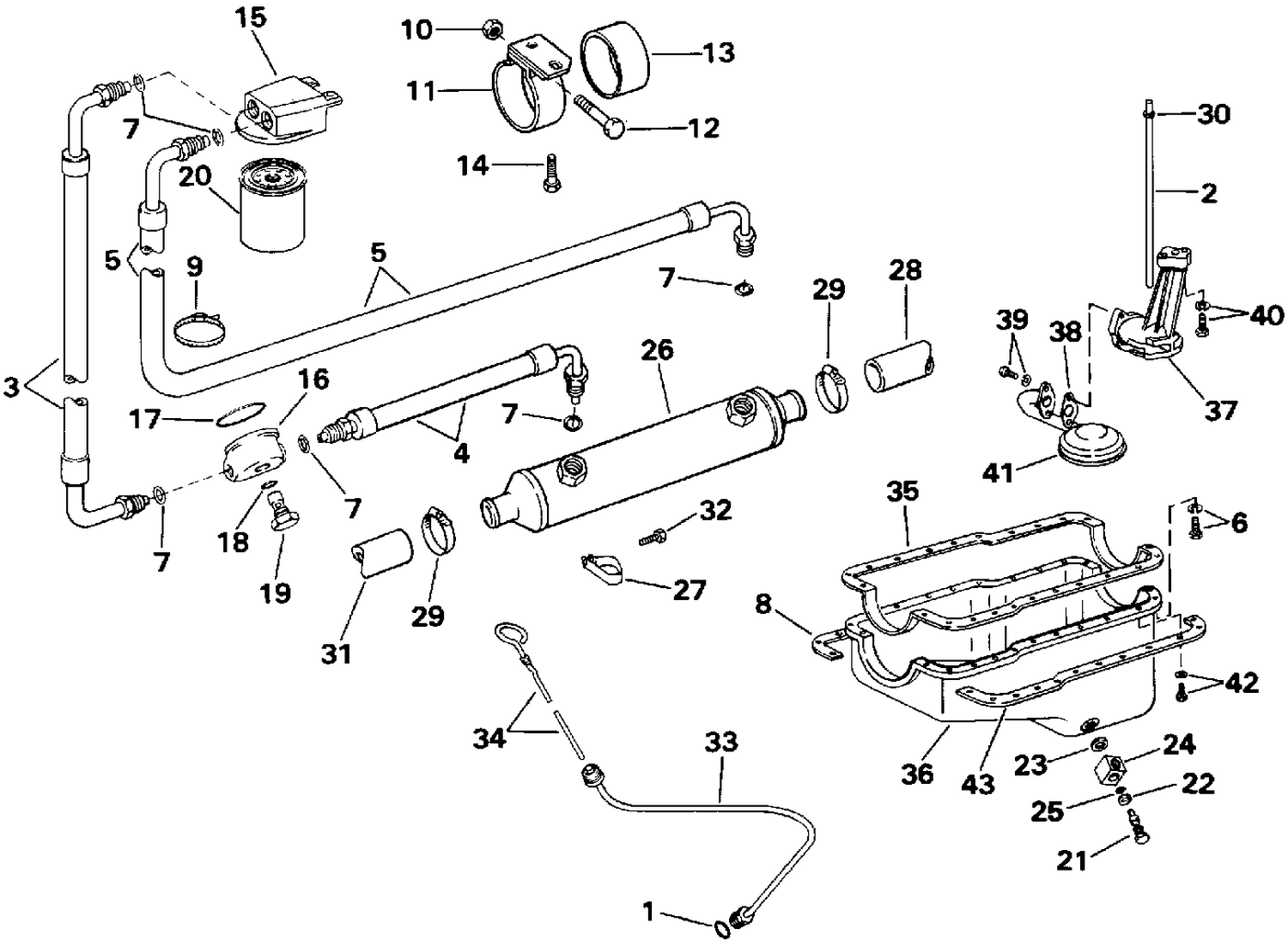

| Ref | Part Number | Description |
|---|
| 2 |
3853105 |
SHAFT, Oil pump This part replaces 0914235. |
| 3 |
3854419 |
HOSE, Adapter to filter This part replaces 0987535. |
| 4 |
0987968 |
HOSE, Adapter to cooler |
| 5 |
0987967 |
HOSE, Filter to cooler |
| 6 |
3853006 |
SCREW, Oil pan This part replaces 0914132. |
| 8 |
3853106 |
REINFORCEMENT, Oil pan, stbd. This part replaces 0914236. |
| 9 |
3852620 |
TIE STRAP, Oil lines This part replaces 0912861. |
| 10 |
0308335 |
CLAMP, Coil |
| 11 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 13 |
3853236 |
SLEEVE, Ignition coil This part replaces 0914455. |
| 14 |
3853399 |
SCREW, Brace to alternator This part replaces 0915008. |
| 15 |
3854592 |
ADAPTER, Oil filter This part replaces 0986365. |
| 16 |
3854414 |
Adaptor This part replaces 0914474. |
| 17 |
0912465 |
O-RING, Adapter |
| 19 |
3854415 |
RETAINER, Adapter This part replaces 0912547. |
| 20 |
0502900 |
OIL FILTER This part replaces 0173231. |
| 21 |
3852609 |
RETAINER, Oil drain This part replaces 0912734. |
| 23 |
3853725 |
SCREW, Retainer, stbd. rear This part replaces 0916182. |
| 24 |
3855112 |
FITTING, Oil drain This part replaces 0916083. |
| 25 |
3853674 |
O-RING, Oil drain This part replaces 0916106. |
| 26 |
3853969 |
OIL COOLER This part replaces 0986373. |
| 27 |
0913558 |
CAMP, Hoses to cyl. head, stbd. |
| 28 |
0916213 |
HOSE, Cooler to cooler |
| 29 |
0912627 |
CLAMP |
| 30 |
3853005 |
RETAINER, Oil pump shaft This part replaces 0914127. |
| 31 |
0916212 |
HOSE, Cooler to thermostat |
| 32 |
3853557 |
SCREW, Brace to alterntr bracket This part replaces 0915790. |
| 33 |
3854170 |
TUBE, Oil drain This part replaces 0987720. |
| 34 |
0987759 |
OIL LEVEL GAUGE |
| 35 |
3852823 |
GASKET, Oil pan This part replaces 0913763. |
| 36 |
3853798 |
OIL PAN This part replaces 0982520. |
| 37 |
3853908 |
OIL PUMP ASSY. This part replaces 0986099. |
| 38 |
3853267 |
GASKET, Oil screen This part replaces 0914554. |
| 39 |
3853032 |
SCREW, Pickup tube This part replaces 0914161. |
| 40 |
3853032 |
SCREW, Pickup tube This part replaces 0914161. |
| 41 |
3853104 |
OIL PICKUP TUBE This part replaces 0914234. |
| 42 |
3853033 |
SCREW, Oil pan This part replaces 0914163. |
