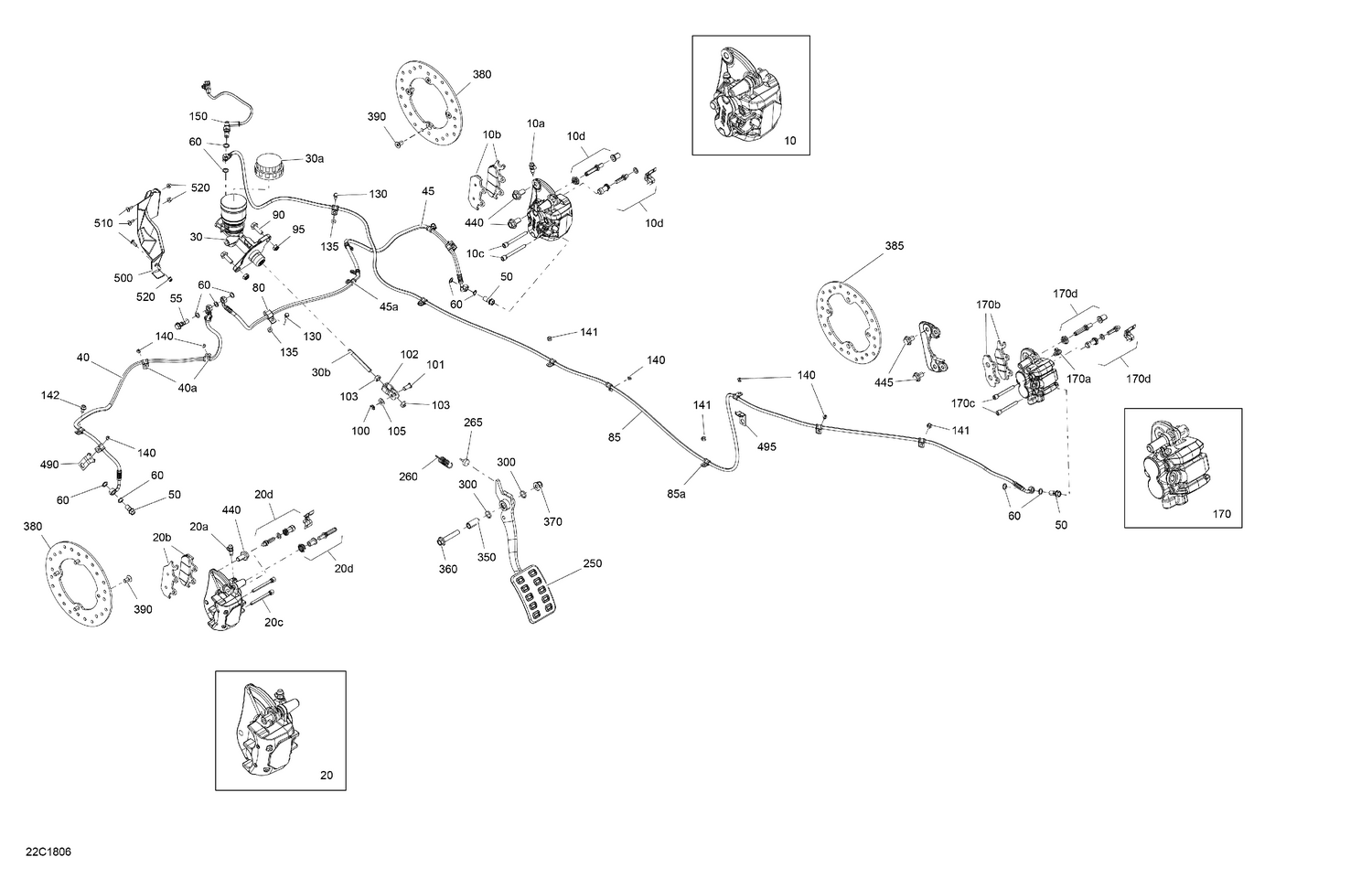

06- Brakes - Commander - Model 1000R
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 705600080 | Bleeding Screw |
| 10b | 705601150 | RH Brake Pad Kit |
| 10c | 705601151 | Hanger Pin Kit |
| 10d | 715500385 | Spring And Bolt Kit |
| 20a | 705600080 | Bleeding Screw |
| 20b | 705601149 | LH Brake Pad Kit |
| 20c | 705601151 | Hanger Pin Kit |
| 20d | 715500385 | Spring And Bolt Kit |
| 30a | 715500332 | Diaphragm Cap Kit |
| 30b | 705600833 | Master Cylinder Rod |
| 40a | 293650256 | Clamp |
| 45a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 55 | 705601723 | Double Banjo Bolt |
| 60 | 705601628 | Copper Washer |
| 80 | 293650220 | Clamp |
| 85a | 293650256 | Clamp |
| 90 | 207682544 | Hex. Flange Screw M8 X 25 |
| 95 | 232581414 | Hex. Elastic Stop Nut M8 |
| 100 | 371800700 | Cotter Pin |
| 101 | 250400058 | Pin |
| 102 | 705601142 | Yoke |
| 103 | 232081414 | Hex. Nut M8 |
| 105 | 234081430 | Flat Washer M8 |
| 130 | 210251650 | Hex. Forming Screw M5 X 16 |
| 135 | 233251494 | Elastic Flange Nut M5 |
| 140 | 293150293 | Pop Rivet 3/16 X ,425 |
| 141 | 232561434 | Elastic Stop Nut M6 |
| 142 | 210261040 | Hex. Flange Screw M6 X 10 |
| 150 | 705601250 | Brake Switch |
| 170a | 705600080 | Bleeding Screw |
| 170b | 715500336 | RH Brake Pad Kit |
| 170c | 715500337 | Sliding Pin Kit |
| 170d | 715500383 | Spring Boot Bolt Kit |
| 250 | 705600724 | Brake Pedal |
| 260 | 705600792 | Brake Pedal Spring |
| 265 | 708000759 | Rubber Stopper |
| 300 | 293300144 | O-Ring |
| 350 | 705600815 | Inner Spacer |
| 360 | 207605544 | Hex. Flange Screw M10 X 55 |
| 370 | 233201414 | Hex. Flange Elastic Nut M10 |
| 380 | 705601178 | Disc Brake |
| 385 | 705600684 | Brake Disc |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 440 | 250001134 | Hex. Flange Screw M10 X 20 |
| 445 | 250000060 | Flange Screw M10 X 16, Scotch Grip |
| 490 | 705601337 | Bracket |
| 495 | 705601337 | Bracket |
| 500 | 705600917 | LH Front Deflector |
| 510 | 250000742 | Torx Screw M5 X 14 |
