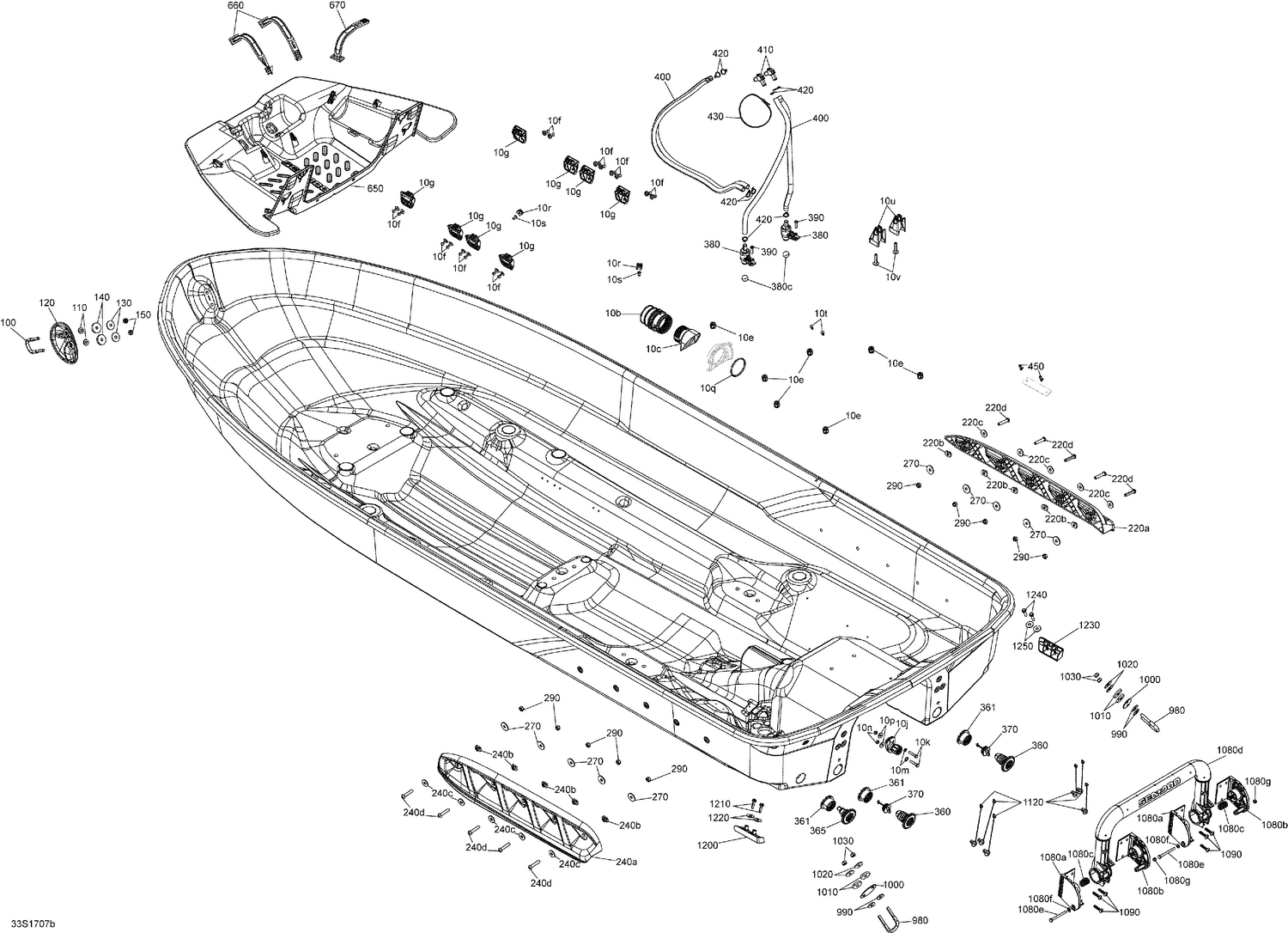

| Ref | Part Number | Description |
|---|
| 10b |
293450339 |
Hull Insert |
| 10c |
293450335 |
Hull Insert |
| 10e |
Not |
Available As Spare Part - Hull Insert |
| 10f |
293150123 |
Pop Rivet 3/16" |
| 10g |
270000933 |
Strap Retaining |
| 10j |
277001881 |
Cable Adaptor Ass'y |
| 10k |
207063060 |
Hex. Screw M6 X 30 |
| 10m |
250200114 |
Sealing Washer |
| 10n |
232561200 |
Brass Elastic Stop Nut M6 |
| 10p |
234062600 |
Flat Washer M6, Stainless |
| 10q |
267000477 |
O-Ring |
| 10r |
293750026 |
Tie Rap Mount |
| 10s |
293150037 |
Avdel Rivet 3/16" |
| 10t |
293730062 |
Dart |
| 10u |
270000988 |
Strap Anchor |
| 10v |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 100 |
292000933 |
U-Clamp |
| 110 |
293050001 |
Flat Washer M8.5 x 18 |
| 120 |
292001837 |
Black Shell |
| 130 |
250200175 |
Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 140 |
293830037 |
Rubber Washer |
| 150 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 220a |
292001878 |
RH Sponson |
| 220b |
292001349 |
Spacer Sponson |
| 220c |
234082600 |
Flat Washer 8 mm, Stainless |
| 220d |
250000452 |
Torx Screw M8 X 40, Stainless |
| 240a |
292001877 |
LH Sponson |
| 240b |
292001349 |
Spacer Sponson |
| 240c |
234082600 |
Flat Washer 8 mm, Stainless |
| 240d |
250000452 |
Torx Screw M8 X 40, Stainless |
| 270 |
250200175 |
Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 290 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 360 |
292001580 |
Drain Ass'y |
| 361 |
292001371 |
Bushing |
| 370 |
292002022 |
Plug Ass'y This part replaces 292001583. |
| 380c |
293830080 |
Floating Ball |
| 390 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 400 |
219704356 |
Was 275500008 Hose 12 mm |
| 410 |
293710152 |
Fitting Elbow 90° |
| 420 |
293750001 |
Tie Wrap 94 mm |
| 430 |
293750008 |
Tie Wrap 368 mm |
| 450 |
293150037 |
Avdel Rivet 3/16" |
| 650 |
292001868 |
Trunk Shield |
| 660 |
269502417 |
Strap This part replaces 269500408. |
| 670 |
269502417 |
Strap This part replaces 269500408. |
| 980 |
292000933 |
U-Clamp |
| 990 |
279000336 |
Flat Washer This part replaces 279000164. |
| 1000 |
291001386 |
Black, Finition Plate |
| 1010 |
293830037 |
Rubber Washer |
| 1020 |
250200175 |
Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 1030 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 1080a |
292001509 |
A Section Support |
| 1080b |
292001510 |
B Section Support |
| 1080c |
292001259 |
Spring |
| 1080d |
292001204 |
Overmolded Bar |
| 1080e |
207066560 |
Hex. Screw M6 x 65 |
| 1080f |
234061600 |
Stainless Flat Washer M6 |
| 1080g |
232561600 |
Hex. Elastic Stop Nut M6 |
| 1090 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 1120 |
219704460 |
Was 293800066 Sealant Loctite 5900, 300 ml |
| 1200 |
292001811 |
LH Trim Tab |
| 1210 |
243162560 |
Hex. Flange Screw M6.81 X 25, Plastite |
| 1220 |
234082600 |
Flat Washer 8 mm, Stainless |
| 1230 |
292001812 |
RH Trim Tab |
| 1240 |
243162560 |
Hex. Flange Screw M6.81 X 25, Plastite |
