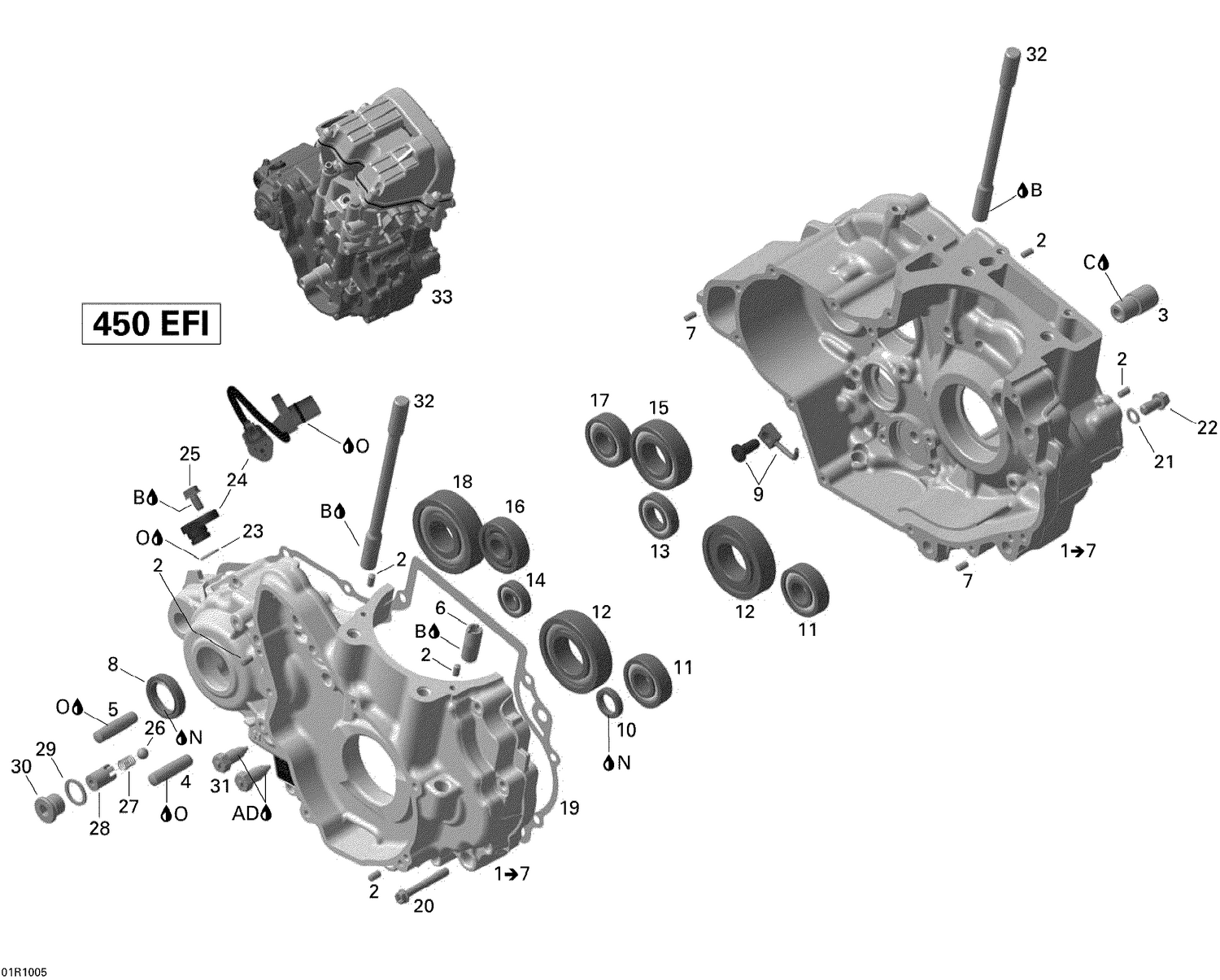

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| C |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| N |
293550030 |
Grease, Super Lube |
| O |
Not |
Available As Spare Part - Engine Oil |
| 2 |
420929650 |
Drive Pin 5 X 10 |
| 3 |
420229135 |
BEARING PIN - Call your local BRP dealership |
| 4 |
420229302 |
Location Pin 10 M6x50 This part replaces 420229301. |
| 5 |
420929935 |
INTERMEDIATE GEAR SHAFT - Call your local BRP dealership |
| 6 |
420256332 |
Hose Nipple |
| 7 |
420832731 |
DOWEL PIN - Call your local BRP dealership |
| 8 |
420830602 |
OIL SEAL - Call your local BRP dealership |
| 9 |
420856986 |
Oil Spray Nozzle Ass'y |
| 10 |
420250130 |
Oil Seal |
| 11 |
420232855 |
Balll Bearing |
| 12 |
420832526 |
Balll Bearing |
| 13 |
420232590 |
BALL BEARING - Call your local BRP dealership |
| 14 |
420232400 |
Balll Bearing |
| 15 |
420232765 |
BALL BEARING - Call your local BRP dealership |
| 16 |
420232291 |
Ball Bearing 6302 |
| 17 |
Not |
Available As Spare Part - Ball Bearing |
| 18 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 19 |
420431010 |
Gasket |
| 20 |
420641198 |
Torx Flange Screw M6 X 45 |
| 21 |
420950141 |
Sealing Ring |
| 22 |
420440852 |
Torx Flange Screw M8 X 16 |
| 23 |
420230451 |
O-Ring |
| 24 |
420627805 |
COVER - Call your local BRP dealership |
| 25 |
420240385 |
TAPTITE SCREW M6 X 12 - Call your local BRP dealership |
| 26 |
420432680 |
Ball 8.5 mm |
| 27 |
420238030 |
COMPRESSION SPRING - Call your local BRP dealership |
| 28 |
420256483 |
PRESSURE RETAINER VALVE HOUSING - Call your local BRP dealership |
| 29 |
420430622 |
O-Ring |
| 30 |
420240234 |
Plug Screw M16 X 1.5 This part replaces 420240230. |
| 31 |
420241856 |
Position Switch |
| 32 |
420241580 |
Stud |
| 33 |
420044904 |
LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership This part replaces 420044903. |
