Parts Catalog

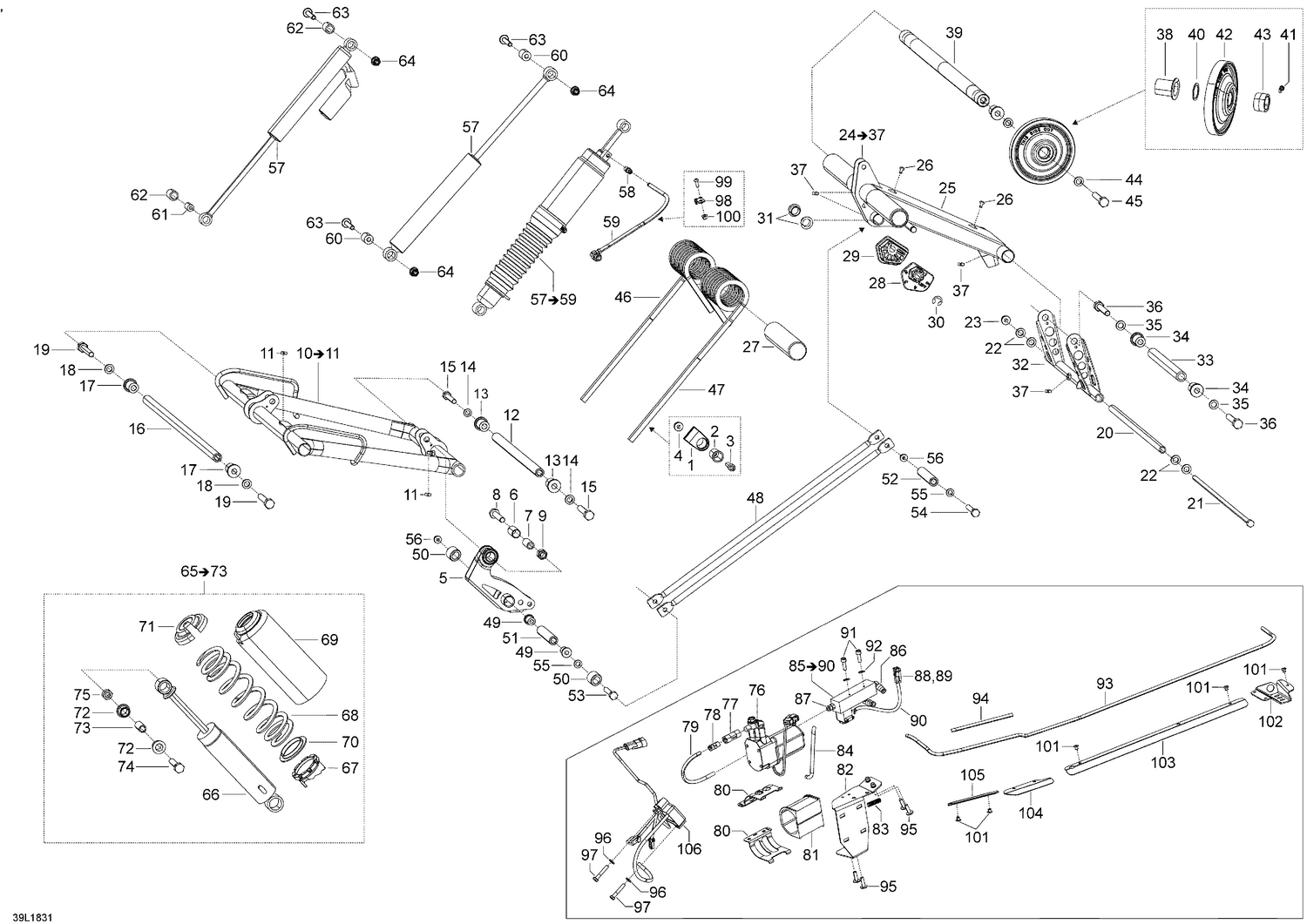

08- Rear Suspension

Parts (52)

Ref	Part Number	Description
1	861805547	Spring Support Kit This part replaces 503191183.
2	861805547	Spring Support Kit This part replaces 503190754.
3	205082544	Socket Head Screw M8 X 25
4	233281414	Hex. Flange Elastic Nut M8
6	503193037	Bushing
7	503189282	Bushing
8	207005044	Hex. Screw M10 X 1.5 X 50
9	233601416	Elastic Locking Nut M10 X 1.5
11	408200700	Grease Fitting
12	503191390	Lower Shaft
13	503189324	Bushing
14	503192496	Washer
15	250000605	Hex. Screw S.Grip M10 X 55
16	503191391	Upper Shaft
17	503189324	Bushing
18	503189564	Washer
19	250000605	Hex. Screw S.Grip M10 X 55
20	503191396	Axle Pivot
21	503195156	Bolt 369MM This part replaces 503191397.
22	503189157	Washer
23	233281414	Hex. Flange Elastic Nut M8
26	414644300	Black, Dart
27	Not	Available As Spare Part - Bushing
28	503191565	LH Cam Adjuster
29	503191566	RH Cam Adjuster
30	293370013	E-Circlip
31	503191555	Swivel Bushing
32	503195154	Pivot Arm This part replaces 503191393.
33	503192330	Lower Shaft
34	503191640	Cushion
36	205523554	Socket Head Screw M12 X 35
37	408200700	Grease Fitting
38	503191451	Cushion
39	503191405	Upper Shaft
40	503190328	Washer
41	206260844	Socket Set Screw M6 X 8
42	503190803	Wheel 165
43	503194366	Retaining Ring
44	503192491	Washer
45	250000484	Socket Screw M12 X 35
49	503191555	Swivel Bushing
52	503190643	Axle Bar (Long)
54	207089044	Hex. Screw M8 X 90
55	503189157	Washer
56	233281414	Hex. Flange Elastic Nut M8
58	503191939	Male Pneumatic Connector
59	503192649	Pneumatic Hose Ass'y
68	503191880	Black, Spring 242MM
72	503189117	Urethane Bushing
73	503189282	Bushing
74	207005044	Hex. Screw M10 X 1.5 X 50
75	233601416	Elastic Locking Nut M10 X 1.5
