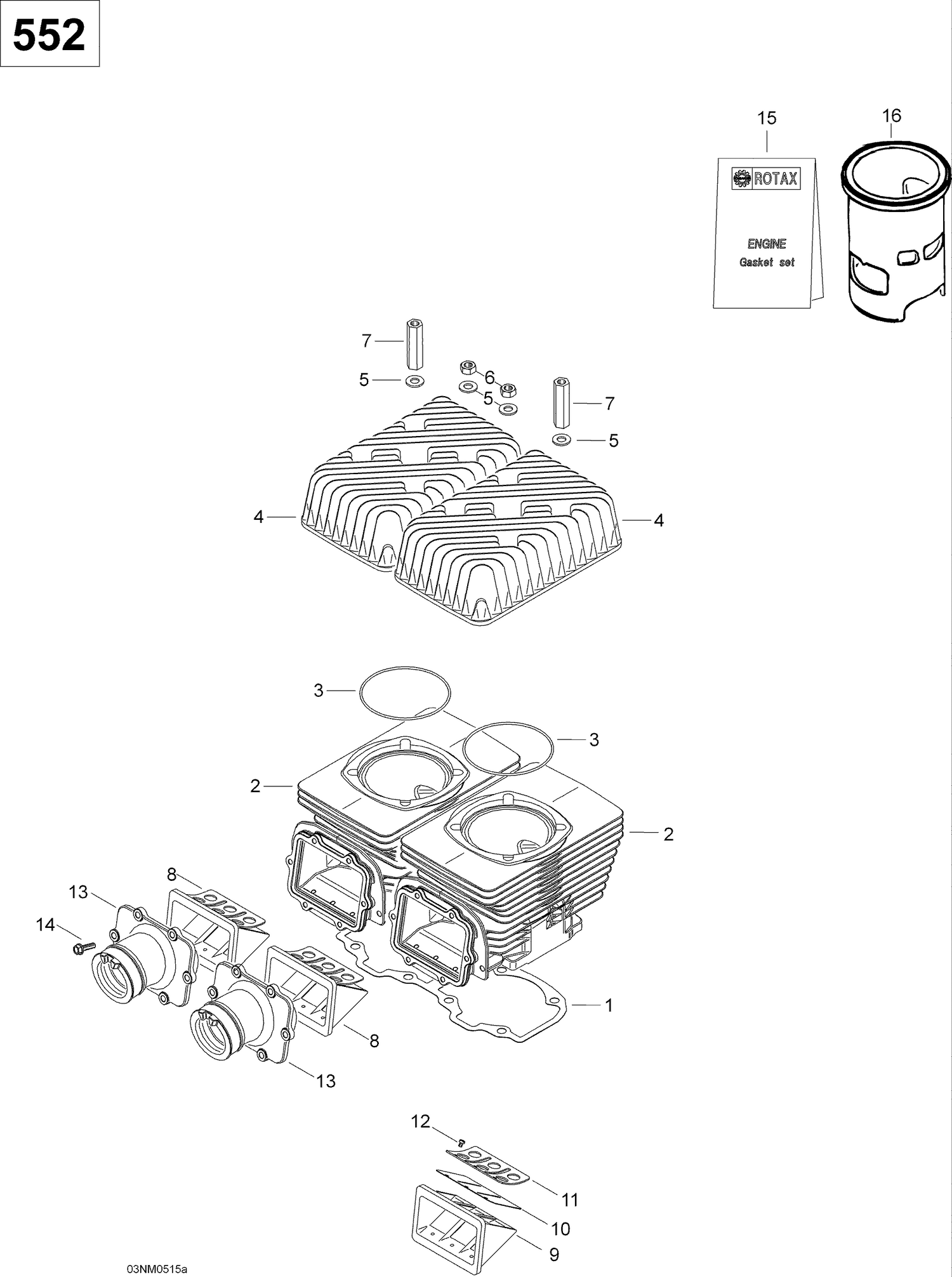

| Ref | Part Number | Description |
|---|
| 1 |
420950910 |
Gasket, cyl.bottom 0.3 |
| 1 |
420950911 |
Gasket, cyl.bottom 0.4 |
| 1 |
420950912 |
Gasket, cyl.bottom 0.6 |
| 2 |
420623142 |
Cylinder With Sleeve This part replaces 420623141. |
| 3 |
293300026 |
Gasket, cylinder head |
| 4 |
420923595 |
HEAD CYLINDER - Call your local BRP dealership |
| 5 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 6 |
232081414 |
Hex. Nut M8 This part replaces 420242206. |
| 7 |
420842204 |
Distance Nut M8 x 47 This part replaces 420842203. |
| 8 |
420924519 |
Reed Valve Support Ass'y |
| 9 |
Not |
Available As Spare Part - Reed valve housing |
| 10 |
420924532 |
Reed Pedal |
| 11 |
420924539 |
Reed Pedal Stop |
| 12 |
420941215 |
Screw M3 x 5 |
| 13 |
420867100 |
Carburetor socket |
| 14 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 15 |
420889911 |
Gasket set |
