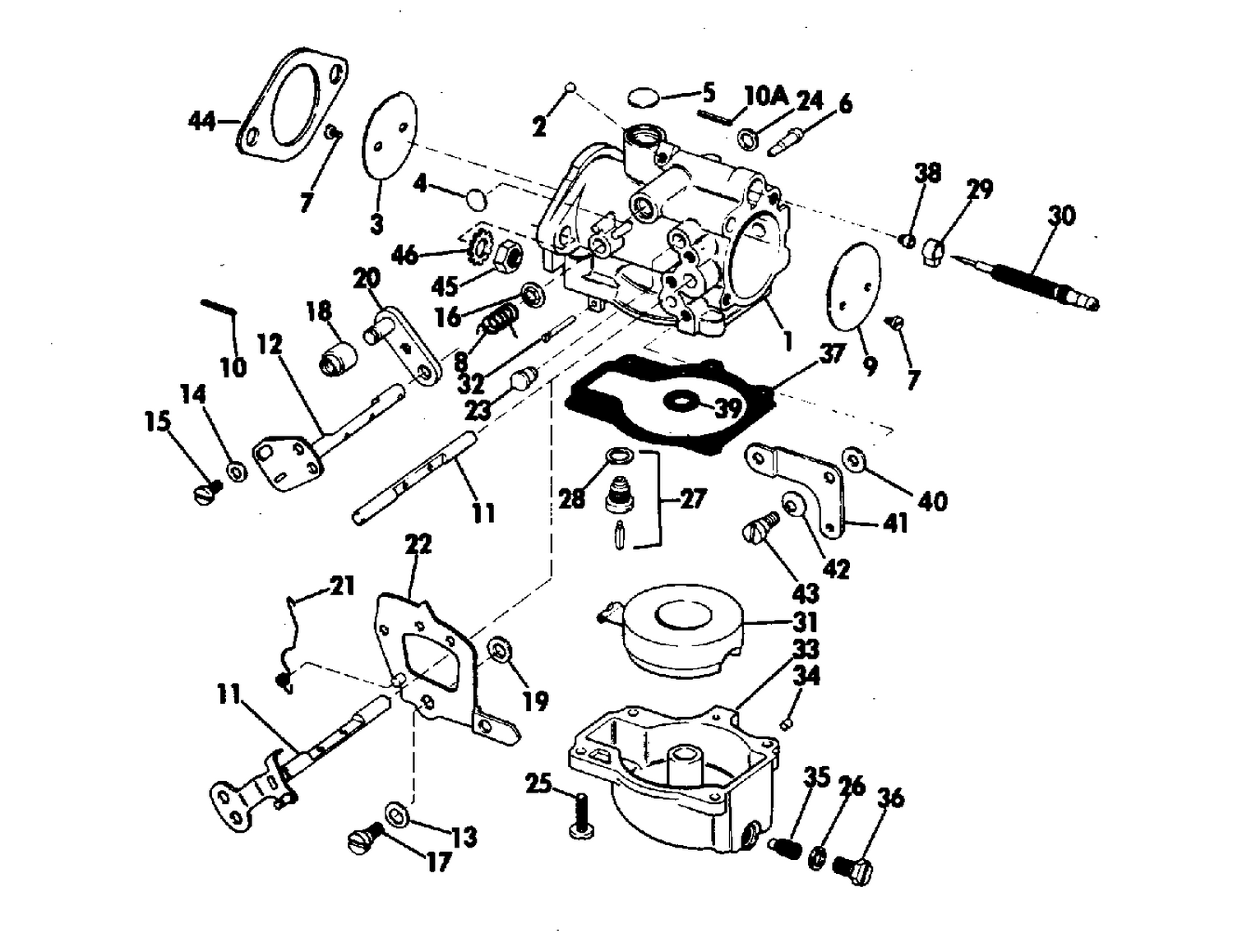

| Ref | Part Number | Description |
|---|
| 1 |
0384435 |
BODY ASSY.,Upper and lower |
| 1 |
0384436 |
BODY ASSY., Middle |
| 9 |
0322182 |
CHOKE VALVE This part replaces 0313359. |
| 11 |
0321798 |
CHOKE SHAFT This part replaces 0313358. |
| 29 |
0315232 |
RETAINER , Needle valve stbd |
| 30 |
0313360 |
NEEDLE VALVE, Slow speed |
| 33 |
0383318 |
FLOAT CHAMBER ASSEMBLY |
| 33 |
0383319 |
FLOAT CHAMBER ASSEMBLY |
| 36 |
0307832 |
PLUG, Screw |
| 38 |
0314166 |
BEARING, Needle valve |
| 40 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 41 |
0315923 |
BELLCRANK, Choke |
| 44 |
0325092 |
GASKET This part replaces 0314477. |
| 0384178 |
0384178 |
CARBURETOR ASSEMBLY, Upper |
| 0384179 |
0384179 |
CARBURETOR ASSEMBLY, Middle |
| 0384180 |
0384180 |
CARBURETOR ASSEMBLY, Lower |
