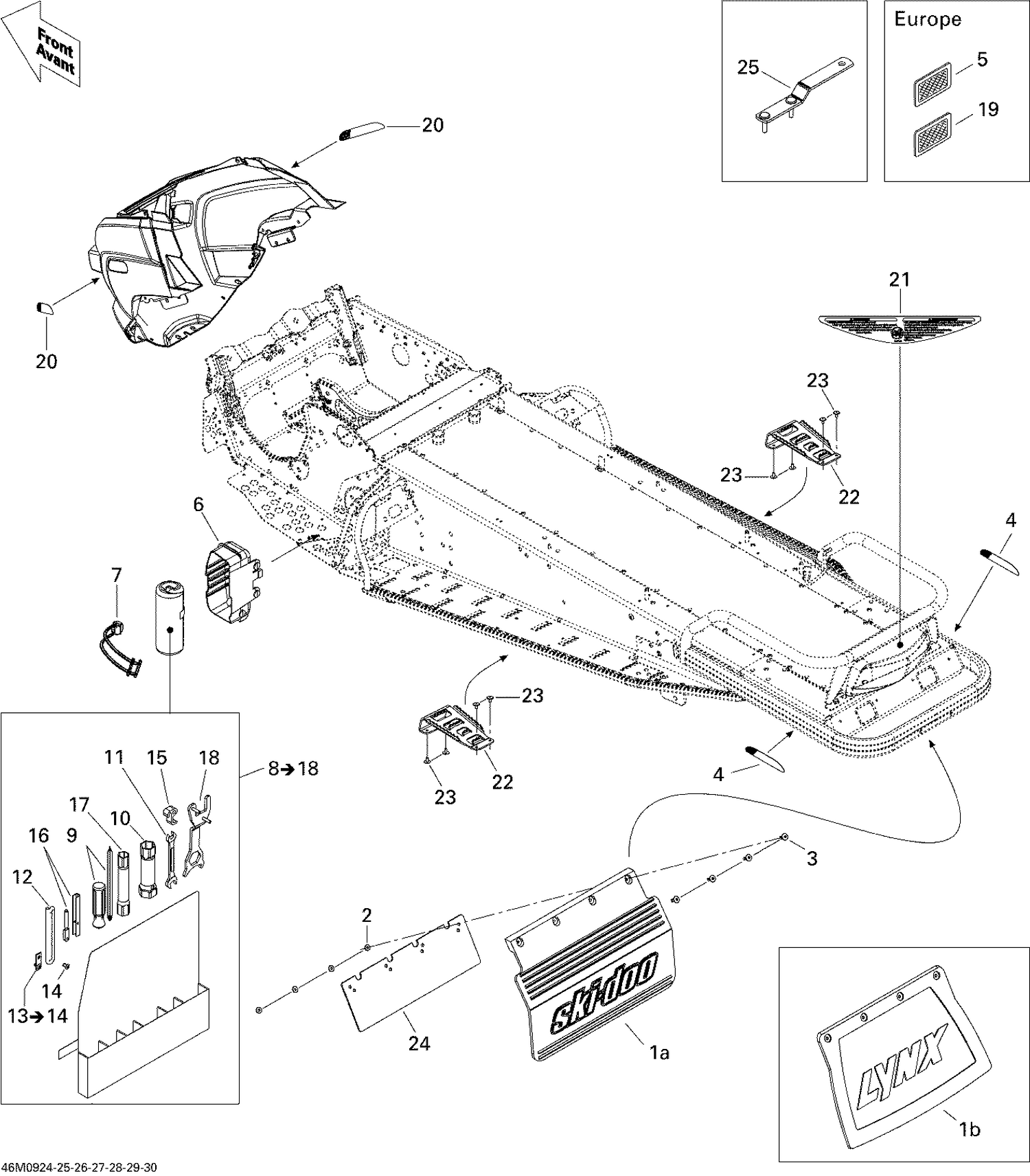

| Ref | Part Number | Description |
|---|
| 1a |
XXX |
Not Available As Spare Parts |
| 1b |
520000600 |
Snow Guard |
| 2 |
517225900 |
Flat Washer |
| 3 |
293150100 |
Pop Rivet 3/16 |
| 4 |
520000525 |
REFLECTOR - Call your local BRP dealership |
| 5 |
520000271 |
Reflector, Amber |
| 6 |
520000322 |
TRUNK - Call your local BRP dealership |
| 7 |
520000528 |
Latch |
| 9 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 10 |
529014800 |
Socket Wrench 21/26 mm |
| 11 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 12 |
412500200 |
Starter Rope 2200 mm, Meter |
| 14 |
390402200 |
Pop Rivet 3/16 |
| 15 |
529000060 |
Starter Grip This part replaces 529019400. |
| 16 |
529035501 |
Spacing Tool |
| 17 |
Not |
Available As Spare Part - Socket Wrench 16/18 mm |
| 18 |
520000721 |
WRENCH - Call your local BRP dealership |
| 19 |
415037900 |
Reflector, White |
| 20 |
520000525 |
REFLECTOR - Call your local BRP dealership |
| 21 |
520000611 |
SECURITY LABEL - Call your local BRP dealership |
| 24 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
