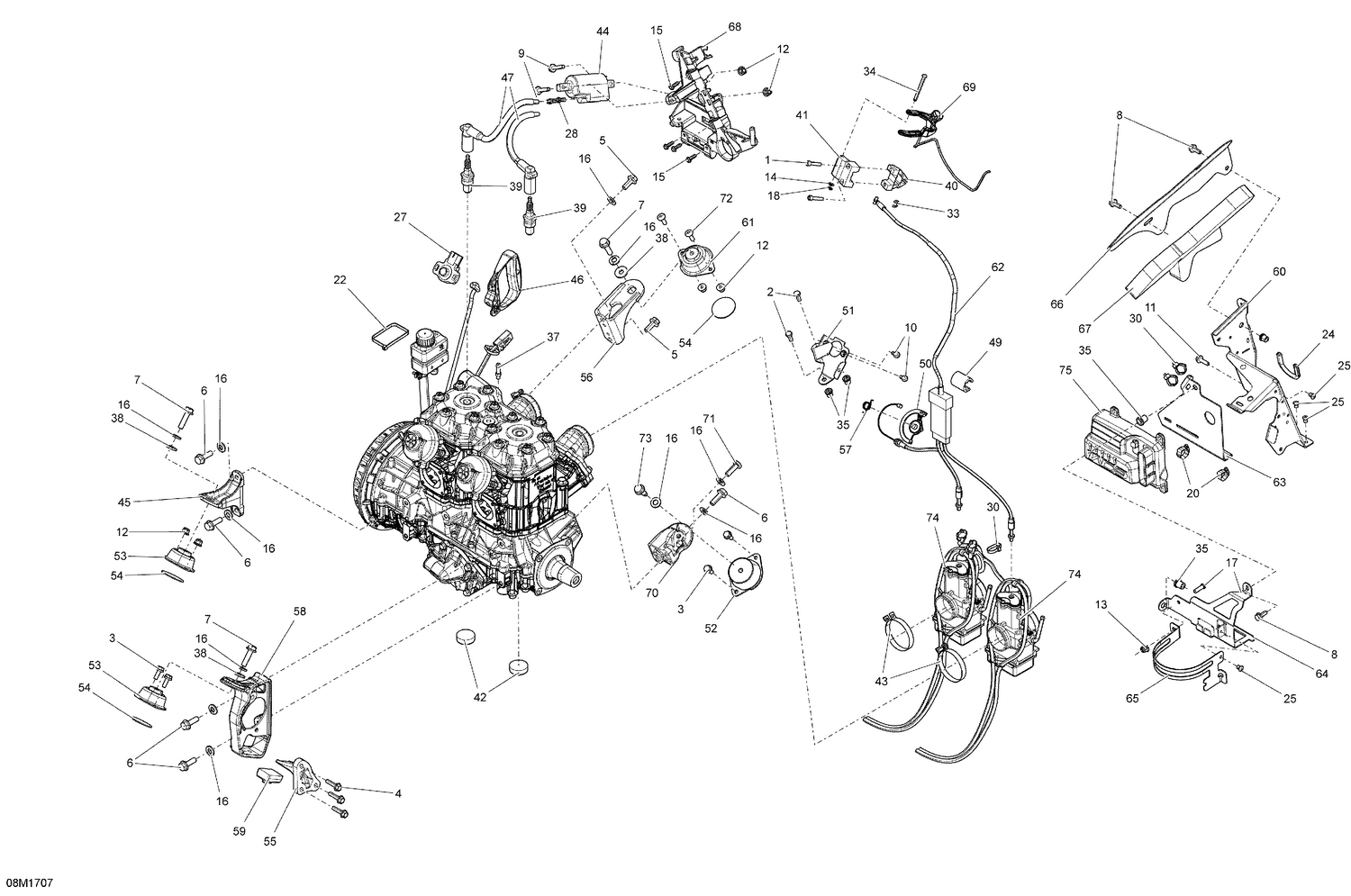

| Ref | Part Number | Description |
|---|
| 1 |
205052544 |
Socket Screw M5 X 25 |
| 2 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 3 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 4 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 5 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 6 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 7 |
207583086 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 8 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 9 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 10 |
208651241 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 11 |
210262050 |
Hexagonal Head Screw |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 13 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 14 |
234051600 |
Flat Washer M5, Stainless |
| 15 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 16 |
250200146 |
Conical Spring Washer M8 |
| 17 |
250300027 |
Clinch Stud M6 X 20 |
| 18 |
293370050 |
Circlip |
| 20 |
293650172 |
Tridon Gear Clamp |
| 22 |
293750008 |
Tie Wrap 368 mm |
| 24 |
219704405 |
TRIM 30000MM LONG - Call your local BRP dealership |
| 25 |
390909200 |
Avex Rivet |
| 27 |
404162079 |
Sensor Ass'y |
| 28 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 30 |
414115200 |
Tie-Rap 180 mm |
| 33 |
414274500 |
Circlip |
| 34 |
414438700 |
Lever Pin |
| 35 |
293450275 |
Insert |
| 37 |
420924724 |
Hose Nipple |
| 38 |
503183200 |
Yellow, Washer |
| 39 |
512059552 |
Spark Plug NGK BR9ECS-5 |
| 40 |
512059537 |
Lower Housing |
| 41 |
512059538 |
UPPER HOUSING - Call your local BRP dealership |
| 42 |
512061204 |
Stopper |
| 43 |
512059835 |
Gemi Clamp |
| 44 |
512059968 |
Ignition Coil |
| 45 |
512060108 |
FRONT SUPPORT, MAG - Call your local BRP dealership |
| 46 |
512060136 |
Starter Grip |
| 47 |
512060291 |
Cable |
| 49 |
512060313 |
Protector |
| 50 |
512060335 |
CAP CAM - Call your local BRP dealership |
| 51 |
512060336 |
TPS SUPPORT - Call your local BRP dealership |
| 52 |
512060360 |
Rubber Mount |
| 53 |
512060385 |
Rubber Mount |
| 54 |
512060410 |
RUBBER WASHER - Call your local BRP dealership |
| 55 |
512060576 |
Stopper Support |
| 56 |
512060568 |
REAR ENGINE SUPPORT, MAG - Call your local BRP dealership |
| 57 |
512060638 |
CAM SPRING - Call your local BRP dealership |
| 58 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699. |
| 59 |
512060766 |
Stopper |
| 60 |
512060770 |
GRIP SUPPORT - Call your local BRP dealership |
| 61 |
512060772 |
RUBBER MOUNT - Call your local BRP dealership |
| 62 |
512060895 |
Throttle Cable |
| 63 |
512060904 |
ECM SUPPORT - Call your local BRP dealership |
| 64 |
512060905 |
SUPPORT - Call your local BRP dealership |
| 65 |
512060916 |
STRAP - Call your local BRP dealership |
| 66 |
512060917 |
NOISE SHIELD - Call your local BRP dealership |
| 67 |
512060918 |
NOISE FOAM - Call your local BRP dealership |
| 68 |
512060925 |
COILS SUPPORT - Call your local BRP dealership |
| 69 |
512060960 |
Handle Ass'y |
| 70 |
512061159 |
REAR SUPPORT, PTO - Call your local BRP dealership |
| 71 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 72 |
250000770 |
Hex. Socket Screw M6 X 20 This part replaces 250000335. |
| 73 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 |
| 74 |
403138819 |
CARBURATOR, TMX39-1Z1 - Call your local BRP dealership |
