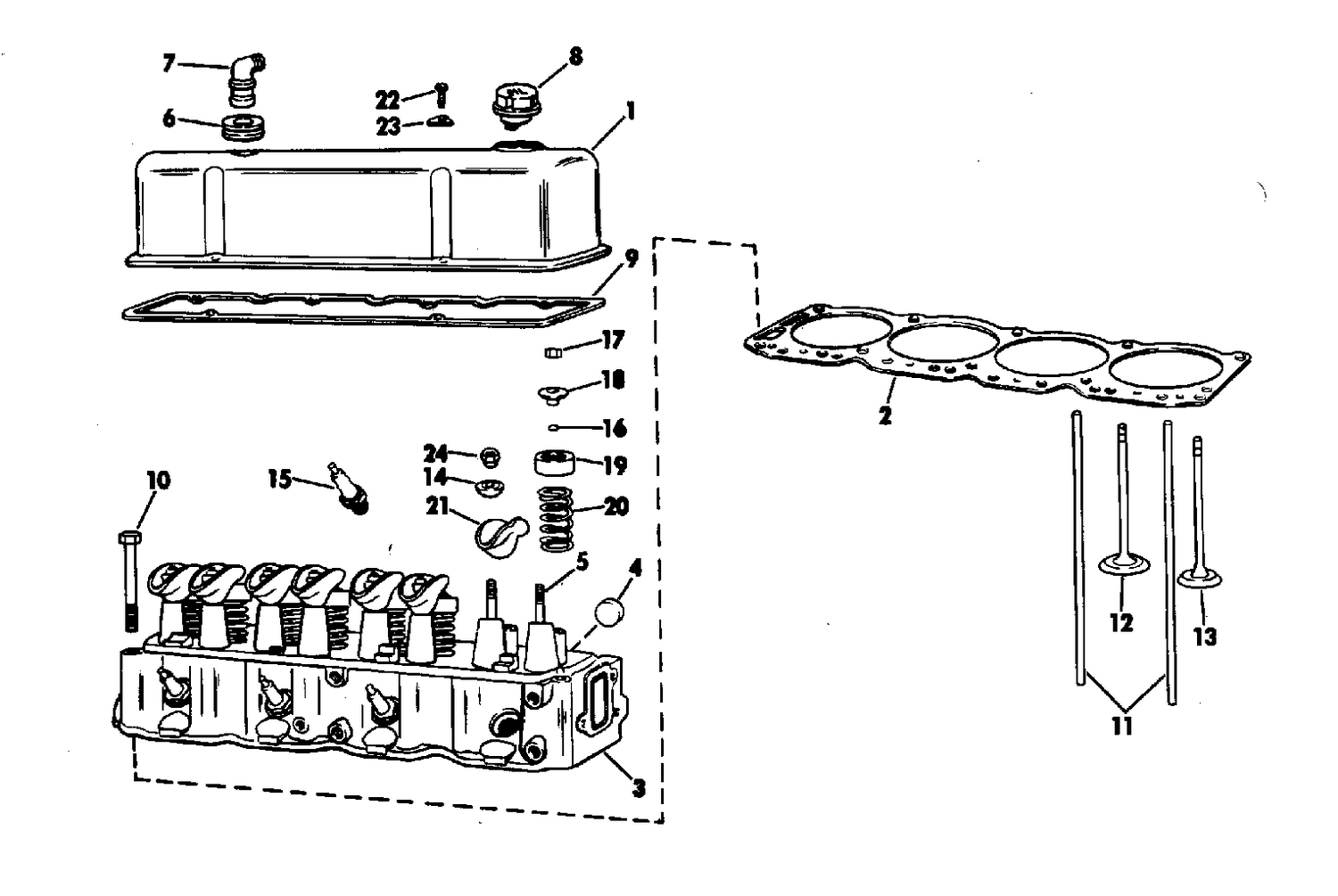

| Ref | Part Number | Description |
|---|
| 1 |
0316439 |
VALVE COVER |
| 2 |
0311210 |
GASKER, Cylinder head |
| 3 |
0986767 |
CYLINDER HEAD This part replaces 0380344. |
| 4 |
0311378 |
CORE PLUG |
| 5 |
3814692 |
SHANK,Light blue paint |
| 5 |
3815892 |
BLUE PAINT |
| 6 |
0311543 |
GROMMET |
| 7 |
0311545 |
ELBOW |
| 8 |
0379958 |
CAP, Oil filler |
| 9 |
3923468 |
GASKET, Valve cover |
| 10 |
3788417 |
BOLT, Head to crankcase |
| 11 |
3788495 |
PUSH ROD |
| 12 |
3839387 |
VALVE (EXHAUST) |
| 12 |
3840001 |
VALVE, Exhaust, .003" O.S. |
| 12 |
3840002 |
VALVE, Exhaust, .015 O.S. |
| 12 |
3840003 |
VALVE, Exhaust, .030" O.S. |
| 13 |
3819002 |
VALVE, Inlet std. |
| 13 |
3819003 |
VALVE, Inlet, .003" O.S. |
| 13 |
3819004 |
VALVE, Inlet, .015" O.S. |
| 13 |
3819005 |
VALVE, Inlet, .030" O.S. |
| 14 |
3732893 |
BALL UNIT |
| 15 |
0380564 |
SPARK PLUG, AC CR44N |
| 15 |
0380862 |
SPARK PLUG (CHAMPION N-6) |
| 16 |
3835333 |
SEAL |
| 17 |
0838029 |
KEY |
| 18 |
3729363 |
CAP |
| 19 |
3836755 |
SHEILD |
| 20 |
3735381 |
VALVE SPRING & DAMPER |
| 21 |
3788498 |
ARM, Valve rocker |
| 22 |
0180016 |
SCREW |
| 23 |
3877670 |
REINFORCEMENT |
