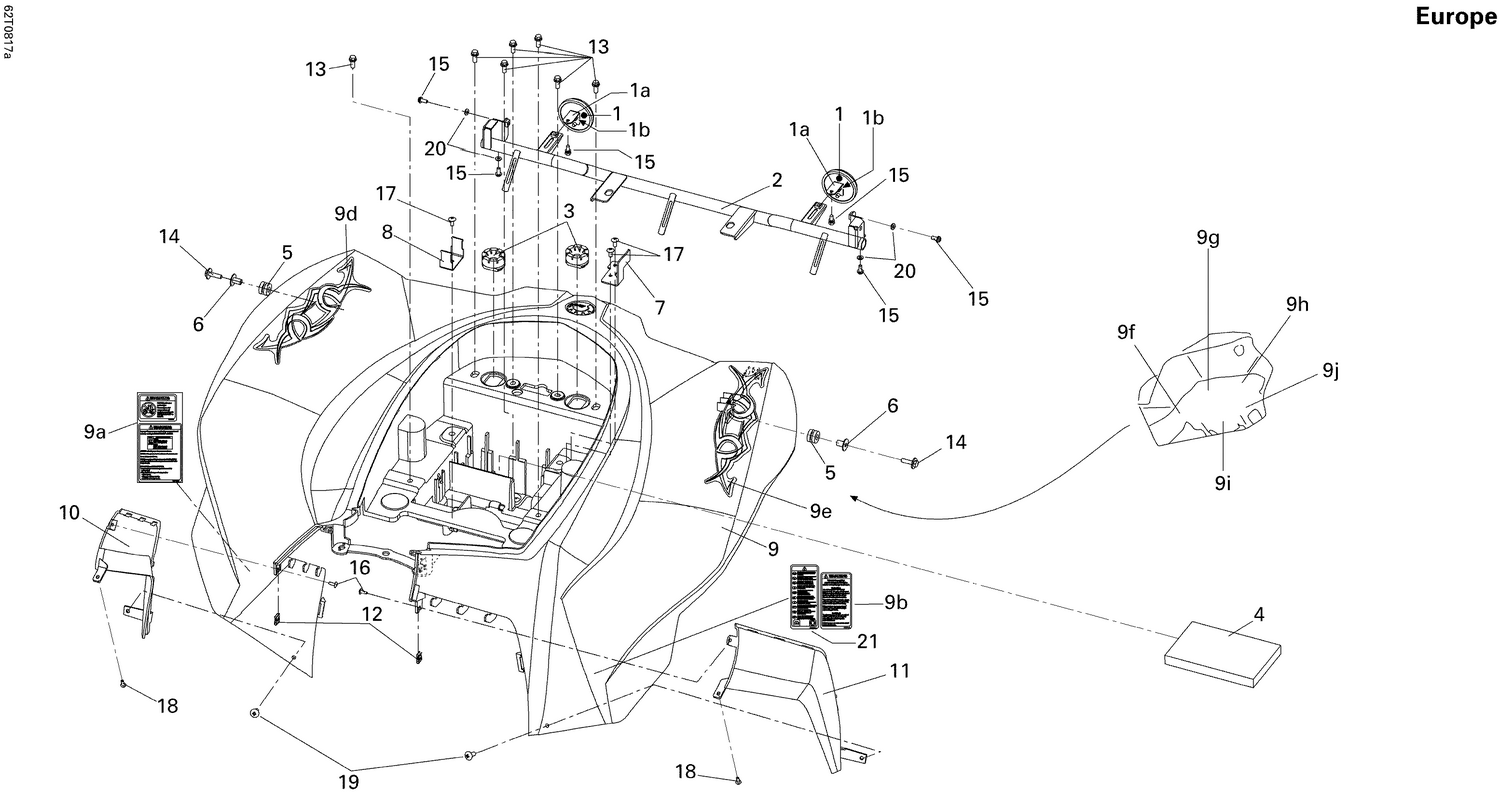

09- Rear Fender Europe
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S33742TAP000 | REFLECTOR - Call your local BRP dealership |
| 1a | S50351RCA000 | Reflector Bracket |
| 1b | S9405006070 | Flanged Nut 6 mm |
| 2 | S50530RCA000 | REAR FENDER SUPPORT - Call your local BRP dealership |
| 3 | S77212RCA000 | Rubber Cushion |
| 4 | S80108RCA000 | Sponge Rubber |
| 5 | S80103X01000 | Rubber Washer |
| 6 | S80104X01000 | Fender Collar |
| 7 | S80107RCA000 | CDI Stay |
| 8 | S80109RB1000 | Stay |
| 9 | S8010GRCA700ZY | REAR FENDER YELLOW - Call your local BRP dealership This part replaces S8010GRCA700. |
| 9a | S8750BRCA000 | Warning Decal B |
| 9b | S87506RCA000 | INTERNATIONAL WARNING DECAL - Call your local BRP dealership |
| 9d | S87133RCA000 | RH REAR FENDER DECAL - Call your local BRP dealership |
| 9e | S87132RCA000 | LH REAR FENDER DECAL - Call your local BRP dealership |
| 9f | S80111RCA000 | Reflective Sheet A |
| 9g | S80112RCA000 | Reflective Sheet B |
| 9h | S80113RCA000 | Reflective Sheet C |
| 9i | S80114RCA000 | Reflective Sheet D |
| 9j | S80115RCA000 | Reflective Sheet E |
| 10 | S83525RCA000JF | RH Side Cover This part replaces S83525RCA000. |
| 11 | S83625RCA000JF | LH Side Cover This part replaces S83625RCA000. |
| 12 | S90302V02000 | Clip Nut |
| 13 | S934040602007 | Washer Bolt |
| 14 | S934040602507 | Washer Bolt |
| 15 | S938910501207 | Flanged Bolt M5 X 12 |
| 16 | S9390334380 | Tapping Screw M4 X 12 |
| 17 | S9390335280 | Tapping Screw M5 X 12 |
| 18 | S9390344380 | Tapping Screw |
| 19 | S90119G03900 | Screw Washer This part replaces S90199G03000. |
| 20 | S9411105800 | Spring Washer 5 mm |
