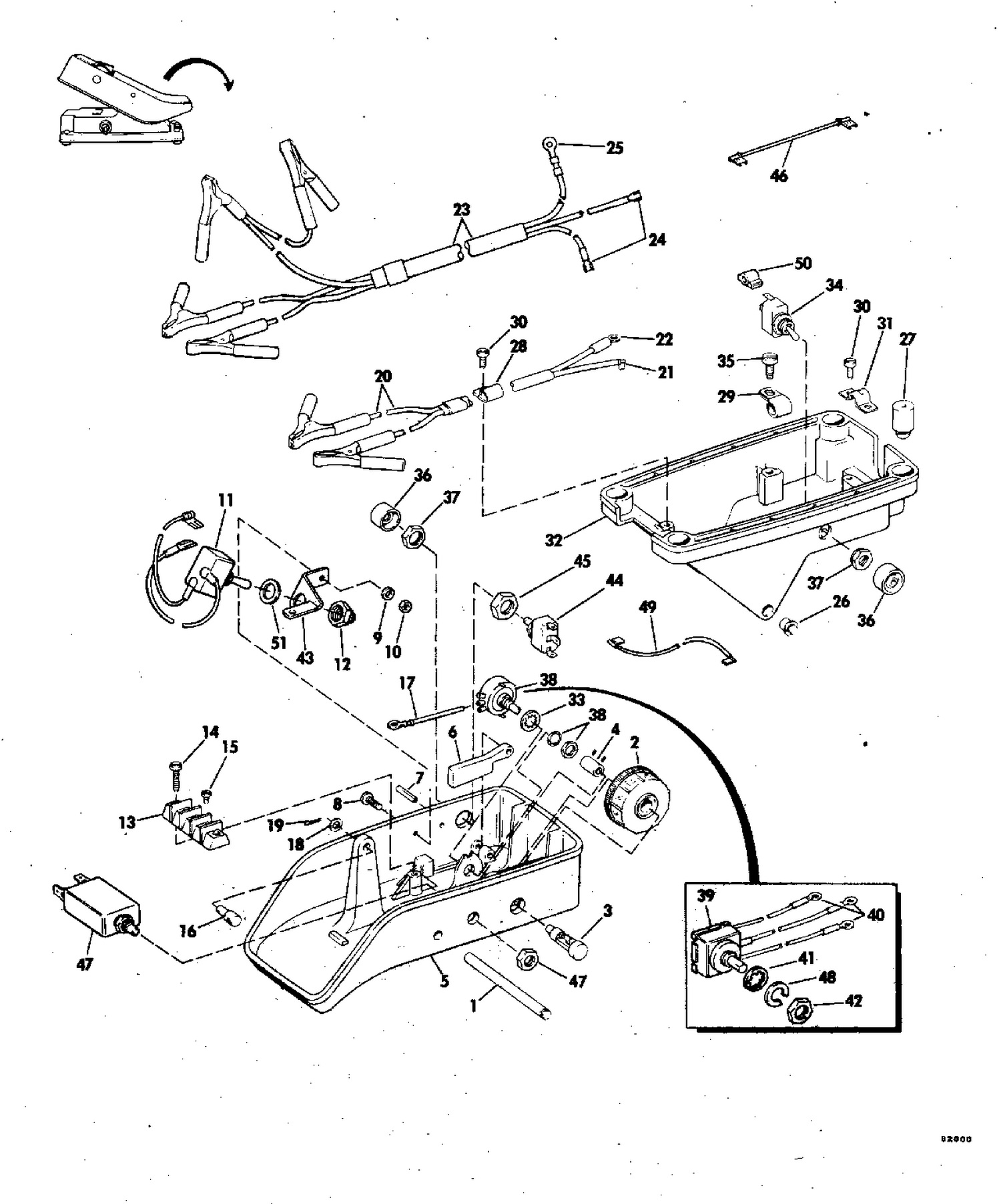

| Ref | Part Number | Description |
|---|
| 1 |
0319524 |
HINGE PIN, Pedal to base |
| 2 |
0319531 |
WHEEL, Speed control |
| 2 |
0320713 |
WGEEL, Speed control, 24 b |
| 3 |
0333109 |
BEARING SHAFT, Control wheel This part replaces 0319526. |
| 4 |
0319659 |
CONNECTOR, Shaft to |
| 4 |
0387145 |
COUPLIN ASSY.,24 v |
| 5 |
0392325 |
PEDAL ASSY. This part replaces 0386531. |
| 6 |
0319519 |
LEVER ON/OFF SWITCH |
| 7 |
0319527 |
ROLL PIN, Lever |
| 8 |
0302227 |
SCREW, On off switch mtg |
| 9 |
0319618 |
LOCKWASHER, Switch mtg |
| 10 |
0302437 |
NUT |
| 11 |
0388237 |
ON OFF SWITCH |
| 12 |
0388236 |
BOOT, On off switch |
| 13 |
0510982 |
TERMINAL BLOCK |
| 14 |
0319613 |
SCREW, Terminal block mounting |
| 15 |
0315003 |
SCREW, Teminal to terinmal block |
| 16 |
0319525 |
PIVOT PIN, Cable to pedal |
| 17 |
0581403 |
LEAD ASSY, Potentiometer to block, 12 V |
| 19 |
0306406 |
COTTER PIN, Pivot pin |
| 23 |
0386928 |
CABLE ASSY., Batt., 24 V |
| 24 |
0204035 |
SPADE TERMINAL, 24 v. |
| 26 |
0319518 |
BUSHING |
| 27 |
0319522 |
BUMPER, Base |
| 28 |
0316669 |
CLAMP |
| 29 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 30 |
0319614 |
SCREW, Bar clamp |
| 31 |
0319668 |
CLAMP, Steering cable |
| 32 |
0319462 |
BASE, Foot control |
| 33 |
0320688 |
L WASHER, Potentiometer, 12v |
| 34 |
0581399 |
MASTER SWITCH ASSY |
| 35 |
0319615 |
SCREW, Clamp |
| 38 |
0387147 |
POTENTIOMETER ASSY, 12 V |
| 39 |
0387140 |
ROTARY SWITCH ASSY 24V |
| 41 |
0320688 |
L WASHER, Potentiometer, 12v |
| 43 |
0322219 |
BRACKET, Switch to pedal |
| 44 |
0386923 |
SPEED SELECTOR SWITCH , 24 v |
| 46 |
0581478 |
LEAD ASSY, Master sw to circ brkr, 24v |
| 47 |
0390629 |
CIRCUIT BREAKER This part replaces 0386931. |
| 48 |
0323613 |
LOCKWASHER, Rotary switch to pedal |
| 49 |
0581477 |
LEAD ASSY, Selector sw to circ brkr, 24v |
| 50 |
0206341 |
INSULATION PAD |
