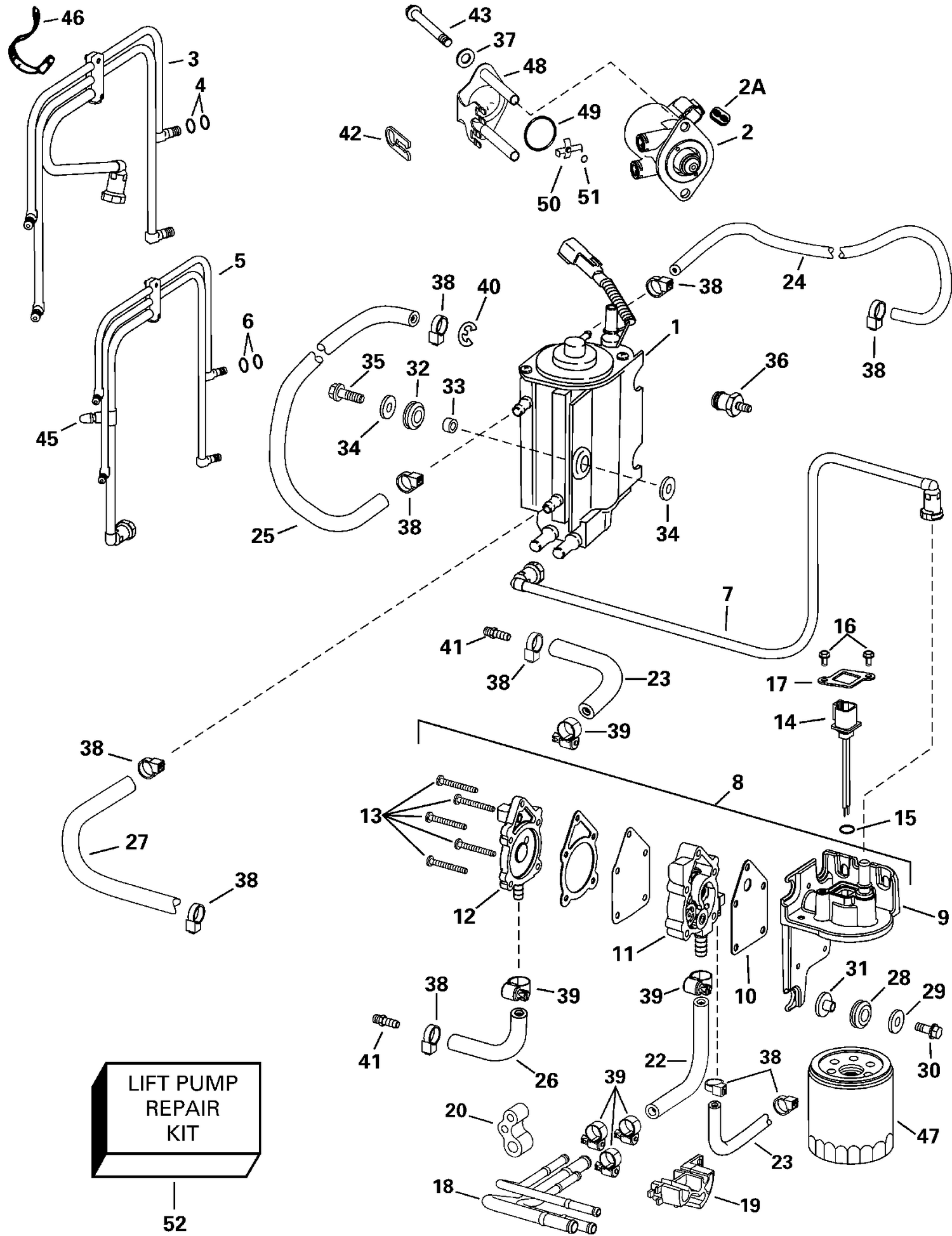

| Ref | Part Number | Description |
|---|
| 1 |
5004428 |
VAPOR SEPARATOR/FUEL PUMP This part replaces 0439347. |
| 2 |
5005195 |
FUEL INJECTOR This part replaces 5004451. |
| 3 |
5000203 |
FUEL MANIFOLD Assy, Supply |
| 5 |
5005404 |
FUEL MANIFOLD Assy, Return This part replaces 5000204. |
| 7 |
0439821 |
FUEL SUPPLY TUBE Assy, Filter to vapor separator |
| 9 |
5001364 |
See Price Book This part replaces 0439633. |
| 10 |
0347061 |
CRANKCASE ASSEMBLY This part replaces 0344733. |
| 13 |
0330184 |
VIS, montage pompe |
| 22 |
0344791 |
HOSE, Inlet tube to lift pump |
| 25 |
0344794 |
HOSE, Water to EMM from vapor sep |
| 26 |
0344795 |
HOSE, Lift pump pulse, lower |
| 27 |
0333381 |
HOSE, Connector to filter |
| 33 |
0335328 |
SCREW, Connector |
| 38 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 39 |
0980863 |
CLAMP |
| 40 |
0510487 |
RETAINING RING |
| 47 |
5012363 |
Filter Ay This part replaces 0502906. |
