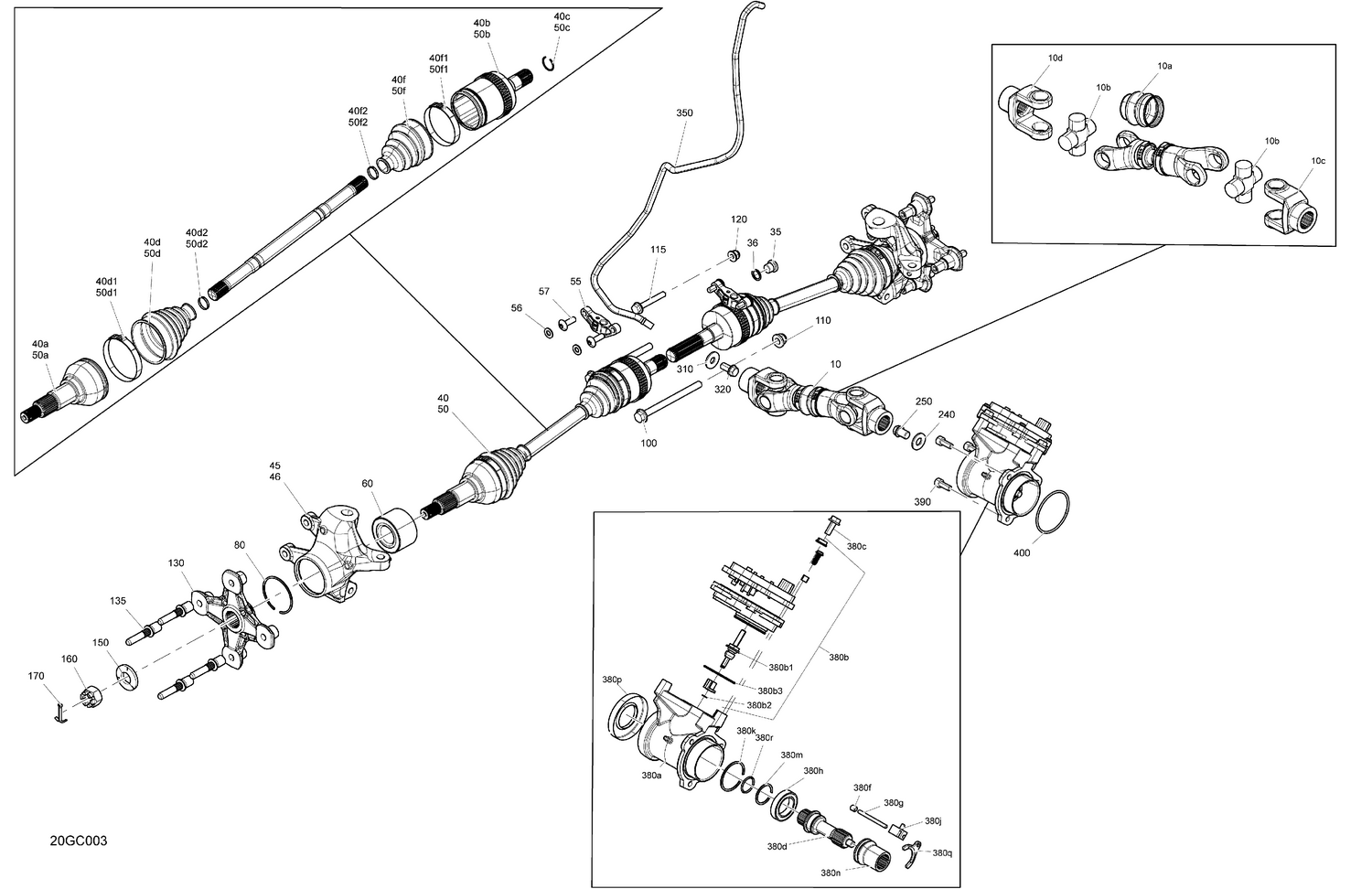

04- Drive - Front - Common Parts
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10b | 715900435 | U-Joint Cross Kit |
| 10c | 715900497 | Fixed Yoke Joint |
| 10d | 715900498 | Yoke Joint |
| 35 | 705500504 | Fill Level Plug |
| 36 | 705500506 | Copper Washer |
| 40a | 705401344 | CV Joint |
| 40b | 715900602 | RH Plunging Joint |
| 40c | 705401349 | Circlip Joint |
| 40d1 | 715900282 | Oetiker Clamp |
| 40d2 | 715900283 | Oetiker Clamp, Small |
| 40f1 | 715900284 | Oetiker Clamp, Large |
| 40f2 | 715900261 | Oetiker Clamp, Small |
| 45 | 705403307 | LH Knuckle This part replaces 705403197. |
| 46 | 705403308 | RH Knuckle This part replaces 705403199. |
| 50a | 705401344 | CV Joint |
| 50b | 715900603 | LH Plunging Joint |
| 50c | 705401349 | Circlip Joint |
| 50d1 | 715900282 | Oetiker Clamp |
| 50d2 | 715900283 | Oetiker Clamp, Small |
| 50f1 | 715900284 | Oetiker Clamp, Large |
| 50f2 | 715900261 | Oetiker Clamp, Small |
| 55 | 705402088 | Sensor Support |
| 56 | 234081410 | Flat Washer 8 mm |
| 57 | 250000874 | Torx Truss M8 X 25 |
| 60 | 293350150 | Ball Bearing |
| 80 | 293370019 | Circlip |
| 100 | 230602546 | Hex. Flange Screw M10 X 125 |
| 110 | 233201436 | Hex. Flange Elastic Nut M10 |
| 115 | 207685544 | Hex. Flange Screw M8 X 55 |
| 120 | 233281414 | Hex. Flange Elastic Nut M8 |
| 130 | 705503257 | Wheel Hub |
| 135 | 250300055 | Wheel Stud M10 X 1.25 |
| 150 | 250200171 | Conical Spring Washer M18 |
| 160 | 232291413 | Hex. Flange Castellated Nut M18 |
| 170 | 250400071 | Cotter Pin |
| 240 | 250200102 | Flat Washer M12 |
| 250 | 250001039 | Hex Flange Screw M12 X 16 |
| 310 | 250200014 | Flat Washer M10 |
| 320 | 250001046 | Hex Flange Screw M10 X 20 S.Grip |
| 350 | 219704389 | Polyurethane Hose 4000MM Long |
| 380a | 705402360 | Machined Housing |
| 380b1 | 705400274 | Fork |
| 380b2 | 293370042 | Circlip |
| 380b3 | 293300117 | O-Ring |
| 380c | 250000137 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 380d | 705401509 | Idler Shaft Gear |
| 380f | 206580890 | Pressure Screw M8 X 8 |
| 380g | 250400025 | Dowell Pin |
| 380h | 705400249 | Ball Bearing |
| 380k | 293370029 | Circlip |
| 380m | 293370030 | Circlip |
| 380n | 705400389 | Coupling Sleeve |
| 380p | 293250348 | Oil Seal |
| 380q | 705401553 | Shifter Lever Plate |
| 380r | 293300179 | O-Ring |
| 390 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip |
