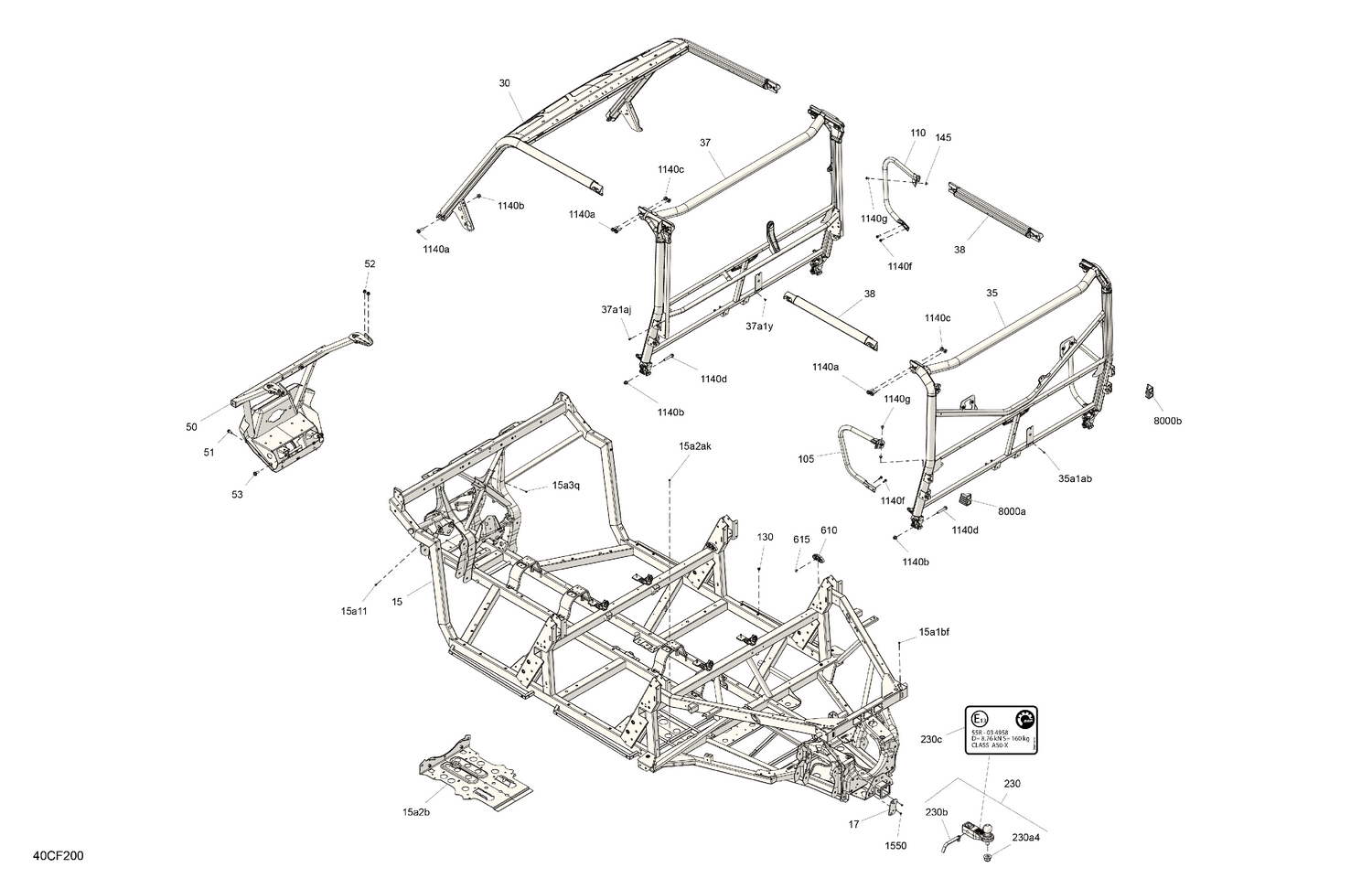

| Ref | Part Number | Description |
|---|
| 15 |
715011329 |
Chasis |
| 15a11 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 15a1bf |
293150293 |
Pop Rivet 3/16 X ,425 |
| 15a2ak |
293150293 |
Pop Rivet 3/16 X ,425 |
| 15a2b |
705213496 |
Front Skid Plate |
| 15a3q |
293150293 |
Pop Rivet 3/16 X ,425 |
| 17 |
705212825 |
Rear Chassis Reinforcement |
| 30 |
715011276 |
Deep Black, Front Cage Ass'y |
| 35 |
715011282 |
Deep Black, Rear Cage Ass'y |
| 35a1ab |
293150293 |
Pop Rivet 3/16 X ,425 |
| 37a1aj |
293150293 |
Pop Rivet 3/16 X ,425 |
| 37a1y |
293150293 |
Pop Rivet 3/16 X ,425 |
| 38 |
705209848 |
Deep Black, Cage Extension |
| 50 |
705211301 |
Deep Black, Front Bumper |
| 51 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 53 |
207502546 |
Hex. Flange Screw M10 X 25 |
| 105 |
705210929 |
Deep Black, LH Rear Guard |
| 110 |
705210930 |
Deep Black, RH Guard |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 145 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 230a4 |
250100104 |
Elastic Flange Nut M20 |
| 230b |
705204490 |
Hitch Pin |
| 230c |
704910893 |
Hitch Compliance Label |
| 610 |
705208203 |
Spacer |
| 615 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1140a |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1140b |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 1140c |
233201466 |
Flange Elastic Nut M10 |
| 1140d |
207606046 |
Hex. Flange Screw M10 X 6 |
| 1140f |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 1140g |
250000789 |
Torx Truss M6X14 |
| 1550 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 8000a |
707901045 |
LH Cover |
