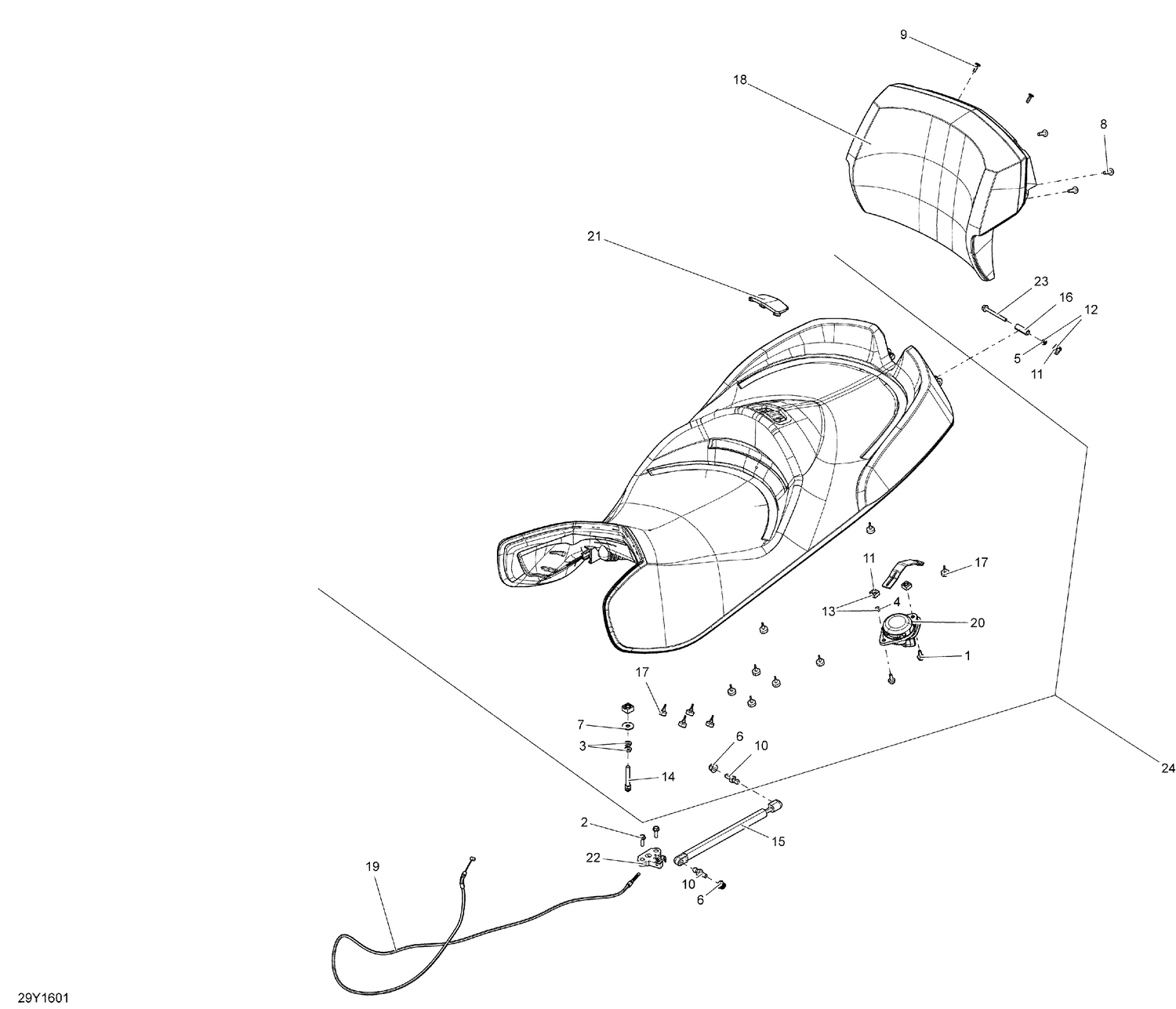

09- Seat
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 210262050 | Hexagonal Head Screw |
| 3 | 232180600 | Hex. Jam Nut M8 |
| 4 | 232561200 | Brass Elastic Stop Nut M6 |
| 5 | 232561600 | Hex. Elastic Stop Nut M6 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7 | 234082410 | Flat Washer 8 mm |
| 8 | 250000488 | Torx Truss Screw M6 X 20 |
| 9 | 250000720 | Torx Screw K50 X 16 |
| 10 | 250300039 | Ball Head Stud |
| 11 | 269500252 | M6 Nut Housing Ass'y |
| 12 | 269500725 | M6 Nut Housing Ass'y |
| 13 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 14 | 705002223 | Lug |
| 15 | 708000658 | Gaz Shock |
| 16 | 708000664 | Spacer |
| 17 | 708000759 | Rubber Stopper |
| 19 | 708001743 | Seat Cable |
| 20 | 710008103 | Passenger Detection Switch This part replaces 710001346. |
| 21 | 708001633 | Black Cap |
| 22 | 705007379 | Latch |
| 23 | 250000778 | Hex. Flange Screw M6 X 60 |
