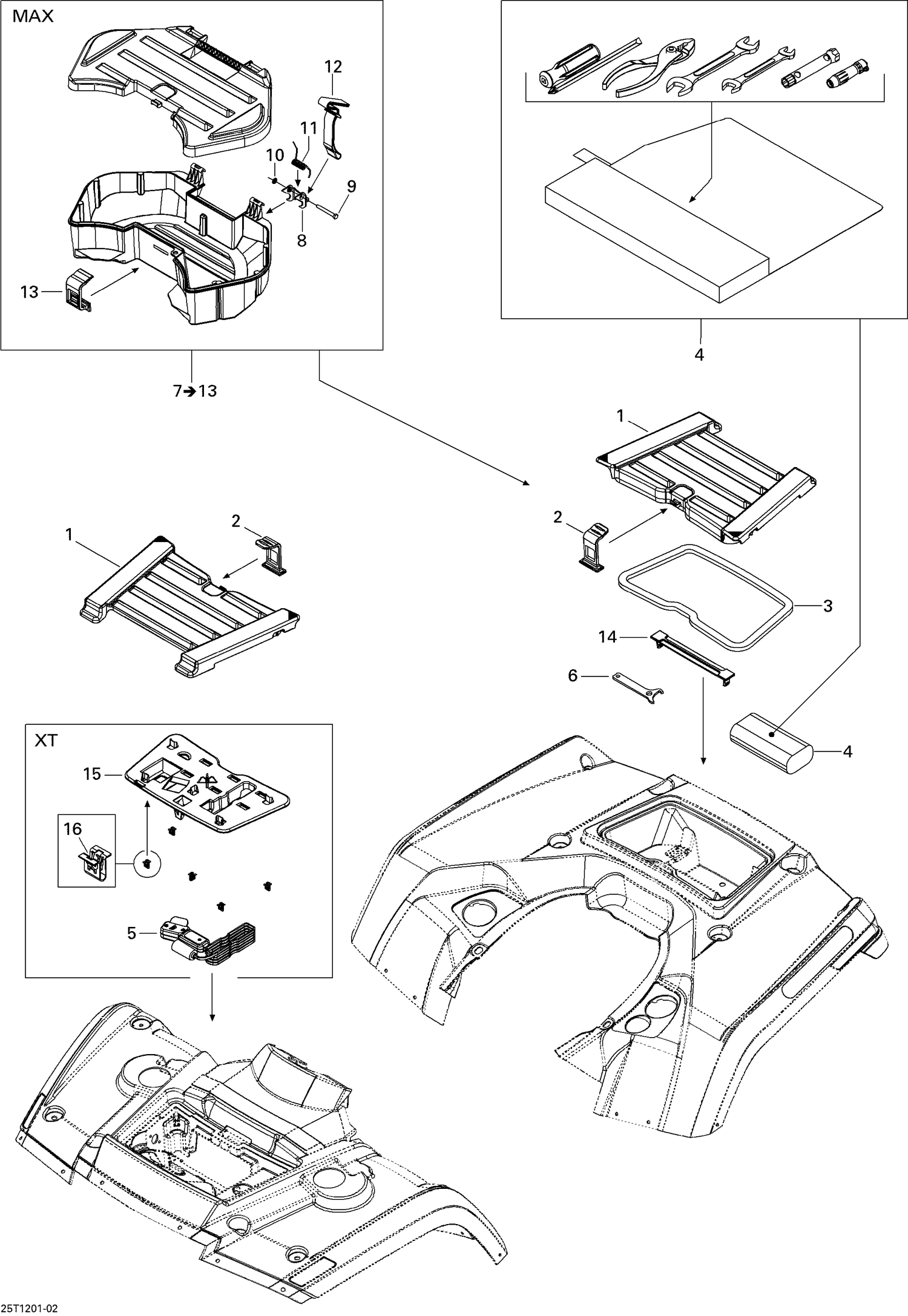

09- Front and Rear Trays
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705003492 | Storage Cover |
| 2 | 708200120 | Cover Latch |
| 3 | 293250192 | Neoprene Seal |
| 4 | 704700162 | Tool Kit This part replaces 704700148. |
| 6 | 529000035 | Adjustment Wrench |
| 8 | 708200066 | LATCH - Call your local BRP dealership |
| 9 | 207065544 | Hex. Screw M6 X 55 |
| 10 | 732610072 | Push Nut |
| 11 | 708000369 | Spring |
| 12 | 510004495 | BELT - Call your local BRP dealership |
| 13 | 708200120 | Cover Latch |
| 14 | 708200121 | COVER LATCH KIT - Call your local BRP dealership |
