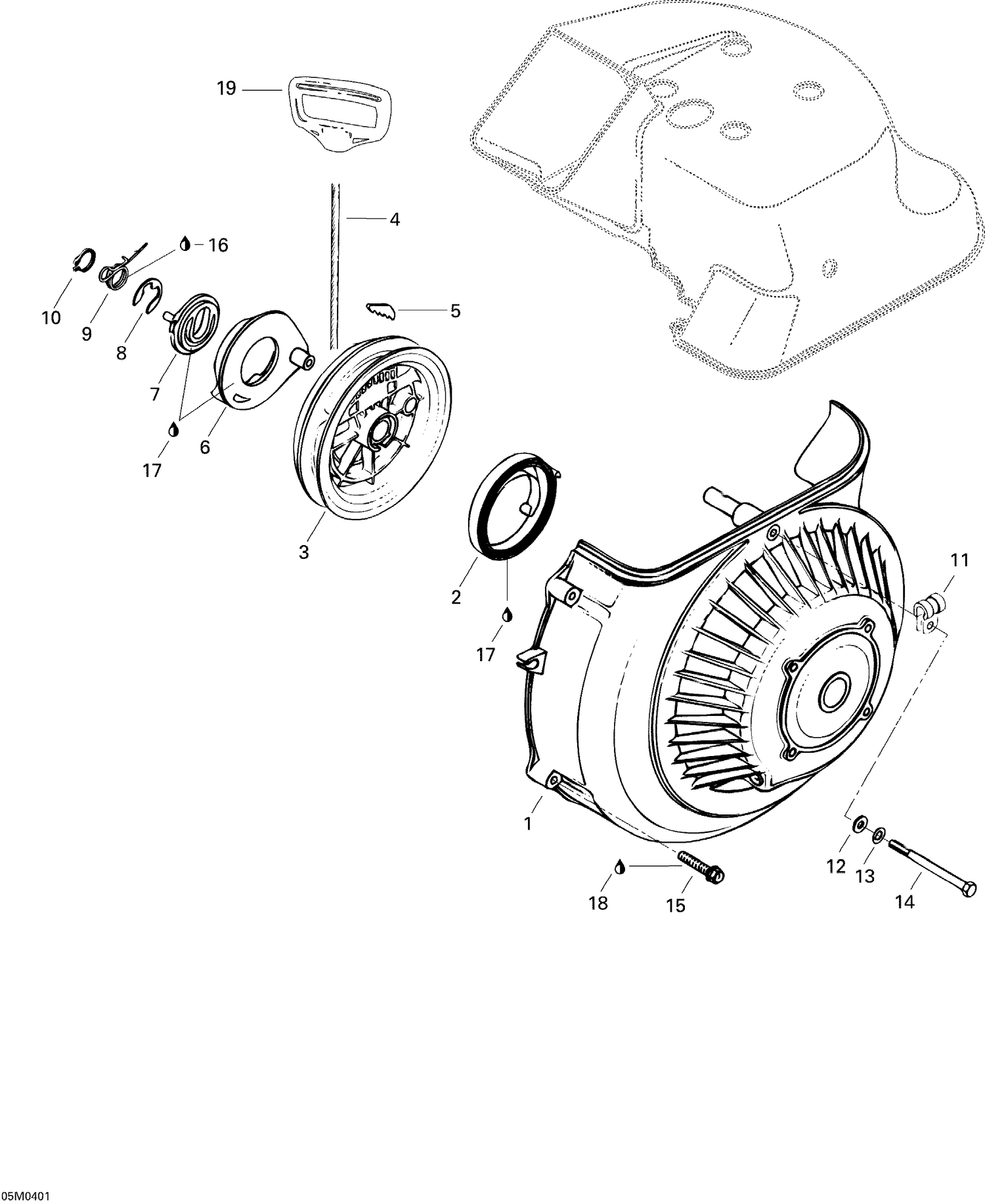

04- Rewind Starter
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420889823 | Demar.Rappel *Starter-Rewind This part replaces 420810287. |
| 2 | 420939115 | Rewind Spring |
| 3 | 420852283 | Rope Sheave |
| 4 | 219704403 | Was 412500100 Rope-Starter |
| 5 | 420852070 | Key Clamp |
| 6 | 420852296 | Pawl |
| 7 | 420852302 | PAWL LOCK - Call your local BRP dealership |
| 8 | 420845300 | CIRCLIP - Call your local BRP dealership |
| 9 | 420938986 | Pawl Spring |
| 10 | 420945770 | LOCK RING - Call your local BRP dealership |
| 11 | 420851240 | GEAR CLAMP - Call your local BRP dealership |
| 12 | 224061121 | Flat Washer |
| 13 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 14 | 222067544 | Hex. Screw M6 x 75 |
| 15 | 420640411 | TAPPING SCREW M6 X 35 - Call your local BRP dealership |
| 16 | 420297433 | Molykote G-N, 50 g This part replaces 711297433. |
| 17 | 420899763 | Molykote PG 54, 10 g |
| 18 | 293800060 | Loctite 243, 10 ml |
