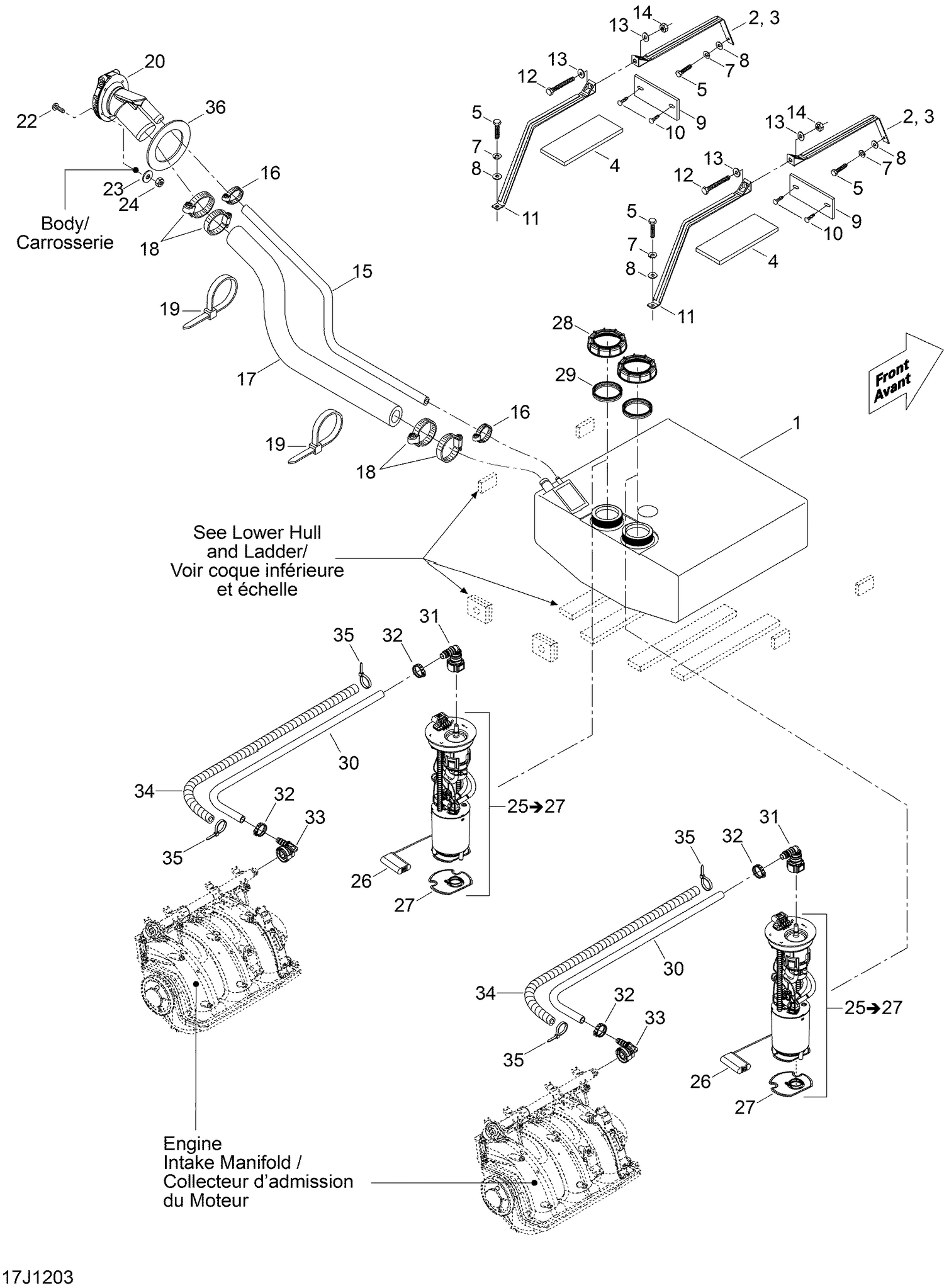

| Ref | Part Number | Description |
|---|
| 1 |
275500817 |
Fuel Tank Ass'y |
| 2 |
204560235 |
FUEL TANK STRAP - Call your local BRP dealership |
| 3 |
293830044 |
PROTECTOR PAD - Call your local BRP dealership |
| 4 |
204560191 |
NEOPRENE PAD - Call your local BRP dealership |
| 5 |
207183060 |
Hex. Screw M8 X 30 |
| 7 |
234181601 |
Lock Washer 8 mm, Stainless |
| 8 |
234082600 |
Flat Washer 8 mm, Stainless |
| 9 |
204060702 |
MUFFLER RUBBER PAD - Call your local BRP dealership |
| 10 |
293730006 |
Black, Dart |
| 11 |
204560270 |
FUEL TANK STRAP - Call your local BRP dealership |
| 12 |
207188060 |
HEX. SCREW M8 X 80 - Call your local BRP dealership |
| 13 |
234082600 |
Flat Washer 8 mm, Stainless |
| 14 |
232581600 |
Hex. Elastic Nut M8 |
| 15 |
204560358 |
HOSE 16 MM - Call your local BRP dealership |
| 16 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 17 |
204560401 |
FILLER NECK HOSE - Call your local BRP dealership |
| 18 |
275500823 |
NORMA CLAMP - Call your local BRP dealership |
| 19 |
414115200 |
Tie-Rap 180 mm |
| 20 |
275500800 |
FILLER NECK - Call your local BRP dealership |
| 22 |
208643560 |
Phillips Screw M4 X 35 |
| 23 |
234040600 |
Flat Washer 4 mm |
| 24 |
232541600 |
Elastic Stop Nut M4 |
| 26 |
275500780 |
Sensor Lever |
| 27 |
270600113 |
Fuel Filter This part replaces 270600108. |
| 28 |
204100257 |
SPECIAL NUT M150 - Call your local BRP dealership |
| 29 |
293250173 |
Gasket |
| 30 |
204560396 |
HOSE 5/16 - Call your local BRP dealership |
| 31 |
275500700 |
Quick Attach 90° |
| 32 |
293650084 |
Norma Clamp |
| 33 |
293710105 |
Elbow Fitting 90° |
| 34 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 35 |
293750002 |
Tie Wrap 142 mm |
