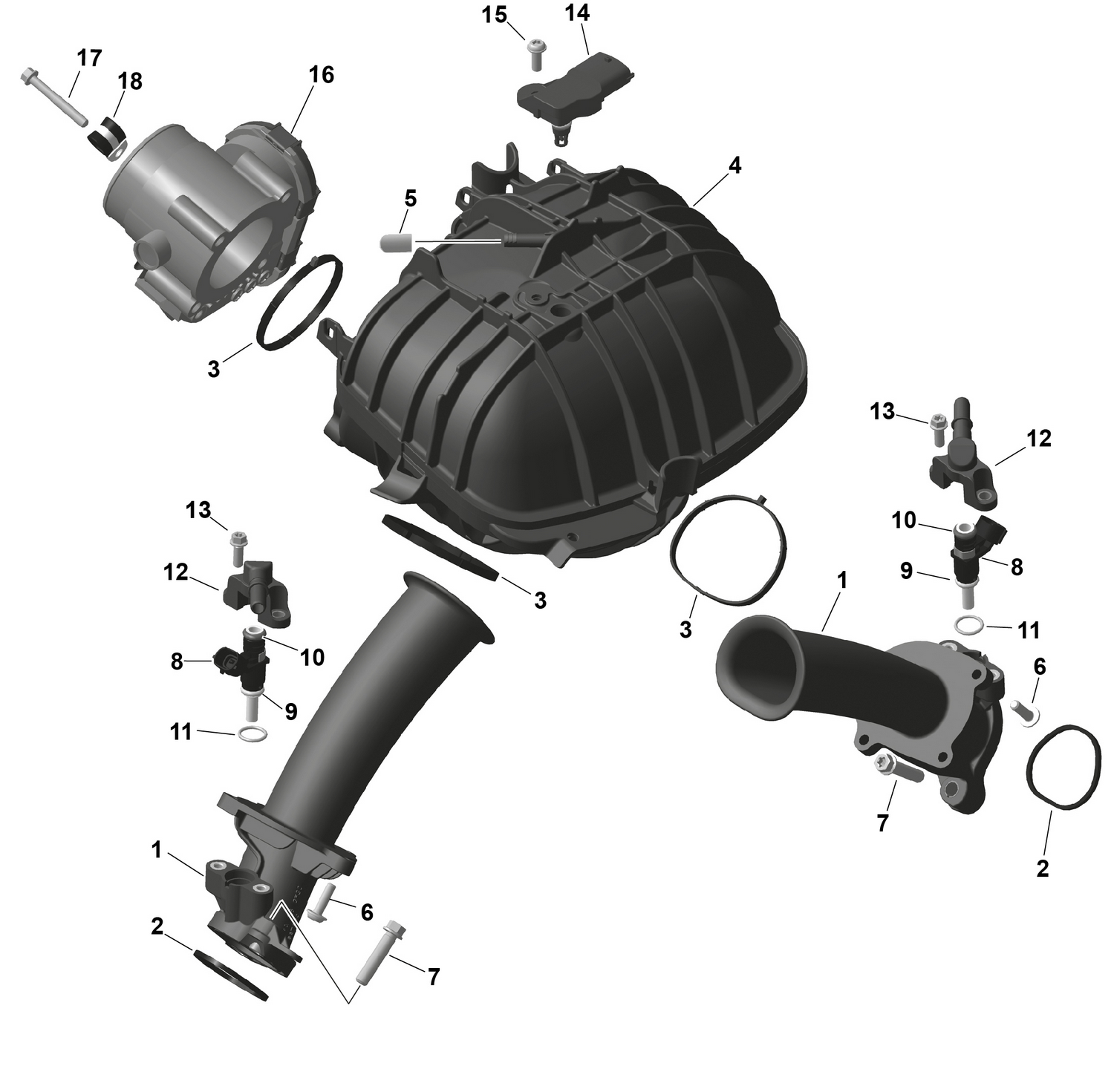

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667830 | Air Intake Manifold |
| 5 | 420201910 | Cap |
| 6 | 420841103 | Torx Flange Screw M6 X 20 |
| 7 | 420641188 | Torx Flange Screw M8 X 35 This part replaces 420440867. |
| 8 | 420874887 | Injection Valve Ass'y This part replaces 420874842. |
| 9 | 420431890 | O-Ring |
| 10 | 420631220 | O-Ring |
| 12 | 420874902 | Fuel Rail |
| 13 | 420440162 | Torx Flange Screw M6 X 16 |
| 14 | 420874658 | Pressure And Temperature Sensor |
| 15 | 420641588 | Torx Flange Screw M6 X 16 |
| 16 | 420892596 | Throttle Body Socket Ass'y |
| 17 | 420440324 | Torx Flange Screw M6 X 45 |
