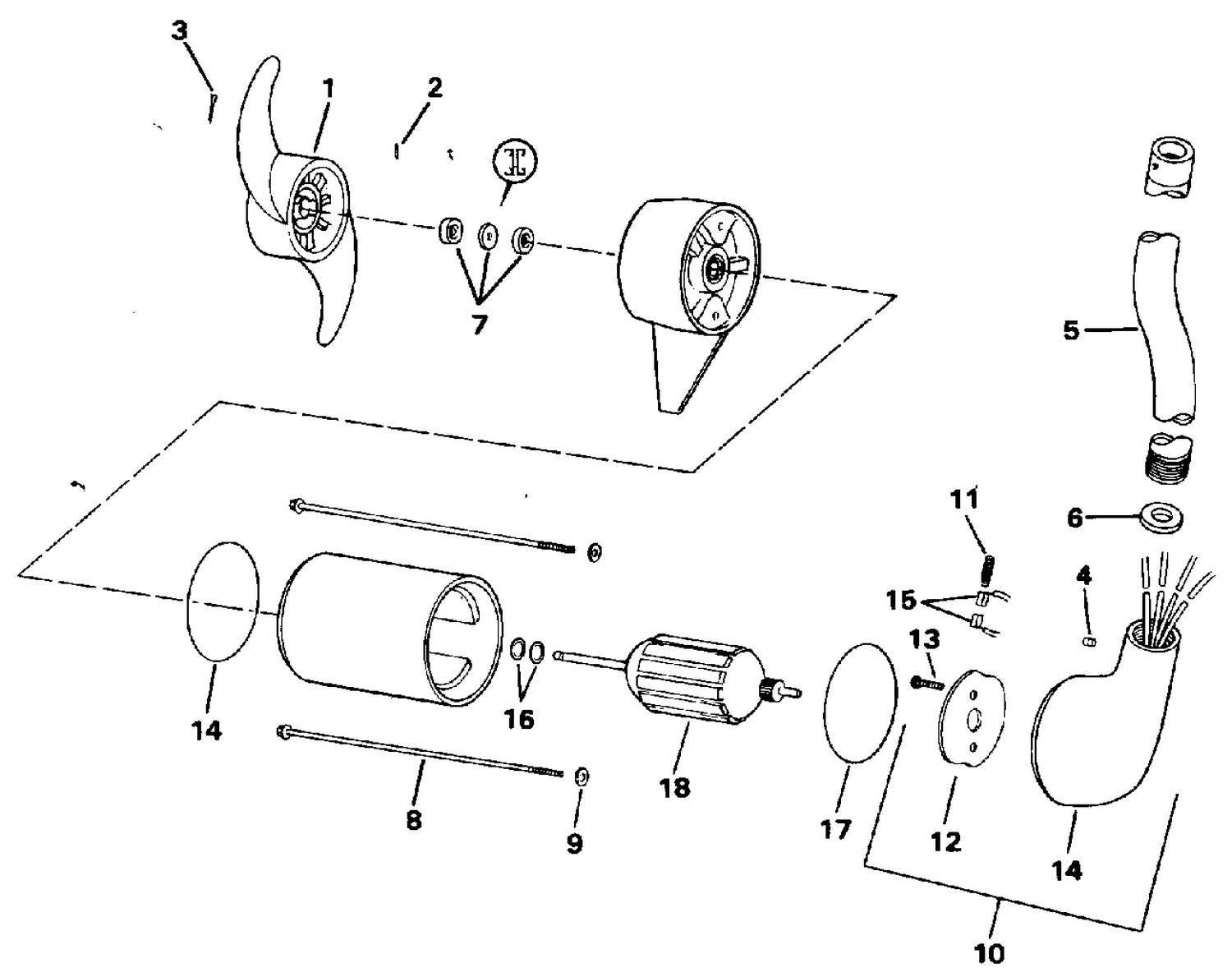

MOTOR GROUP
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0115827 | PROPELLER |
| 2 | 0333513 | DRIVE IN, Propeller |
| 3 | 0115999 | COTTER PIN, Propeller |
| 4 | 0321223 | SET SCREW |
| 5 | 0115830 | MOTOR TUBE |
| 5 | 0116031 | MOTOR TUBE (HBFL2G) 42 in. |
| 6 | 0320681 | SEAL, Adapter to motor tube |
| 7 | 0115928 | SEAL PACKAGE ASSY., Drive end |
| 8 | 0115926 | THRU-BLOT PACKAGE |
| 9 | 0115947 | O-RING |
| 10 | 0116016 | ADAPTER ASSY. |
| 11 | 0115920 | SPRING SET, Brush |
| 12 | 0115922 | BRUSH HOLDER (Incl. mounting screw) |
| 13 | 0115923 | SCREW, Brush holder |
| 14 | 0115932 | HEAD ASSY., Commutator end (incl. resistor coil) |
| 15 | 0115921 | REPLACEMENT BRUSH SET |
| 16 | 0115927 | THRUST WASHER |
| 17 | 0115924 | O-RING PACKAGE |
| 0115829 | 0115829 | MOTOR ASSY. |
| 0116046 | 0116046 | MOTOR ASSY. (HBFL2K) |
