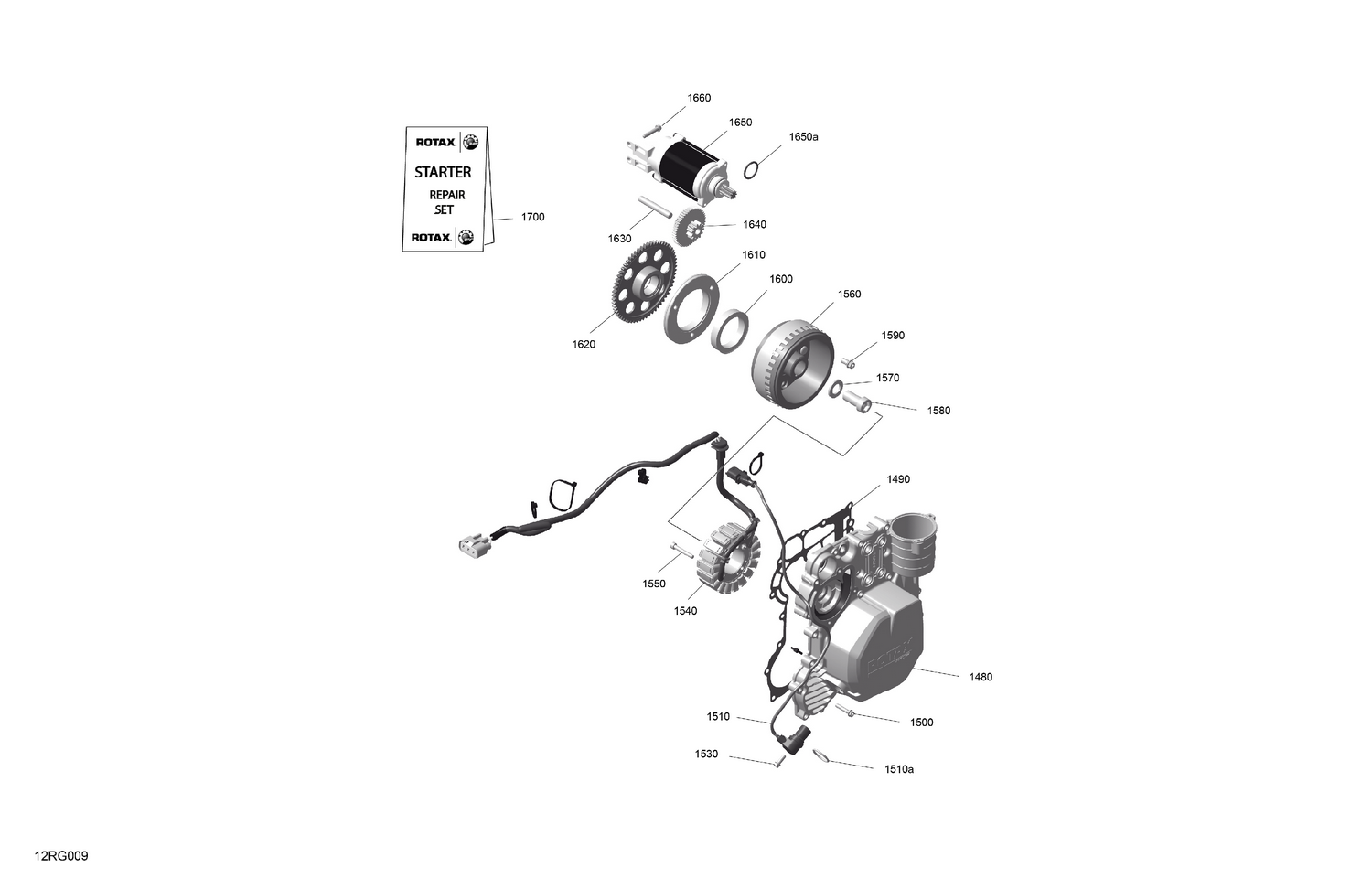

01- ROTAX - Magneto and Electric Starter
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1480 | 420911055 | Ignition Cover |
| 1490 | 420431640 | Gasket |
| 1500 | 420440647 | Flanged Torx Screw M6 X 30 |
| 1510a | 420431580 | O-Ring 17,17X1,78 FPM 70 |
| 1530 | 420440162 | Flanged Torx Screw M6 X 16 |
| 1540 | 420685629 | Stator Plate |
| 1550 | 420241956 | Allen Screw M6 X 40 |
| 1560 | 420686198 | Magneto Flywheel |
| 1570 | 420627270 | Shim A17 DIN 125 |
| 1580 | 420241549 | Socket Head Screw M16 X 35 |
| 1590 | 420440854 | Hex./Torx Flange Screw M8 x 16 |
| 1600 | 420659113 | Sprag Clutch 51,710x68,377x13 |
| 1610 | 420659263 | Sparg Clutch Housing |
| 1620 | 420434238 | Free Wheel Gear 64 T Ass'y |
| 1630 | 420229475 | Needle Pin ISO 8734-10X65-B-ST |
| 1640 | 420634741 | Starter Double Gear (11/49 T) |
| 1650a | 420250145 | O-Ring |
| 1660 | 420440647 | Flanged Torx Screw M6 X 30 |
