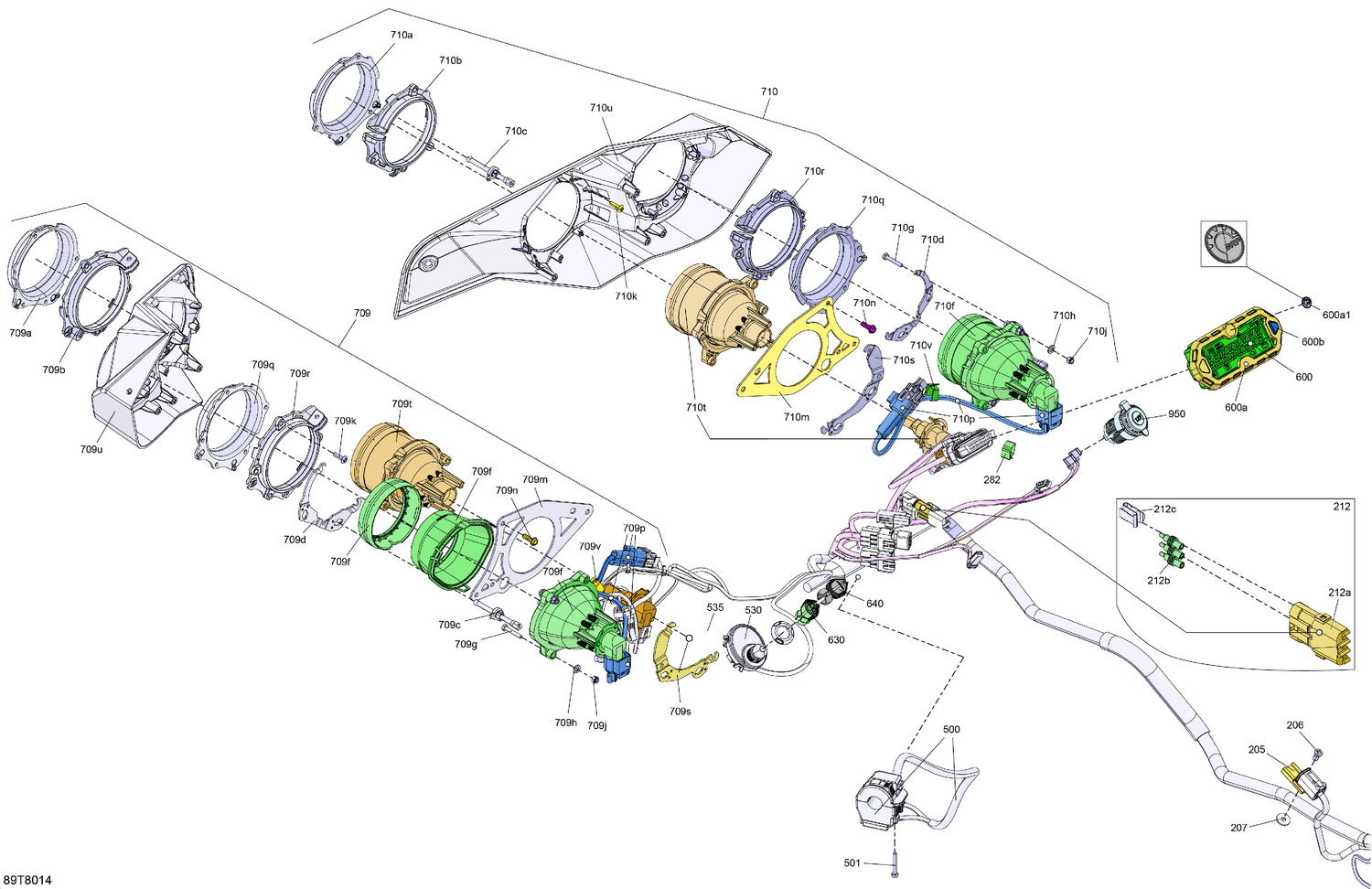

08- Electric - Front Section
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 212a | 278000281 | Female Terminal Housing, 3 Circuits |
| 212b | 278000216 | Wire Seal |
| 212c | 710000992 | Clip |
| 282 | 414227300 | Clip |
| 500 | 710005070 | Multi-Function Handle |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 530 | 515178840 | Terminal Dess One-Wire |
| 535 | 278002963 | Safety Nut (DESS Switch) |
| 600a1 | 516010651 | BRP Logo 13 MM |
| 600b | 715900265 | Button |
| 709a | 415129249 | Halogen Bulb |
| 709b | 710001084 | LH Low Rear Housing |
| 709c | 710001147 | Setting Screw |
| 709d | 710006353 | LH Low Light Support |
| 709f | 710002524 | Low Beam Ass'y |
| 709g | 207142544 | Hex. Screw M4 X 25 |
| 709h | 234051410 | Flat Washer M5 |
| 709j | 232541414 | Elastic Stop Nut M4 |
| 709k | 250000723 | Phillips Screw K40 X 16 |
| 709m | 705004309 | Painted Headlamp Support |
| 709n | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 709p | 710005944 | Light Harness |
| 709q | 710001087 | LH High Front Housing |
| 709r | 710001088 | LH High Rear Housing |
| 709s | 710005853 | LH High Light Support |
| 709t | 710002525 | High Beam Ass'y |
| 709u | 705004508 | LH Front Facia |
| 709v | 414227300 | Clip |
| 710a | 415129249 | Halogen Bulb |
| 710b | 710001082 | RH Low Rear Housing |
| 710c | 710001147 | Setting Screw |
| 710d | 710006354 | RH Low Light Support |
| 710f | 710002524 | Low Beam Ass'y |
| 710g | 207142544 | Hex. Screw M4 X 25 |
| 710h | 234051410 | Flat Washer M5 |
| 710j | 232541414 | Elastic Stop Nut M4 |
| 710k | 250000723 | Phillips Screw K40 X 16 |
| 710m | 705004309 | Painted Headlamp Support |
| 710n | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 710p | 710005944 | Light Harness |
| 710q | 710001085 | RH High Front Housing |
| 710r | 710001086 | RH High Rear Housing |
| 710s | 710005856 | RH High Light Support |
| 710t | 710002525 | High Beam Ass'y |
| 710u | 705004509 | RH Front Facia |
| 710v | 414227300 | Clip |
