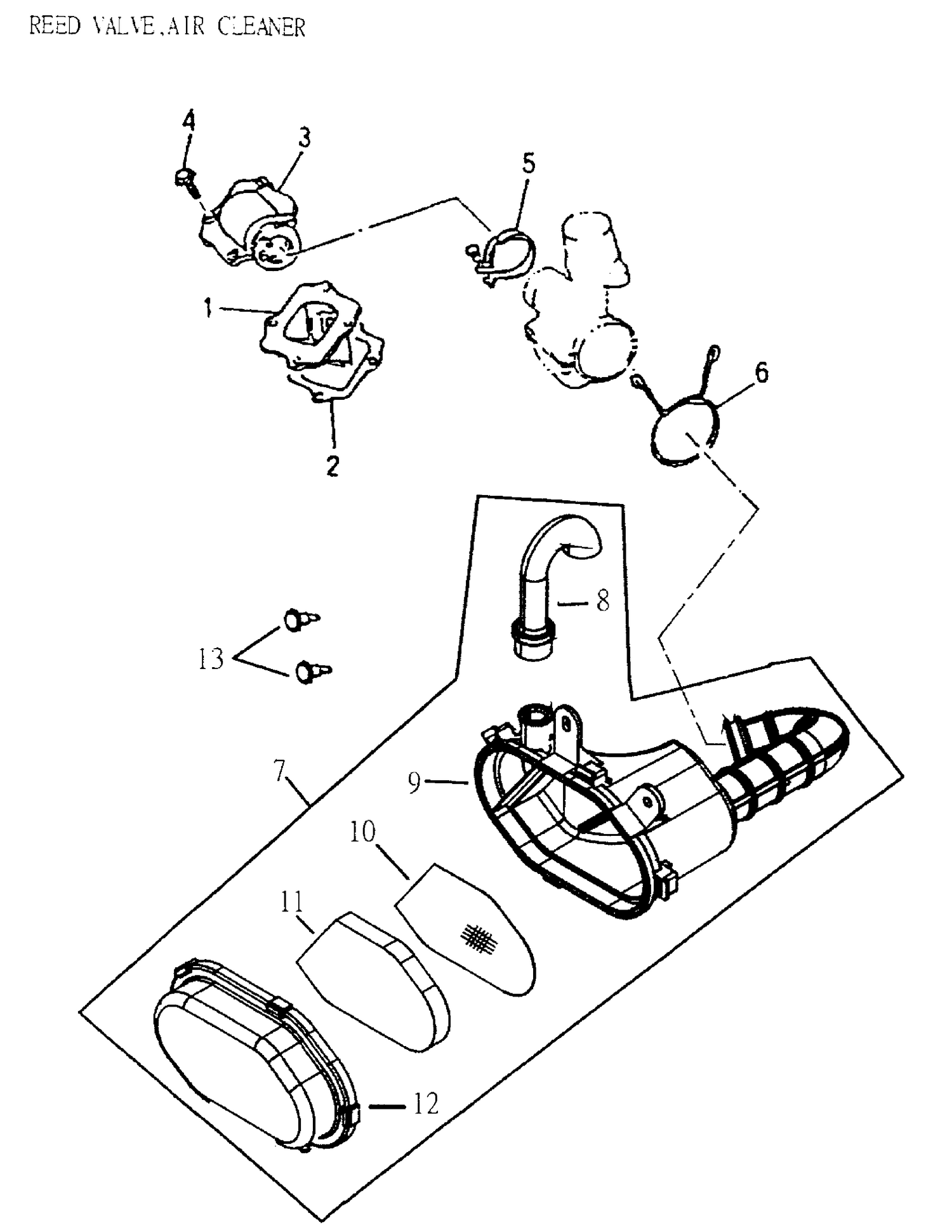

01- Reed Valve, Air Cleaner 166a-05
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A14100116000 | Reed Valve Ass'y |
| 2 | A17111116000 | REED VALVE GASKET - Call your local BRP dealership |
| 3 | A17100116000 | INTAKE MANIFOLD - Call your local BRP dealership |
| 4 | A960000601808 | HEXAGONAL WASHER FACE BOLT M6X18 - Call your local BRP dealership |
| 5 | A14110104000 | Intake Manifold Hose Clamp |
| 6 | A9451040000 | CLIP - Call your local BRP dealership |
| 7 | A17200166000 | Air Cleaner Ass'y |
| 9 | A17206166000 | Air Cleaner Base |
| 10 | A17210166000 | FILTER CLEANER NET - Call your local BRP dealership |
| 11 | A17205166000 | AIR CLEANER ELEMENT - Call your local BRP dealership |
| 12 | A17207166000 | Air Cleaner Cover |
