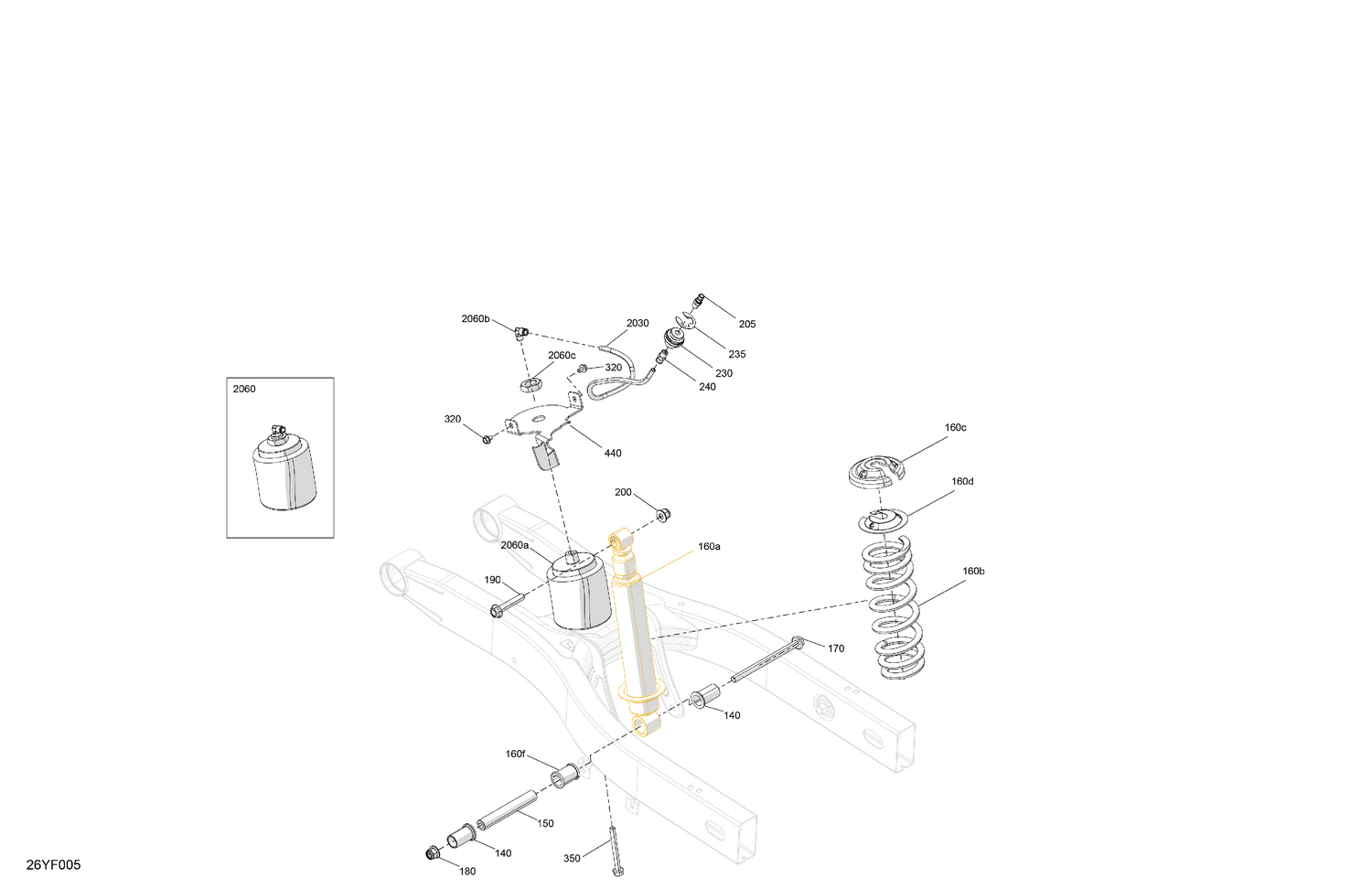

05- Suspension - Rear Shock
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 140 | 706000410 | Spacer |
| 150 | 706000409 | Shock Absorber Shaft |
| 160a | 706001706 | Shock |
| 160b | 706001707 | Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160f | 503191609 | Urethane Cushion |
| 170 | 230604034 | Hex. Flange Screw M10 X 140 |
| 180 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 190 | 207605554 | Hex. Flange Screw M10 X 55 |
| 200 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 205 | 706002797 | Air Valve |
| 230 | 706004028 | Pneumatic Connector |
| 235 | 293370123 | Circlip |
| 240 | 706000869 | Connector |
| 320 | 210261050 | Hex. Forming Screw M6 X 10 |
| 350 | 207687544 | Hex. Flange Screw M8 X 75 |
| 440 | 706002456 | Support Plate |
| 2030 | 706002679 | Hose |
| 2060a | XXX | Not Available As Spare Parts |
| 2060b | 706001018 | Elbow 90° |
