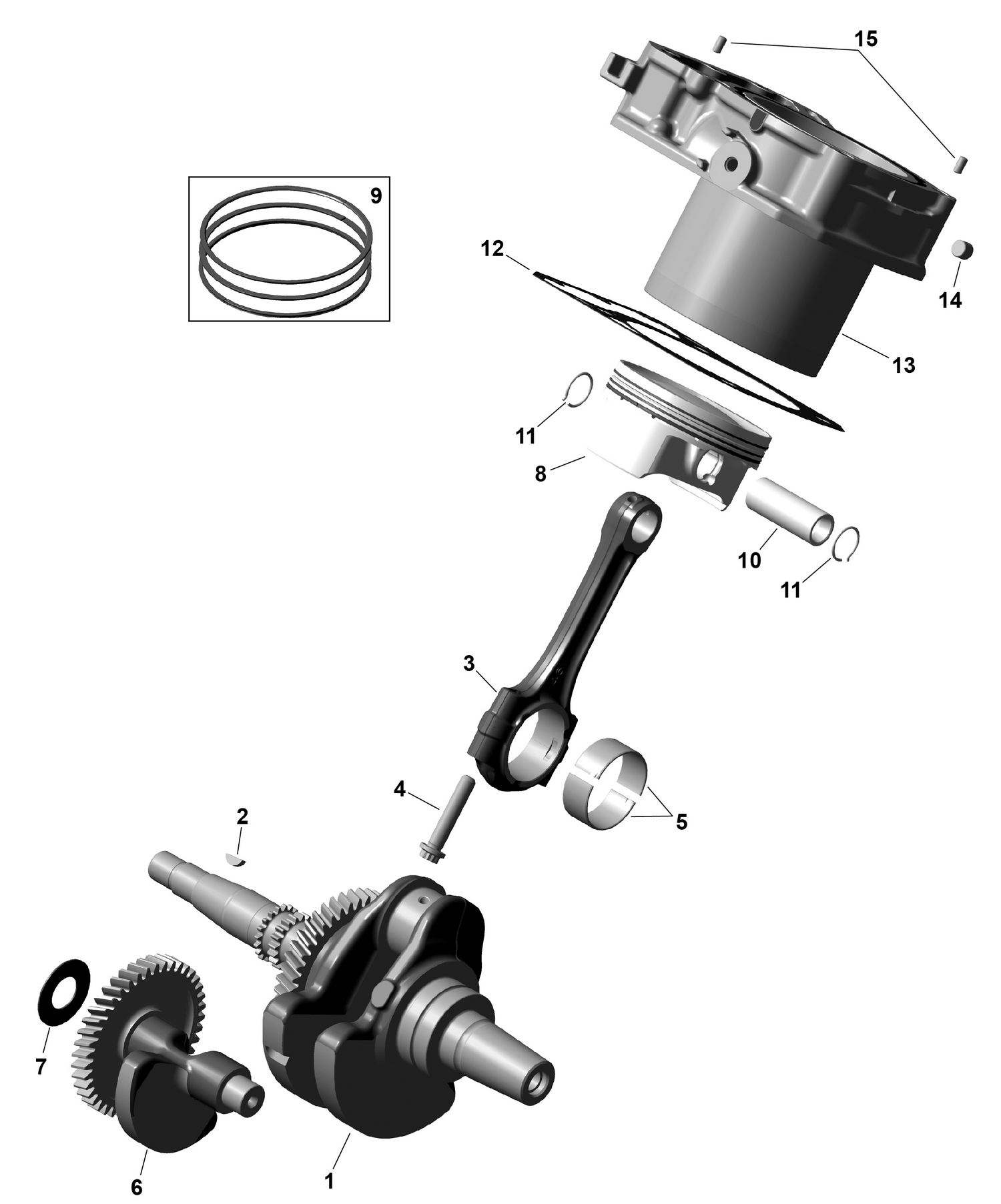

01- ROTAX - Crankshaft, Pistons and Cylinder
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420295038 | Crankshaft Ass'y This part replaces 420295037. |
| 2 | 420246570 | Woodruff Key 4 X 5 |
| 4 | 420641475 | Connecting Rod Screw M9 X 1 |
| 5 | 420233726 | Plain Bearing |
| 7 | 420627075 | Thrust Washer 20/41/0,8 |
| 7 | 420627076 | Thrust Washer 20/41/1.0 |
| 7 | 420627077 | Thrust Washer 20/41/1.2 |
| 7 | 420627078 | Thrust Washer 20/41/1.4 |
| 7 | 420627082 | Thrust Washer 20/41/0,7 |
| 7 | 420627083 | Thrust Washer 20/41/0,9 |
| 7 | 420627084 | Thrust Washer 20/41/1.1 |
| 7 | 420627085 | Thrust Washer 20/41/1.3 |
| 7 | 420627086 | Thrust Washer 20/41/1.5 |
| 8 | 420686387 | Piston Ass'y -  Includes Piston Ring Set |
| 9 | 420615180 | Piston Ring Set |
| 10 | 420216285 | Piston Pin 20/12.1/51 |
| 13 | 420413177 | Cylinder With Sleeve This part replaces 420413175. |
| 14 | 420641323 | Plug Screw M10 X 1 |
