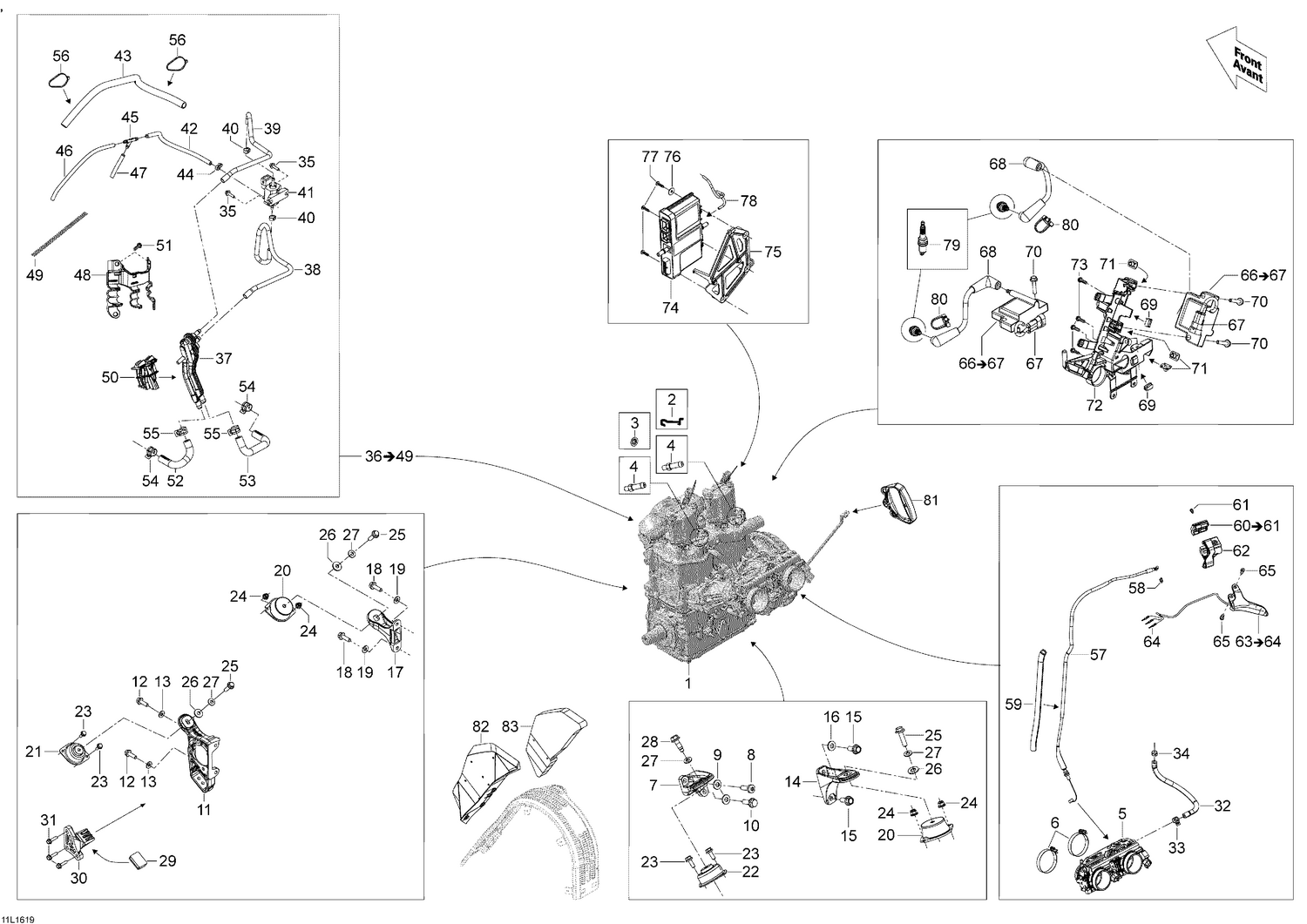

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine 600HO E-TEC |
| 2 |
515177770 |
Lock |
| 3 |
732610072 |
Push Nut |
| 4 |
420924724 |
Hose Nipple |
| 5 |
420889201 |
Throttle Body |
| 6 |
293650158 |
Clamp |
| 7 |
512060478 |
Rear Support (PTO) |
| 8 |
250000752 |
Torx Screw M8 x 25, Scotch Grip |
| 9 |
234281474 |
Conical Spring Washer M8 |
| 10 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 11 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership |
| 12 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 13 |
234281474 |
Conical Spring Washer M8 |
| 14 |
512060559 |
Rear Support (MAG) |
| 15 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 16 |
234281474 |
Conical Spring Washer M8 |
| 17 |
512060469 |
Front Support (MAG) |
| 18 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 19 |
234281474 |
Conical Spring Washer M8 |
| 20 |
512060729 |
Rubber Mount |
| 21 |
512061507 |
Damper_Vibration This part replaces 512060387. |
| 22 |
512060448 |
Rubber Mount |
| 23 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 25 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 26 |
503183200 |
Yellow, Washer |
| 27 |
234281474 |
Conical Spring Washer M8 |
| 28 |
250000796 |
Hex. Screw M8 |
| 29 |
512060627 |
Stopper |
| 30 |
512060576 |
Stopper Support |
| 31 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 32 |
512060944 |
Hose |
| 33 |
293650172 |
Clamp |
| 34 |
293650046 |
Oetiker Clamp |
| 35 |
241151640 |
Hex. Flange Screw K50 x 16 |
| 37 |
512060692 |
Manifold |
| 38 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 39 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 40 |
293650234 |
Crimp Clamp |
| 41 |
270600005 |
Solenoid Valve This part replaces 512061078. |
| 42 |
270000374 |
Hose (220mm) |
| 43 |
409901700 |
Tubing |
| 44 |
293750001 |
Tie-Rap 94 mm |
| 45 |
293710068 |
T-Fitting |
| 46 |
270000374 |
Hose (180mm) |
| 47 |
270000374 |
Hose (50mm) |
| 48 |
512060827 |
Clip Ass´y |
| 49 |
512060930 |
SPRING - Call your local BRP dealership |
| 50 |
512060769 |
Support |
| 51 |
210251150 |
Hex. HD Forming Screw M5 x 11 |
| 52 |
512060695 |
Hose |
| 53 |
512060694 |
Hose |
| 54 |
293650214 |
Spring Clamp |
| 55 |
293650047 |
Crimp Clamp, 15.3-706R |
| 56 |
293750001 |
Tie-Rap 94 mm |
| 57 |
512060668 |
Throttle Cable |
| 58 |
414274500 |
Circlip |
| 59 |
409901700 |
Tubing 9mm |
| 61 |
414440800 |
Socket Set Screw M8 X 10 |
| 62 |
512060860 |
Lower Housing |
| 64 |
515175232 |
Male Terminal |
| 65 |
732601143 |
Shoulder Screw |
| 67 |
710000568 |
Male terminal housing |
| 68 |
512061126 |
Ignition Cable |
| 69 |
710000992 |
Clip |
| 70 |
250000253 |
Hex. Flange Screw M6 x 30 |
| 71 |
293100003 |
Nut |
| 72 |
512060888 |
Support |
| 73 |
241151640 |
Hex. Flange Screw K50 x 16 |
| 74 |
512060780 |
Calibrated Module 600 E-TEC |
| 75 |
512060858 |
Calibrated Module Support |
| 76 |
250200040 |
Flat Washer |
| 77 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 78 |
415080100 |
Hose |
| 79 |
415130430 |
Spark Plug NGK PZFR6F This part replaces 415129432. |
| 80 |
512060993 |
Clamp |
| 81 |
512060136 |
Starter Grip |
| 82 |
512060847 |
Noise Shield |
