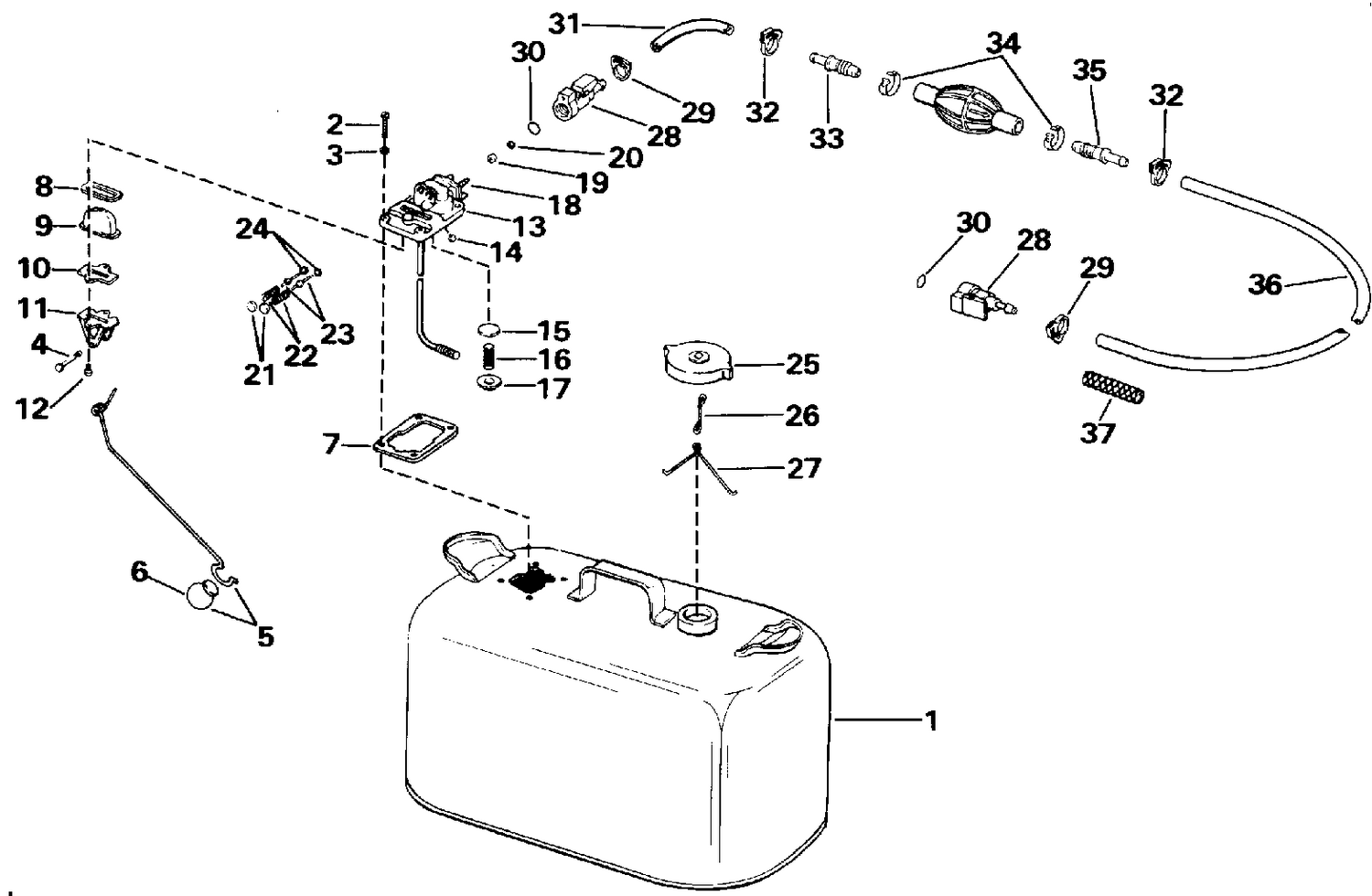

FUEL TANK
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5008623 | FUEL TANK This part replaces 0398458. |
| 2 | 0327888 | SCREW |
| 5 | 0398459 | FLOAT & INDICATOR |
| 6 | 0332370 | FLOAT |
| 7 | 0125530 | GASKET, Housing to tank |
| 8 | 0332505 | SEAL |
| 9 | 0312190 | LENS |
| 10 | 0312193 | GASKET |
| 11 | 0312191 | SCREW, Indicator support |
| 12 | 0310849 | HOUSING ASSY., Valve |
| 13 | 0398409 | HOUSING |
| 19 | 0332488 | RING, Quad |
| 25 | 0388938 | CAP ASSY., Fuel |
| 31 | HOSE, | Short, 19 1/2 in. (495mm) |
| 36 | HOSE, | Long, 99 in. (2515mm) |
| 37 | 0336269 | BRAIDED SLEEVE |
| 0389549 | 0389549 | FUEL CONN., HOSE & PRIMER BULB AY. |
