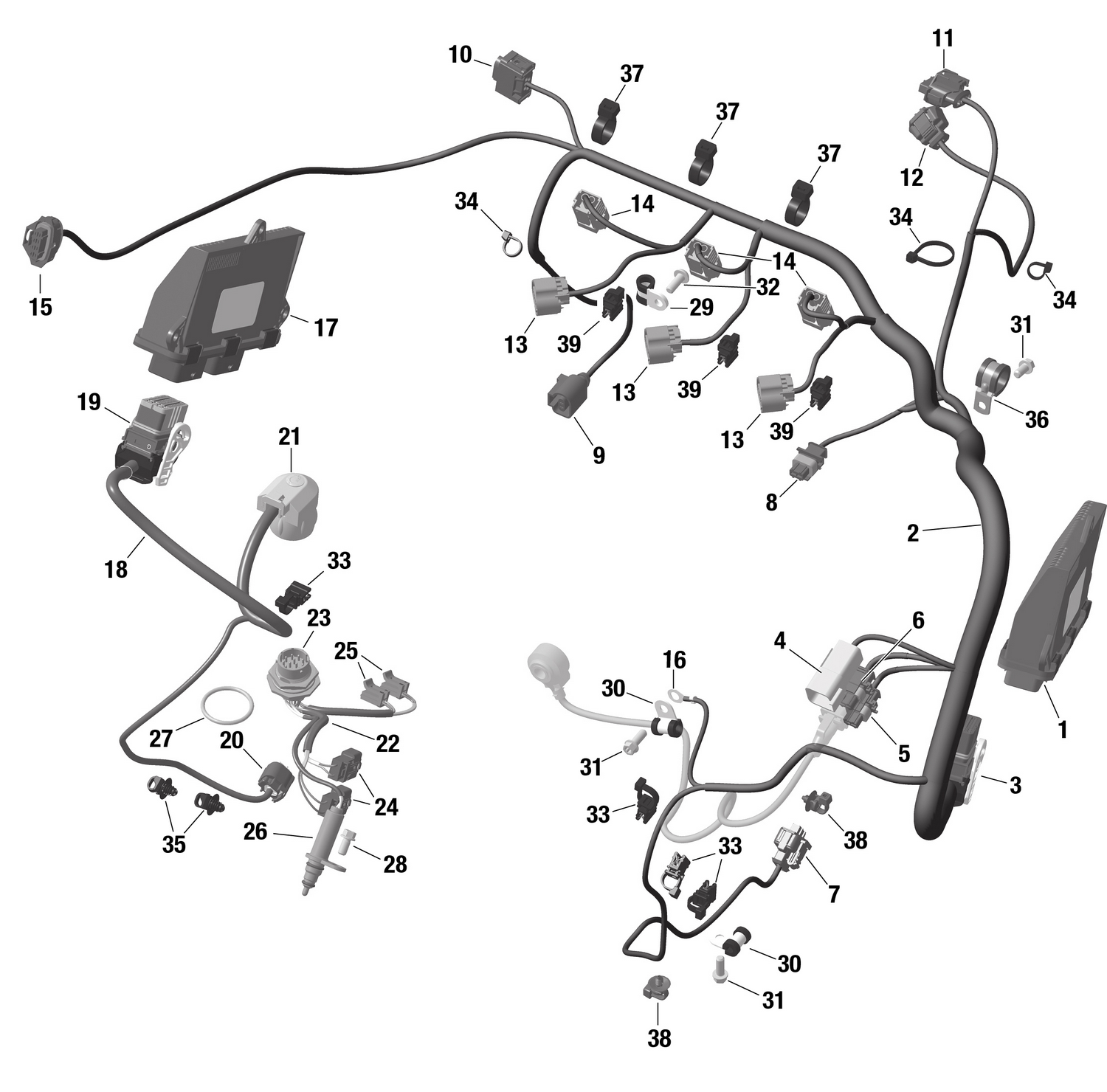

01- ROTAX - Engine Harness And Electronic Module
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420464502 | Electronic Module |
| 1 | 420666068 | Blank ECU Module |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 710001539 | Male Terminal Housing, 6 Circuits |
| 5 | 278001005 | Male Housing, 2 Circuits |
| 6 | 278001005 | Male Housing, 2 Circuits |
| 7 | 278001830 | Housing Connector, 3 Circuits |
| 8 | 278001005 | Male Housing, 2 Circuits |
| 9 | 710001184 | Housing |
| 10 | 710003731 | Housing This part replaces 710001872. |
| 11 | 515176410 | Male Connector |
| 12 | 710001136 | Housing |
| 13 | 710000108 | Connecteur 3 Positions |
| 14 | 515176129 | Female Housing |
| 15 | 515176410 | Male Connector |
| 16 | 278000992 | Open Barrel |
| 17 | 420666840 | Transmission Module |
| 18 | 420266886 | Transmission Wiring Harness |
| 19 | XXX | Not Available As Spare Parts |
| 20 | XXX | Not Available As Spare Parts |
| 21 | XXX | Not Available As Spare Parts |
| 22 | 420264104 | Wiring Harness |
| 23 | XXX | Not Available As Spare Parts |
| 24 | XXX | Not Available As Spare Parts |
| 25 | XXX | Not Available As Spare Parts |
| 26 | XXX | Not Available As Spare Parts |
| 27 | 420450481 | O-Ring |
| 28 | 420440147 | Hex. Flange Screw M6 X 12 |
| 29 | 414176000 | Open Clamp |
| 30 | 420853414 | Clamp |
| 31 | 420440147 | Hex. Flange Screw M6 X 12 |
| 32 | 420641588 | Torx Flange Screw M6 X 16 |
| 33 | 420951650 | Cable Clamp 150mm |
| 34 | 420651817 | Locking Tie 175 X 4 MM |
| 35 | 420951345 | Tie Rap |
| 36 | 420851494 | Cable Clamp 15/M6 |
| 37 | 420651817 | Locking Tie 175 X 4 MM |
| 38 | 420951341 | Tie-Rap With Mount |
