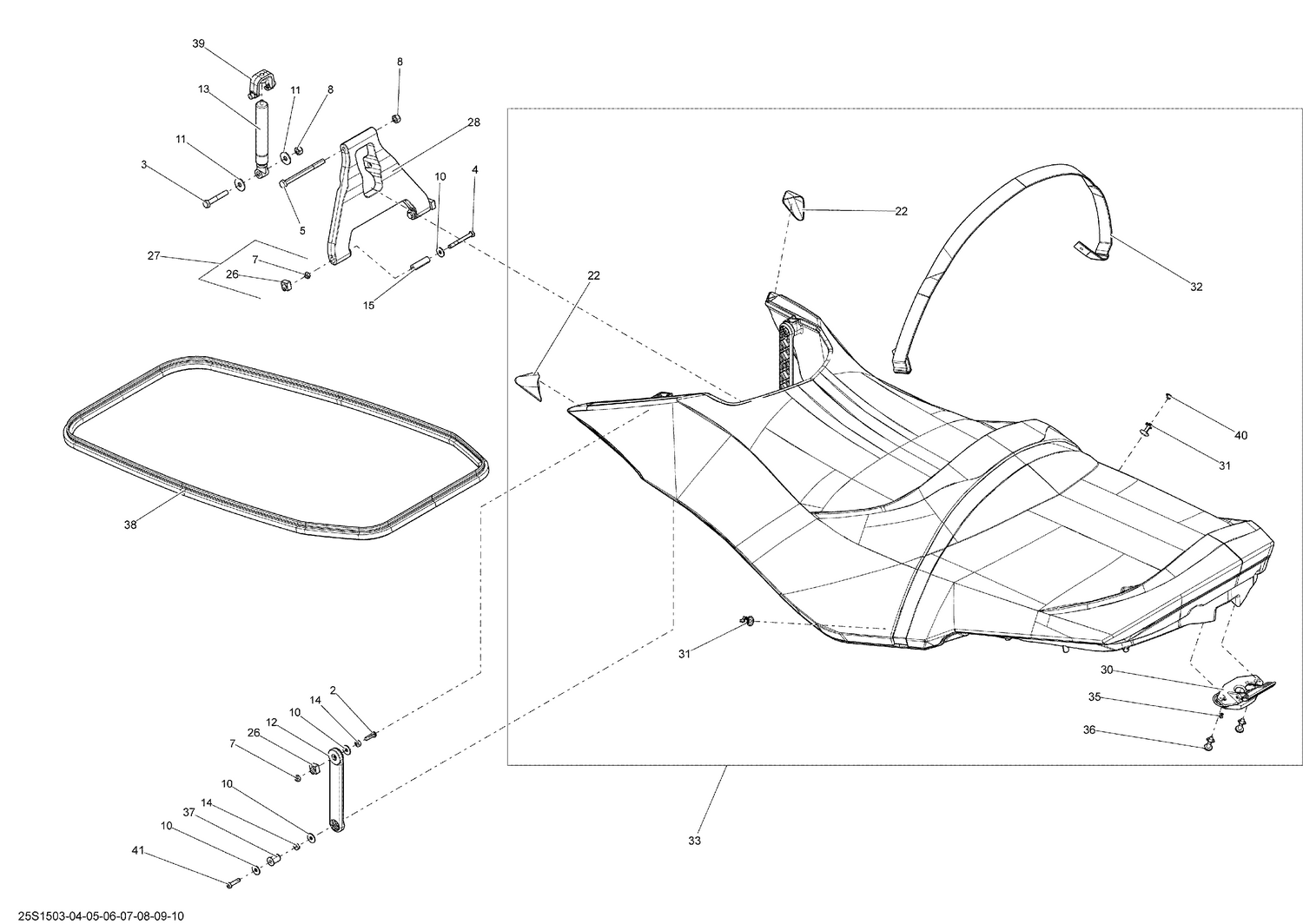

09- Seat _25S1506
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 205462060 | SOCKET SCREW M6 X 20 - Call your local BRP dealership |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 207265560 | Hex. Screw M6 X 55, Scotch Grip |
| 5 | 231085060 | Hex. Screw M8 X 150 |
| 7 | 232561200 | Brass Elastic Stop Nut M6 |
| 8 | 232581200 | Hex. Elastic Nut M8 Brass |
| 10 | 234062600 | Flat Washer M6, Stainless |
| 11 | XXX | Not Available As Spare Parts |
| 12 | 296000372 | Lateral Arm |
| 13 | 269001684 | Shock |
| 13 | XXX | Not Available As Spare Parts |
| 14 | 269001588 | Spacer |
| 15 | 269001589 | Spacer |
| 22 | 269002853 | LH Corner Protector |
| 22 | 269002854 | RH Corner Protector |
| 26 | 269500252 | M6 Nut Housing Ass'y |
| 27 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 28 | 269501699 | Center Arm |
| 30 | 269700116 | Latch Ass'y |
| 31 | 293150067 | Rivet |
| 32 | 269002834 | Seat Strap |
| 35 | 293150143 | Pop Rivet 1/8 |
| 36 | 293150151 | Rivet 1/4" |
| 37 | 250100150 | Expansion Nut M6 X 1 |
| 38 | 219704366 | Was 293200062 Seal |
| 39 | 269002077 | End Fitting |
| 40 | 293720067 | Grommet |
