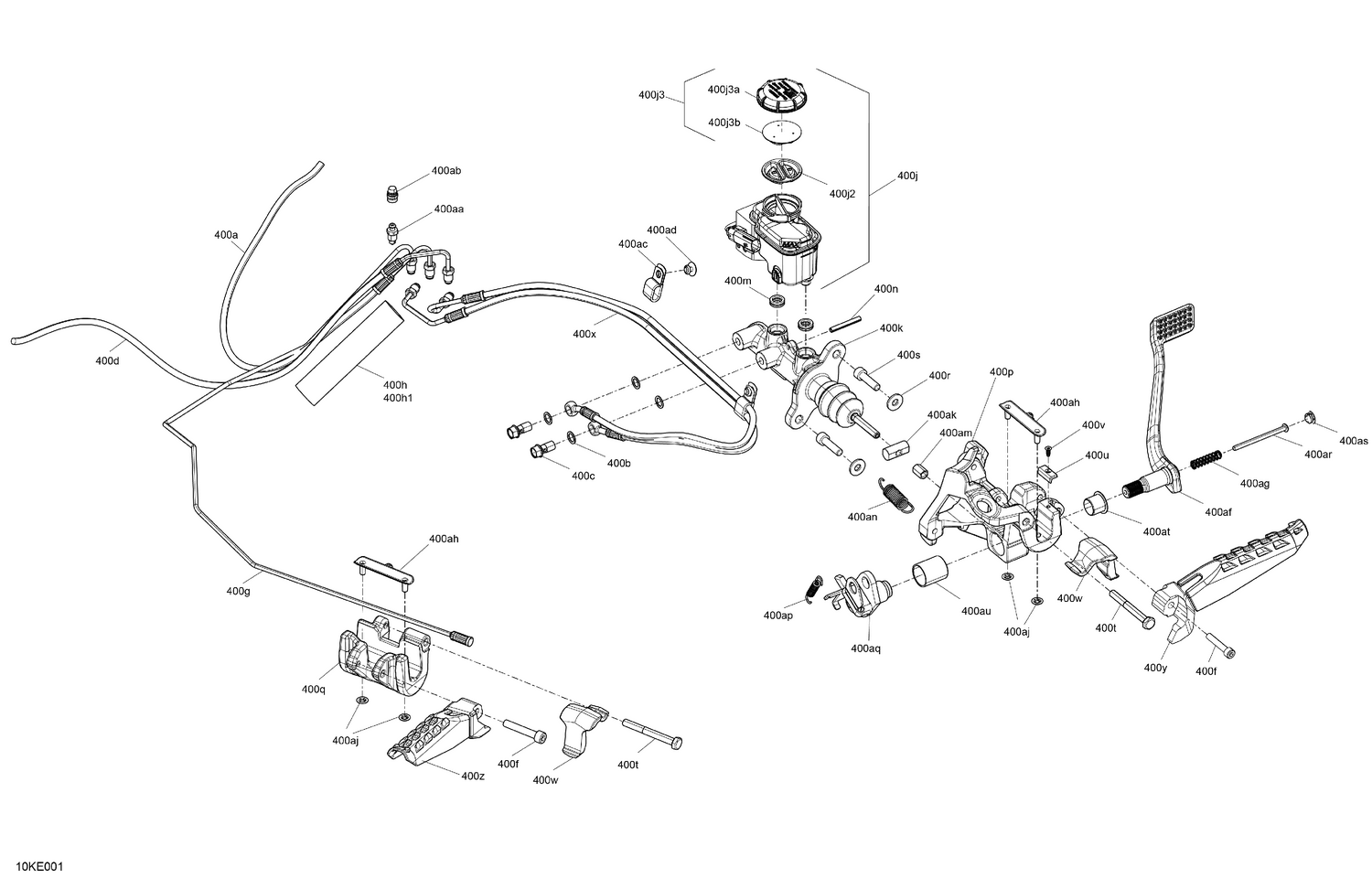

03- Mechanic - Brakes
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 400a | 705601559 | RH Front Caliper Hose |
| 400aa | 705600502 | Bleeder Screw |
| 400ab | 705601190 | Bleeder Bolt Cap |
| 400ac | 515175507 | Open Clamp |
| 400ad | 390406500 | Pop Rivet 3/16" |
| 400af | 705602171 | Deep Black, Brake Pedal |
| 400ag | 705601583 | Brake Pedal Spring |
| 400ah | 705017927 | Footrest Pad Ass'y |
| 400aj | 250100163 | Pressure Nut |
| 400ak | 705601585 | Socket Push Rod |
| 400am | 705601586 | Jam Nut M8 |
| 400an | 705006533 | Spring |
| 400ap | 705602243 | Compression Spring |
| 400aq | 705601600 | Rocker Ass'y |
| 400ar | 205457044 | Hex. Screw M5 X 70 |
| 400as | 293730060 | Black, Dart 10 mm |
| 400at | 709402254 | Plain Bearing DIA. 18 MM, Plastic |
| 400b | 705601628 | Copper Washer |
| 400c | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 400d | 705601560 | LH Front Caliper Hose |
| 400f | 250000988 | Socket Head Screw M8 x 45, Scotch Grip |
| 400g | 705601561 | Rear Caliper Hose |
| 400h1 | 219704402 | Tubing 25 MM 1000MM Long |
| 400j2 | 705601943 | Brake Fluid Cap |
| 400j3a | 705601943 | Brake Fluid Cap |
| 400j3b | 705601943 | Brake Fluid Cap |
| 400k | 705601580 | Master Cylinder Tandem Brake |
| 400m | 705601715 | Seal Master Cylinder |
| 400n | 705601716 | Spring Pin 5.3MM x 40MM |
| 400p | 705013422 | RH Caliper Slider |
| 400q | 705013423 | LH Caliper Slider |
| 400r | 506151245 | Washer |
| 400s | 250001117 | Screw-Socket Cap S.Grip M8 X 30 |
| 400t | 207087044 | Hex. Screw M8 X 70 |
| 400u | 705017928 | Sliding Block |
| 400v | 250000453 | Torx Cutting Screw, M4 X 10 |
| 400w | 705011404 | Slider Clamp |
| 400x | 705601562 | Hose Master Cylinder |
| 400y | 705013464 | Deep Black, RH Footrest |
| 400z | 705013465 | Deep Black, LH Footrest |
