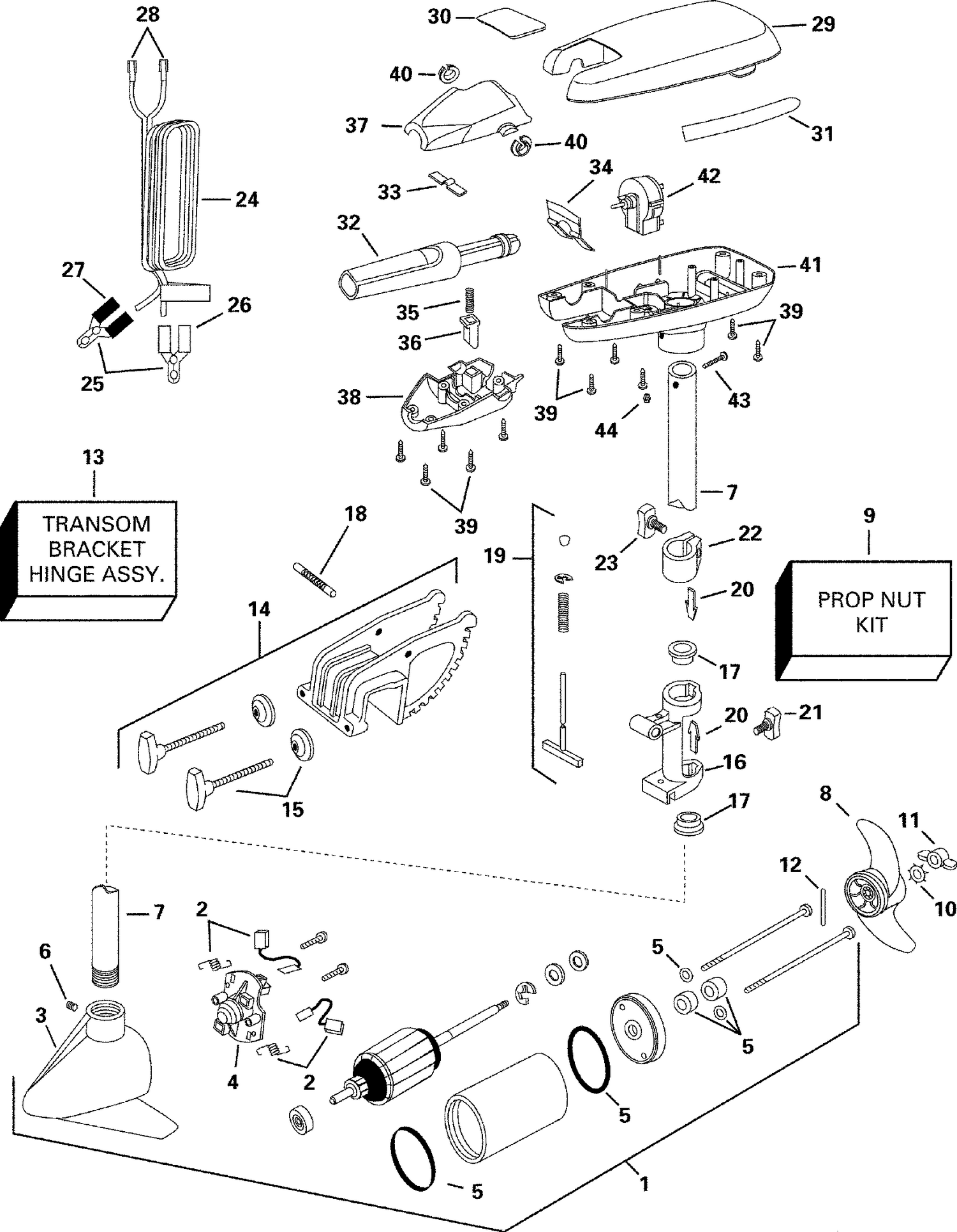

SCOUT 40 H
Parts (22)
| Ref | Part Number | Description |
|---|
| 1 |
0128092 |
MOTOR ASSEMBLY |
| 6 |
0128091 |
SCREW, Set |
| 7 |
0128201 |
TUBE, 36 in. |
| 8 |
0772775 |
PROPELLER |
| 9 |
0772777 |
PROP NUT KIT |
| 13 |
0128043 |
BRACKET & HINGE ASSY. |
| 22 |
0128086 |
COLLAR, Depth |
| 24 |
0128087 |
BATTERY CABLE |
| 30 |
0128202 |
DECAL, Cover |
| 31 |
0128114 |
DECAL, Side |
| 32 |
0128181 |
HANDLE ASSY. |
| 33 |
0127986 |
SPRING, Detent |
| 34 |
0128182 |
SPRING, Tilt detent |
| 35 |
0128183 |
SPRING, Release |
| 36 |
0128184 |
REALEASE BUTTON |
| 37 |
0128185 |
HANDLE, Upper |
| 38 |
0128186 |
HANDLE, Lower |
| 39 |
0127989 |
SCREW |
| 40 |
0127940 |
BEAING, Handle |
| 41 |
0128200 |
CONTROL BOX, Plastic |
| 42 |
0127945 |
SWITCH, 5 Speed |
| 43 |
0128068 |
SCREW |
