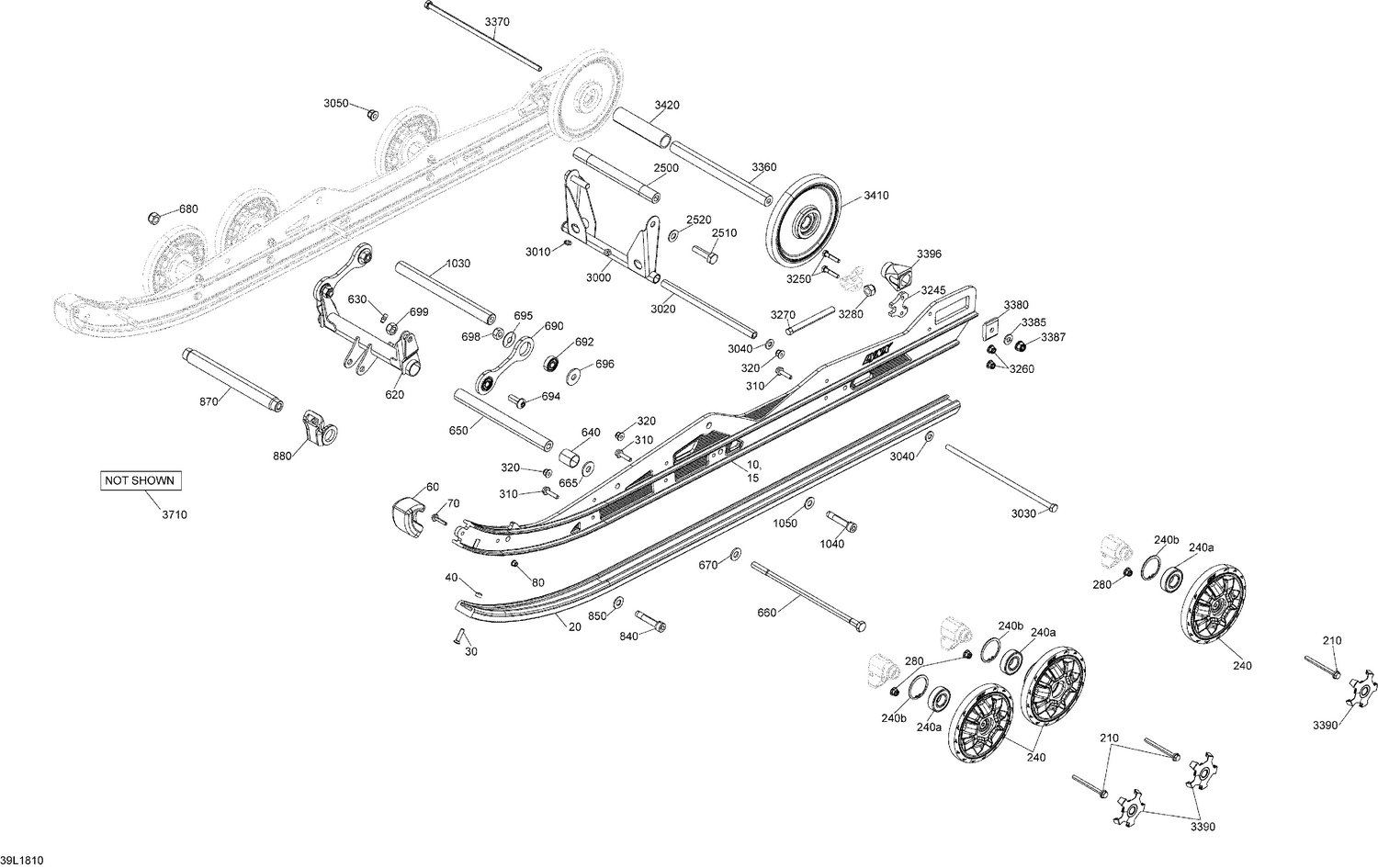

08- Rear Suspension RAVE - 600HO E-TEC - RE
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503194735 | LH Runner |
| 15 | 503194736 | RH Runner |
| 20 | 503192618 | Black Slider, 154" |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561414 | Elastic Stop Nut M6 |
| 60 | 503192299 | Runner Protector |
| 70 | 207652544 | Hex. Flange Screw M5 X 25 |
| 80 | 233251434 | Flanged Elastic Nut M5 |
| 210 | 207667056 | Hex. Flange Screw M6 x 70 |
| 240a | 503190396 | Ball Bearing |
| 240b | Not | Available As Spare Part - Circlip |
| 280 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 310 | 207662556 | Hex. Flange Screw M6 X 25 |
| 320 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 620 | 503194799 | Front Swing |
| 630 | 408200700 | Grease Fitting |
| 640 | 503193822 | Bushing |
| 650 | 503193893 | Lower Shaft |
| 660 | 503193227 | Bolt M10 X 251MM |
| 665 | 503191926 | Washer |
| 670 | 250200138 | Washer |
| 680 | 233601466 | Elastic Locking Nut M10 |
| 690 | 605254159 | Etuvivun välitanko |
| 692 | 503194696 | Bearing |
| 694 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 695 | 25004 | Cup Spring |
| 696 | 234002600 | Flat Washer 10 mm, Stainless |
| 698 | 233401414 | Lock Spring Nut M10 |
| 699 | 232500416 | Elastic Stop Nut M10 |
| 840 | 205505054 | Socket Screw |
| 850 | 503192496 | Washer |
| 870 | 503195015 | Limiter Strap Shaft |
| 880 | 503194867 | Holder, Limiter Strap |
| 1030 | 5343471 | Eturemmin akseli |
| 1040 | 205505054 | Socket Screw |
| 1050 | 503192496 | Washer |
| 2500 | 503193638 | Axe Inferieur *shaft-lower |
| 2510 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 2520 | 503192496 | Washer |
| 3000 | 503194342 | Rear Swing |
| 3010 | 408200700 | Grease Fitting |
| 3020 | 503189156 | Pivot Arm Axle |
| 3030 | 503192440 | Bolt M8 X 248mm |
| 3040 | 503192494 | Washer |
| 3050 | 233281466 | Elastic Flang Nut M8 |
| 3245 | 503193250 | Spacer |
| 3250 | 207063054 | Hex. Cap Screw M6 X 30 |
| 3260 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 3270 | 230100054 | Hex Screw M10 x 100 |
| 3280 | 233601466 | Elastic Locking Nut M10 |
| 3360 | 503194105 | Rear Shaft |
| 3370 | 503194069 | Bolt M8 |
| 3380 | 503194412 | Axle Slider This part replaces 503194067. |
| 3385 | 250200159 | Washer-Spring Conical M8 |
| 3387 | 233281466 | Elastic Flang Nut M8 |
| 3390 | 503194950 | Black, Wheel Cap |
| 3396 | 503190428 | Rear Wheel Spacer |
| 3410 | 503192140 | Black, Wheel Ass'y, 165 mm |
| 3420 | 503191263 | Rear Spacer |
