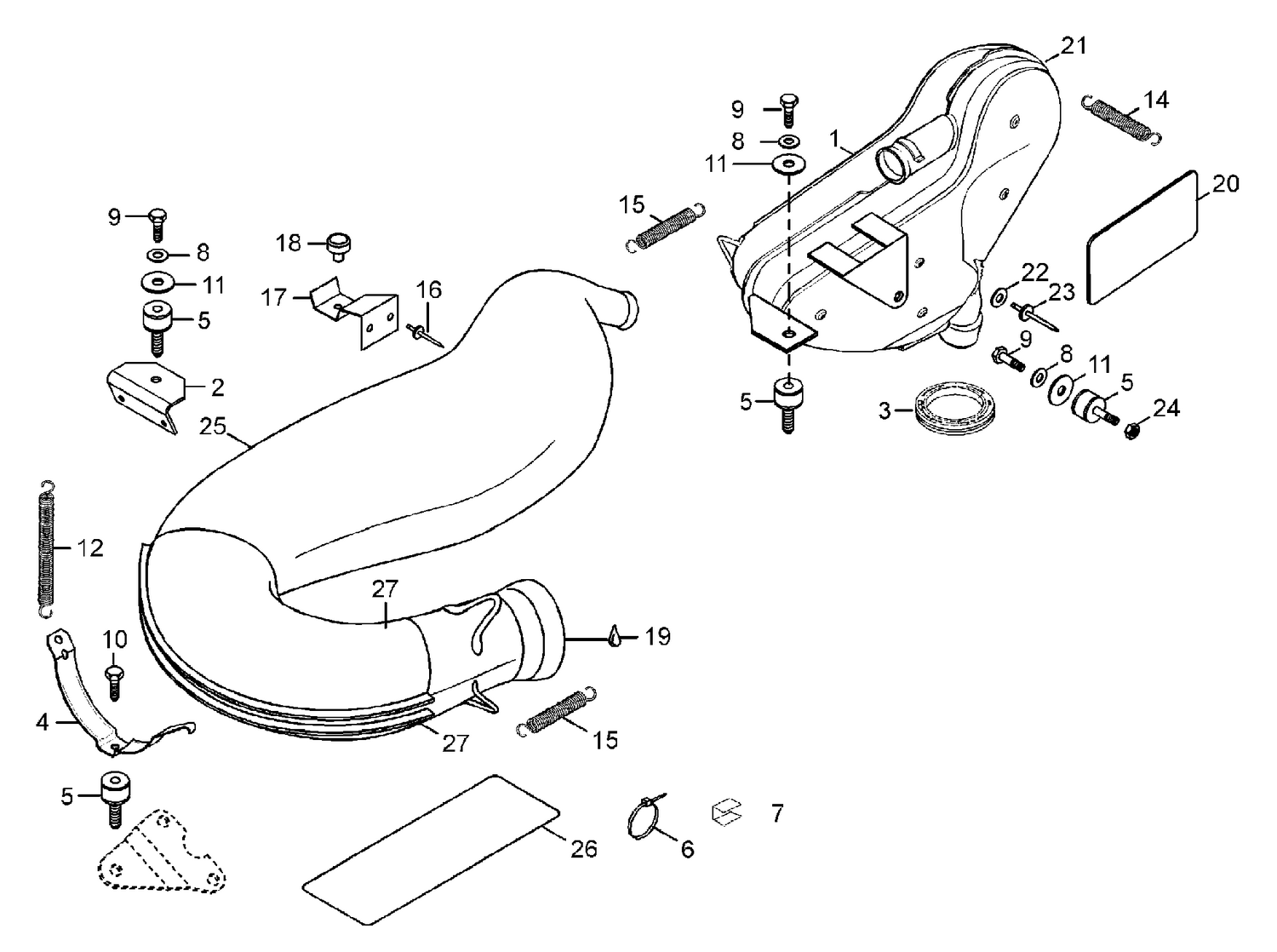

01- Muffler
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5143393 | After muffler |
| 2 | 5443816 | Tunepipe support, rear |
| 3 | 570027300 | Rubber for grommet |
| 4 | 535108 | Support |
| 5 | 28245 | BUMPER-RUBBER - Call your local BRP dealership |
| 6 | 27043 | Clamp |
| 7 | 27042 | Clamp |
| 8 | 20014 | Spring washer |
| 9 | 40035 | Screw M8x16 |
| 10 | 40116 | Screw M8x12 |
| 11 | 234081410 | Flat Washer 8 mm This part replaces 20104. |
| 12 | 542497 | Spring |
| 14 | 414851900 | Spring |
| 15 | 415107100 | Spring This part replaces 414893700. |
| 16 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 17 | 5343750 | Lug Weld. |
| 18 | 514053654 | Rubber Bumper This part replaces 570048700. |
| 19 | 293800090 | Loctite, 80ml This part replaces 413710300. |
| 20 | 514030400 | Insulator L.H. |
| 20 | 514033900 | Insulator R.H. |
| 21 | 514030300 | Deflector L.H. |
| 21 | 514033800 | Deflector R.H. |
| 22 | 20008 | Washer |
| 23 | 36083 | Rivet |
| 24 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 25 | 5143089 | Tune pipe |
| 26 | 514052966 | Isolation part |
| 27 | 5144109 | Tunep. cover, upper |
