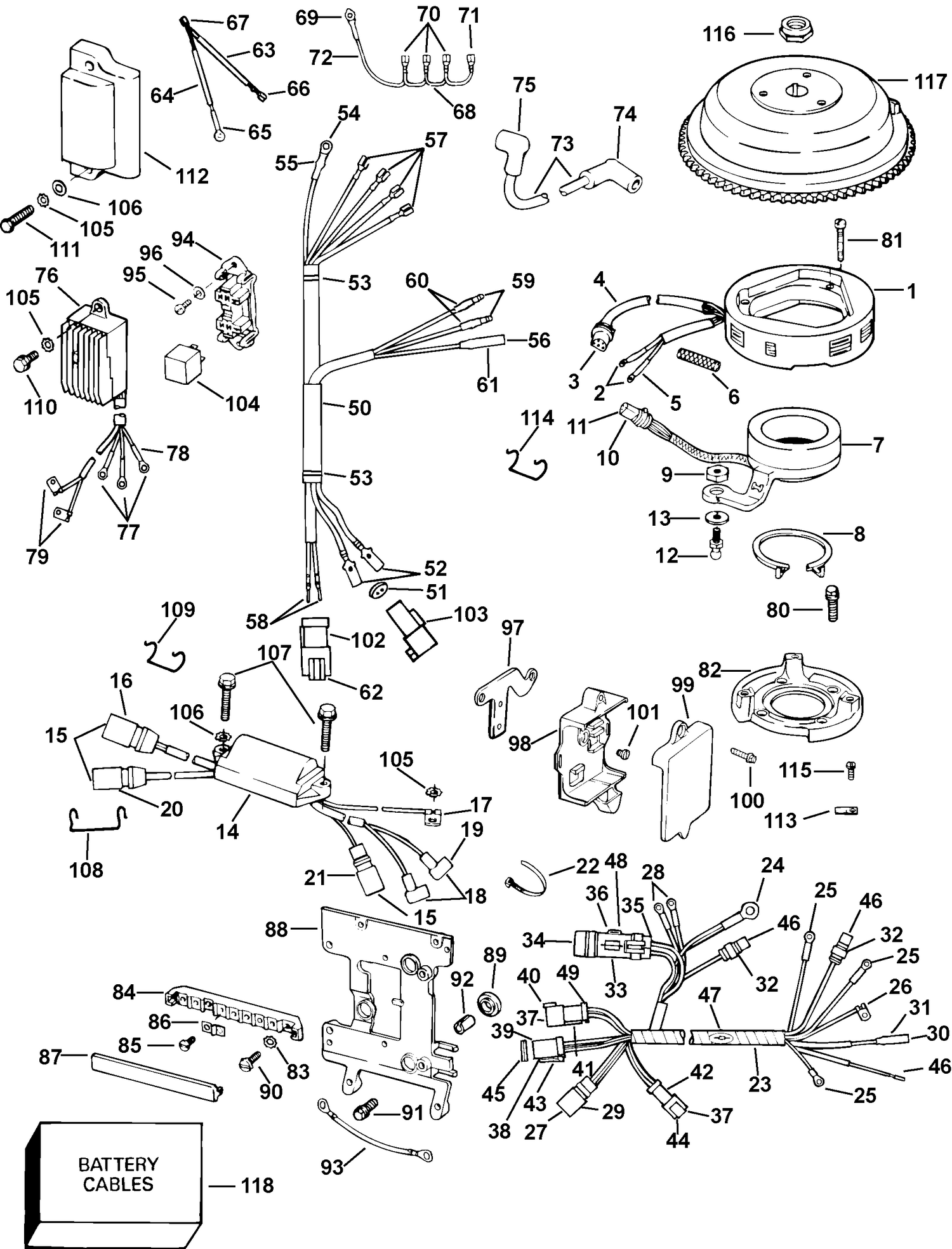

| Ref | Part Number | Description |
|---|
| 1 |
0584560 |
STATOR |
| 7 |
0175386 |
TIMER BASE Assy |
| 14 |
0585261 |
POWER PACK |
| 23 |
0586020 |
MOTOR CABLE Assy |
| 50 |
0585015 |
CABLE Assy, TNT Relay |
| 53 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 63 |
0583706 |
CABLE, Relay |
| 68 |
0585016 |
CABLE Assy, Relay |
| 73 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 76 |
0585001 |
REDRESSEUR & FIL |
| 81 |
0325042 |
SCREW, Starter mounting |
| 82 |
0126671 |
PLATE, Stator mounting |
| 84 |
0329895 |
BORNIER |
| 85 |
0329182 |
VIS, borne |
| 86 |
0315004 |
FIL DE LIAISON, bornier |
| 87 |
0329896 |
CACHE DE BORNIER |
| 88 |
0338431 |
BRACKET |
| 89 |
0326136 |
GROMMET |
| 90 |
0303714 |
SCREW |
| 92 |
0302406 |
SLEEVE |
| 93 |
0376349 |
FIL, masse |
| 97 |
0514694 |
BRACKET, Mounting |
| 98 |
0352051 |
BRACKET, Connector This part replaces 0342197. |
| 99 |
0342265 |
COVER, Bracket |
| 101 |
0305452 |
SCREEN |
| 107 |
0328726 |
SCREW (Use existing coil screw) |
| 108 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 109 |
0512743 |
DISPOSITIF DE RETENUE |
| 112 |
0583740 |
COIL Assy |
| 113 |
0126582 |
CLAMP, Timer base |
| 114 |
0512743 |
DISPOSITIF DE RETENUE |
| 115 |
0306014 |
VIS, ancrage |
| 116 |
0326111 |
NUT |
| 117 |
0585190 |
FLYWHEEL Assy |
