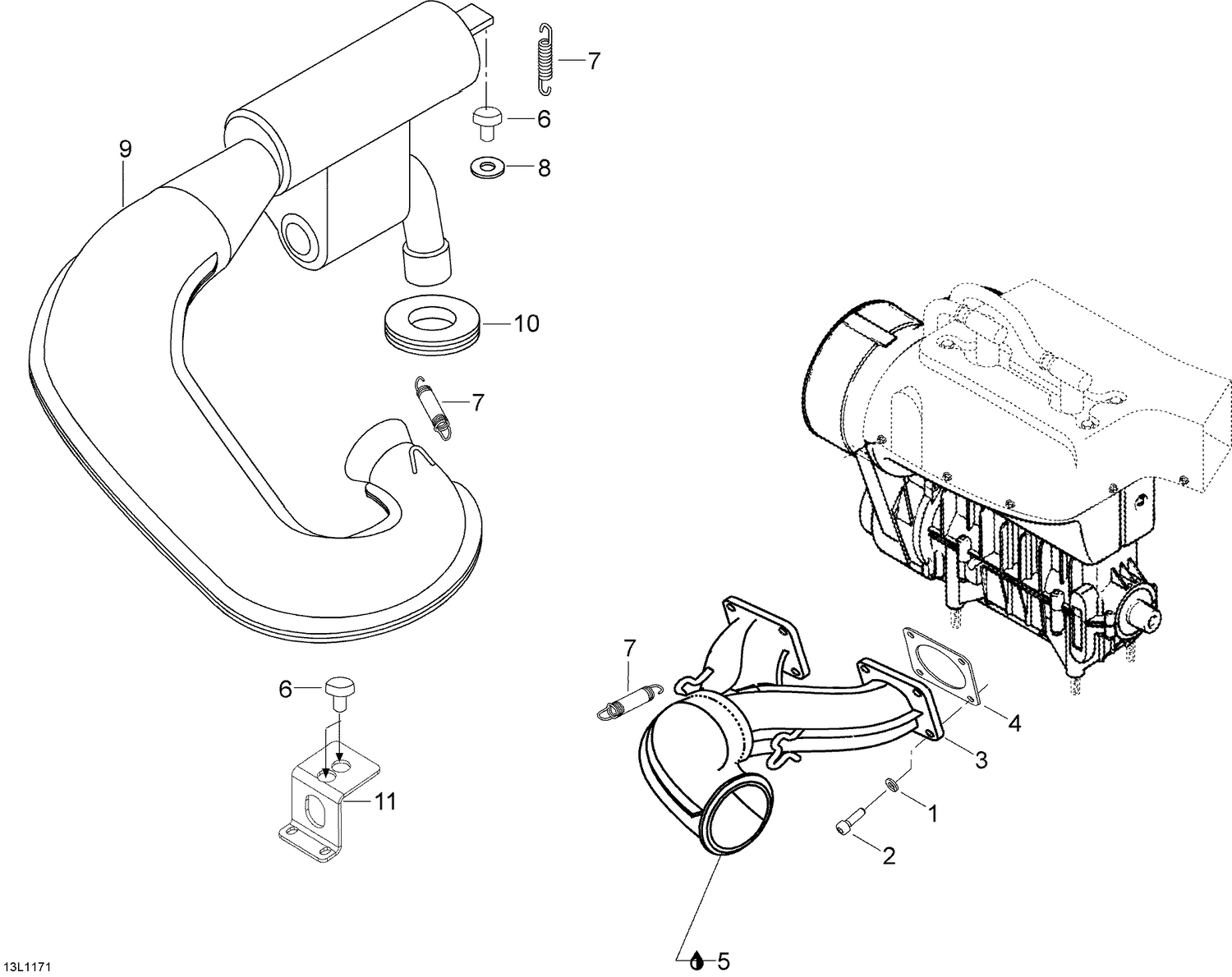

01- Exhaust System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20014 | Lock washer A8 |
| 2 | 40135 | Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 3 | 420973512 | EXHAUST MANIFOLD - Call your local BRP dealership |
| 4 | 420831849 | Gasket 1.0 mm |
| 5 | 293800090 | Sealant, Loctite, 80 ml |
| 6 | 514053654 | Rubber Bumper |
| 7 | 420938796 | Spring This part replaces 420938795. |
| 8 | 20087 | Washer M14 |
| 9 | 605155509 | PIPE_TUNED ASSY - Call your local BRP dealership |
| 10 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
