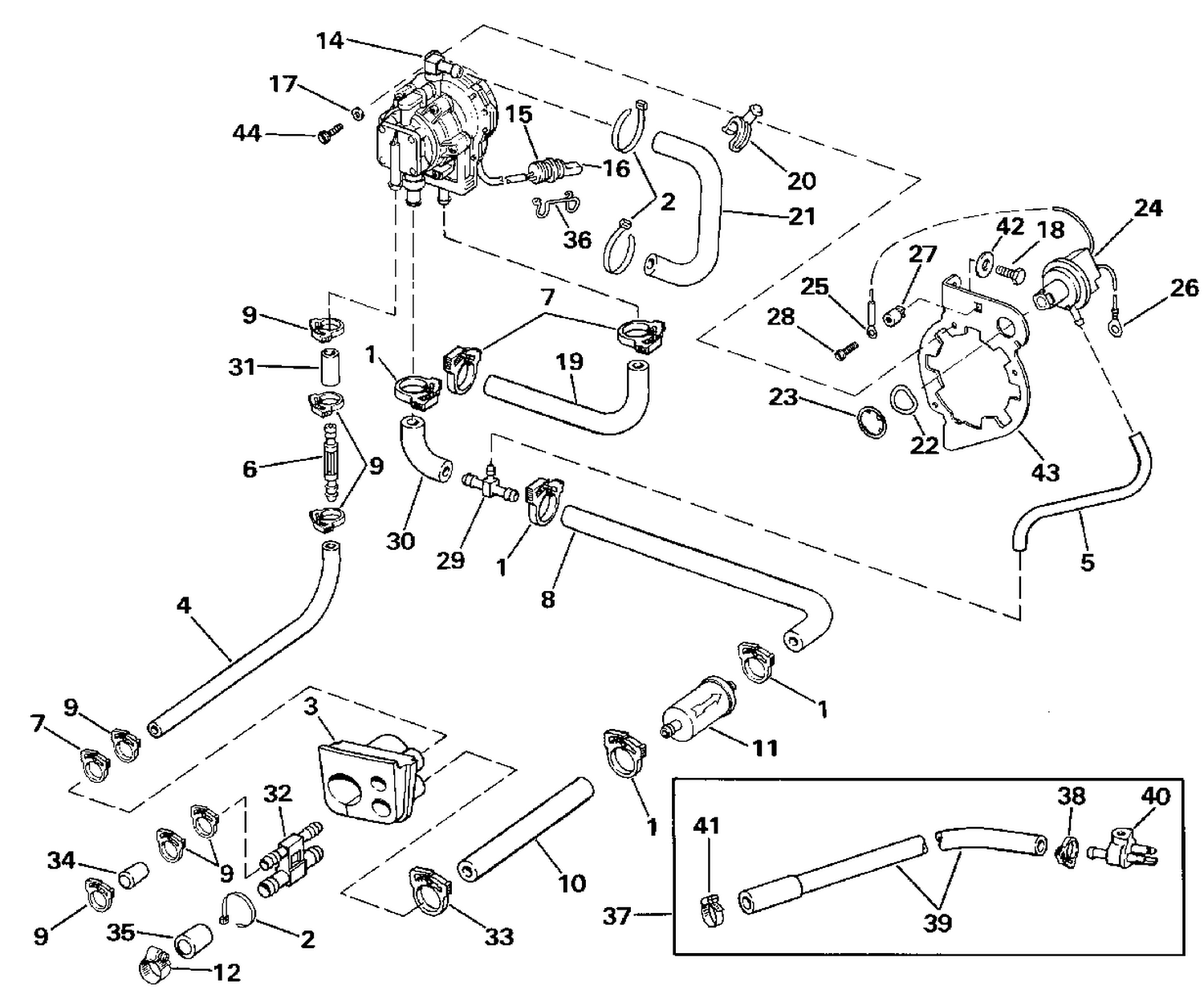

| Ref | Part Number | Description |
|---|
| 2 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 3 |
0332246 |
GROMMET |
| 4 |
HOSE, |
Oil conn.to sight tube, 26" (660mm) |
| 5 |
0331526 |
HOSE, Manifold to #1 carb. |
| 6 |
0331623 |
FILTER AND HOSE ASSY. |
| 9 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 10 |
HOSE, |
Conn. to fuel filter 26" (660mm) |
| 11 |
0360941 |
FUEL FILTER, 65 micron This part replaces 0398319. |
| 14 |
5007423 |
Kit Ay This part replaces 0174879. |
| 18 |
0122147 |
VIS, connecteur |
| 19 |
HOSE, |
Pulse, 6 1/4" (159mm) |
| 20 |
0329661 |
SUPPORT/BOUCHON |
| 21 |
0334774 |
HOSE, Pump to manifold |
| 22 |
0330522 |
WAVE WASHER, Vacuum switch |
| 24 |
0586544 |
VACUUM SWITCH This part replaces 0395208. |
| 27 |
0328600 |
TERMINAL GROMMET |
| 29 |
0331995 |
TEE, Fuel hose to vacuum switch |
| 30 |
0332281 |
HOSE, Fuel filter to pump |
| 31 |
HOSE, |
Sight tube to pump, 1 1/2" (38mm) |
| 32 |
0332245 |
CONNECTOR, Fuel & oil hose |
| 33 |
0329653 |
CLAMP |
| 35 |
0331649 |
CAP, Connector - fuel |
| 36 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 37 |
0398339 |
FUEL CONNECTOR & HOSE |
| 40 |
0393334 |
CONNECTEUR, carburant - mâle |
| 42 |
0317936 |
WASHER |
