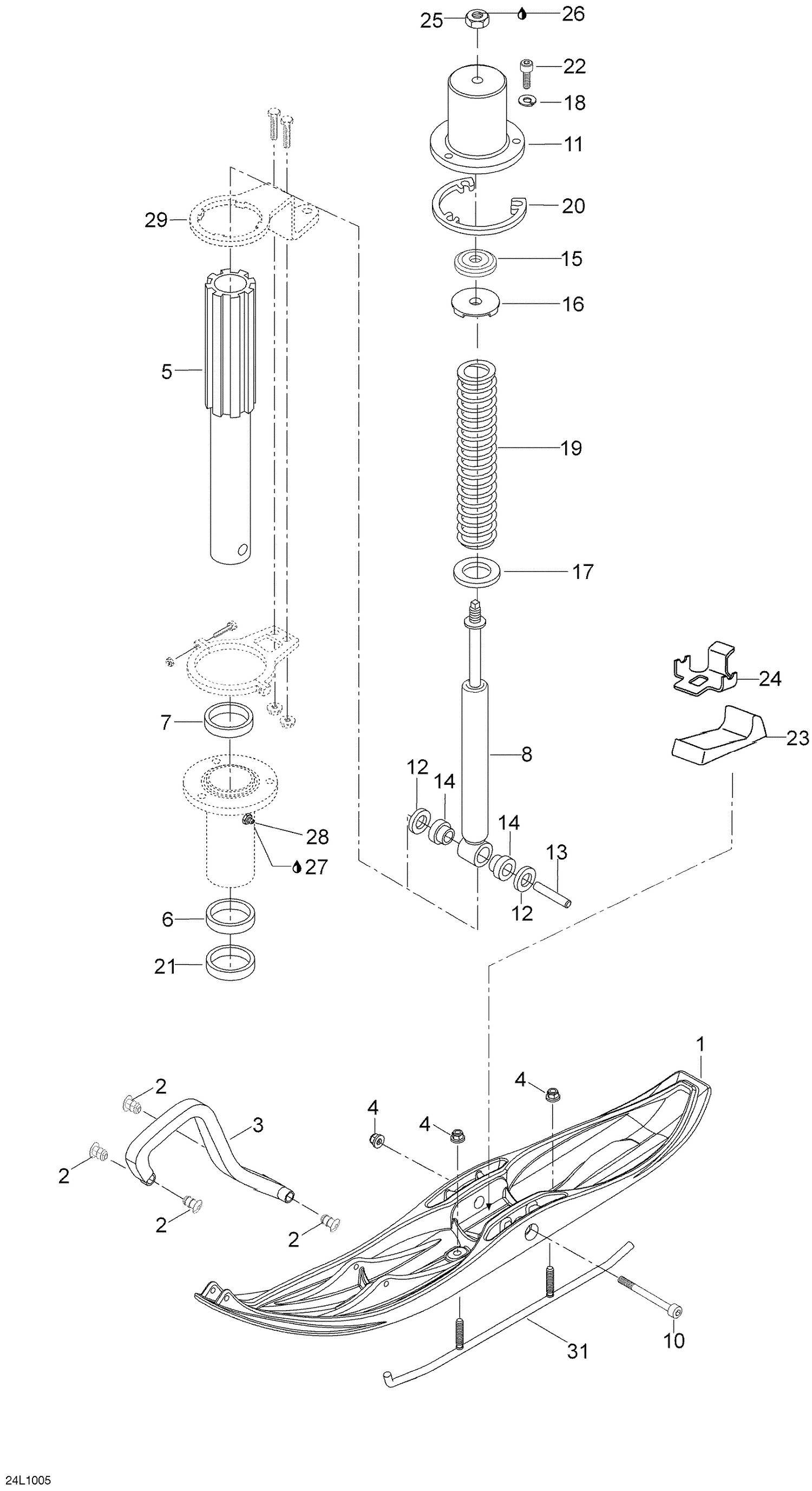

| Ref | Part Number | Description |
|---|
| 1 |
505073034 |
Plastic ski This part replaces 605153775. |
| 2 |
505071812 |
Retainer 17mm long |
| 3 |
505070963 |
Handle, Black |
| 4 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 5 |
5245362 |
Skileg 8 GR - Call your local BRP dealership |
| 6 |
414803200 |
Lower Cushion |
| 7 |
414803100 |
Upper Cushion |
| 8 |
505070920 |
SHOCK - Call your local BRP dealership |
| 9 |
860202822 |
Round Carbide Runner Kit This part replaces 605352643. |
| 10 |
40225 |
Socket head screw M10 x 140 |
| 11 |
605249284 |
PAINTED COVER - Call your local BRP dealership |
| 12 |
605448594 |
BUSHING - Call your local BRP dealership |
| 13 |
505073209 |
Ski Axle This part replaces 605348921. |
| 14 |
572034500 |
Cushion |
| 15 |
605455680 |
Absorberfibber washer - Call your local BRP dealership |
| 16 |
605354835 |
Rubber Bumber |
| 17 |
549493 |
Washer |
| 18 |
20014 |
Lock washer A8 |
| 19 |
5241330 |
Spring |
| 20 |
503145600 |
SPACER - Call your local BRP dealership |
| 21 |
316373 |
Seal - Call your local BRP dealership |
| 22 |
40305 |
Socket head screw M8 x 20 |
| 23 |
605348439 |
RUBBER STOPPER - Call your local BRP dealership |
| 24 |
605348437 |
PLATE SUPPORT - Call your local BRP dealership |
| 25 |
33012 |
Elastic stop nut M10 |
| 26 |
Not |
Available As Spare Part - Loctite 480 |
| 27 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 28 |
34019 |
Grease Nipple M6 (1=10pcs) - Call your local BRP dealership |
| 29 |
605353422 |
RH STEERING ARM - Call your local BRP dealership |
| 29 |
605353423 |
LH STEERING ARM - Call your local BRP dealership |
