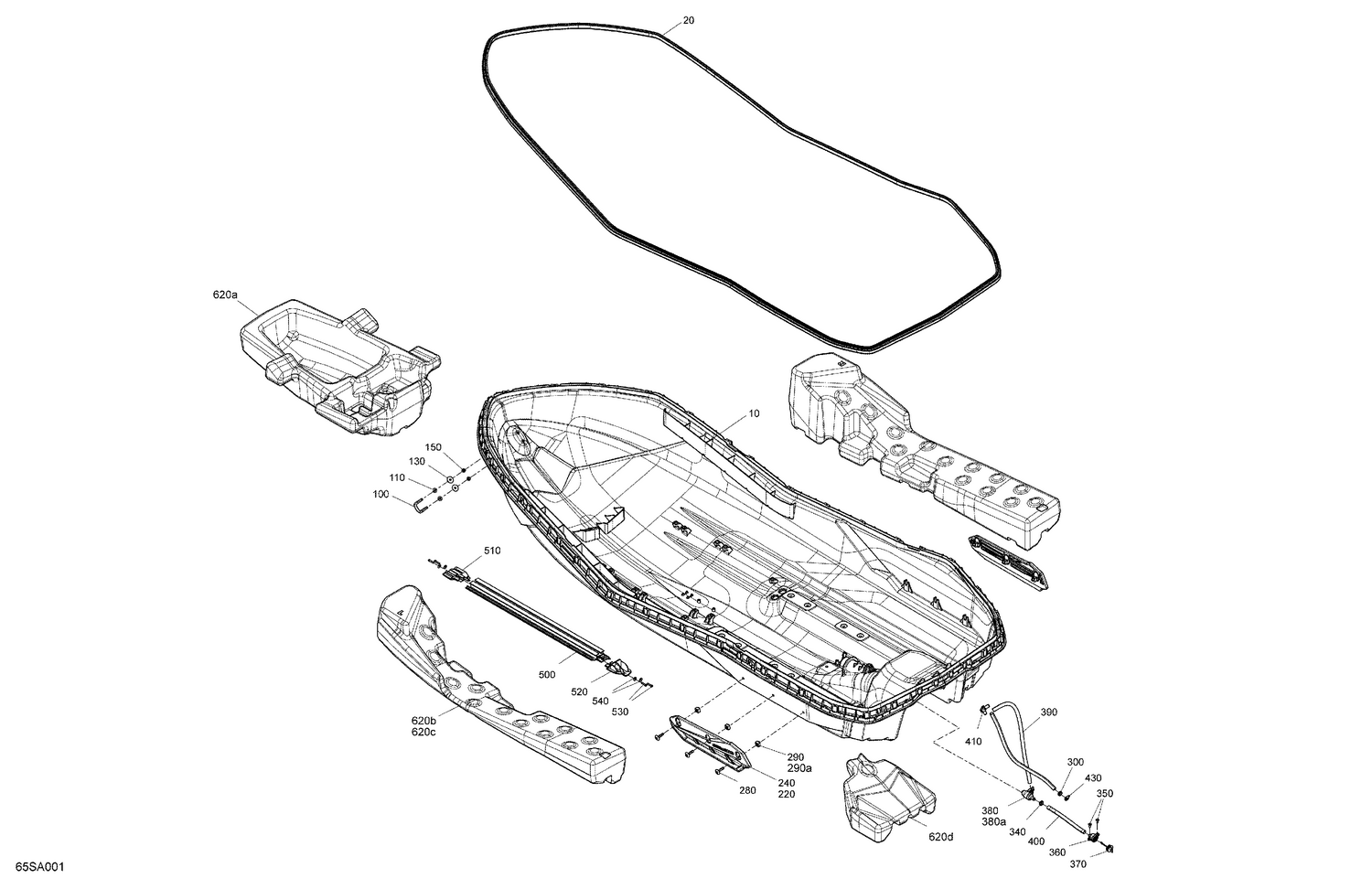

07- Body - Hull
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 295501188 | Hull |
| 20 | 293250338 | Seal Joint |
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 130 | 250200175 | Flat Washer 8 mm, Stainless |
| 150 | 232581200 | Hex. Elastic Nut M8 Brass |
| 220 | 292002009 | RH Sponson |
| 240 | 292002008 | LH Sponson |
| 280 | 250000697 | Torx Screw M8 X 35 |
| 290a | 232581200 | Hex. Elastic Nut M8 Brass |
| 300 | 293830063 | Rubber Washer |
| 340 | 293830063 | Rubber Washer |
| 350 | 250000384 | Torx Screw M6 X 14 |
| 360 | 292001552 | Neck Drain |
| 370 | 292002024 | Plug Drain Ass'y |
| 380a | 293830080 | Floating Ball |
| 390 | 219704393 | Polyurethane Hose 1000Mm Long |
| 400 | 219704393 | Polyurethane Hose 1000Mm Long |
| 410 | 293710152 | Fitting Elbow 90° |
| 430 | 293650171 | Tridon Gear Clamp |
| 500 | 292001549 | Hull Reinforcement |
| 510 | 292001550 | Front End Piece Reinforcement |
| 520 | 292001551 | Rear End Piece Reinforcement |
| 530 | 250000680 | Hex. Flange Screw K50 X 25 |
| 540 | 234052600 | Flat Washer 5 mm, Stainless |
| 620a | 292001439 | Front Float |
| 620b | 292001467 | LH Float |
| 620c | 292001468 | RH Float |
