| Ref | Part Number | Description |
|---|
| COM |
710002705 |
Lock |
| COM |
710002706 |
Female Housing, 6 Circuits |
| COM |
710005438 |
Female Terminal |
| COM |
710005439 |
Female Terminal |
| DIMMER |
515178174 |
Housing, 12 Circuits |
| DIMMER |
710003048 |
Terminal |
| ECMB |
710001589 |
Female Terminal |
| ECMB |
710001590 |
Female Terminal |
| ECMB |
710001591 |
Cover, 48 positions |
| ECMB |
710001592 |
Plug |
| ECMB |
710001727 |
Female Terminal |
| EGTS |
515178013 |
Male Terminal |
| F1 |
710000742 |
Little Fuse, 5 Ampere |
| F2 |
278002389 |
Little Fuse, 25 Ampere |
| F3 |
710000747 |
Little Fuse, 30 Amperes |
| F4 |
710000745 |
Little Fuse, 15 Ampere |
| FB |
278000218 |
Wire Seal |
| FB |
515178001 |
Fuse Box |
| FB |
515178132 |
Fuse Box Cover |
| FB |
515178139 |
Female Terminal |
| FB |
515178194 |
Foam |
| FB |
515178541 |
Decal Fuses |
| FB |
710000048 |
Wire Seal |
| FB |
710000992 |
Clip |
| FP |
515178018 |
Female Terminal |
| FP |
515178474 |
Female Housing |
| GND |
278001392 |
Open Barrel Terminal |
| GRIP |
515178302 |
Female Terminal |
| HL1 |
515178006 |
Female Housing |
| HL1 |
710001228 |
Terminal |
| HL1 |
710001332 |
Seal Wire |
| HL2 |
515178006 |
Female Housing |
| HL2 |
710001228 |
Terminal |
| HL2 |
710001332 |
Seal Wire |
| MAPTS |
415128501 |
Seal |
| MAPTS |
515176410 |
Male Connector |
| MAPTS |
710001137 |
Female Terminal |
| MG |
278002858 |
Female Housing 20 Circuits |
| MG |
278002860 |
Sealing Cap |
| MG |
515178014 |
Female Terminal |
| MG |
515178018 |
Female Terminal |
| RER |
515178013 |
Male Terminal |
| RFID |
710001161 |
Housing |
| RFID |
710001163 |
Wire Seal |
| RFID |
710001164 |
Female Terminal |
| SD |
515177192 |
Female Housing, 2 Circuits |
| SD |
710000925 |
Terminal |
| SD |
710001332 |
Seal Wire |
| THCM |
515177048 |
Female Terminal Housing, 4 Circuit |
| THCM |
515177049 |
Female Terminal |
| THCM |
515177050 |
Seal |
| THCM |
515177051 |
Lock, 4 Circuits |
| TL |
515178014 |
Female Terminal |
| TL |
515178018 |
Female Terminal |
| TL |
515178346 |
Female Housing Connector 4 Pins W/O CPA |
| VSS |
515178024 |
Housing |

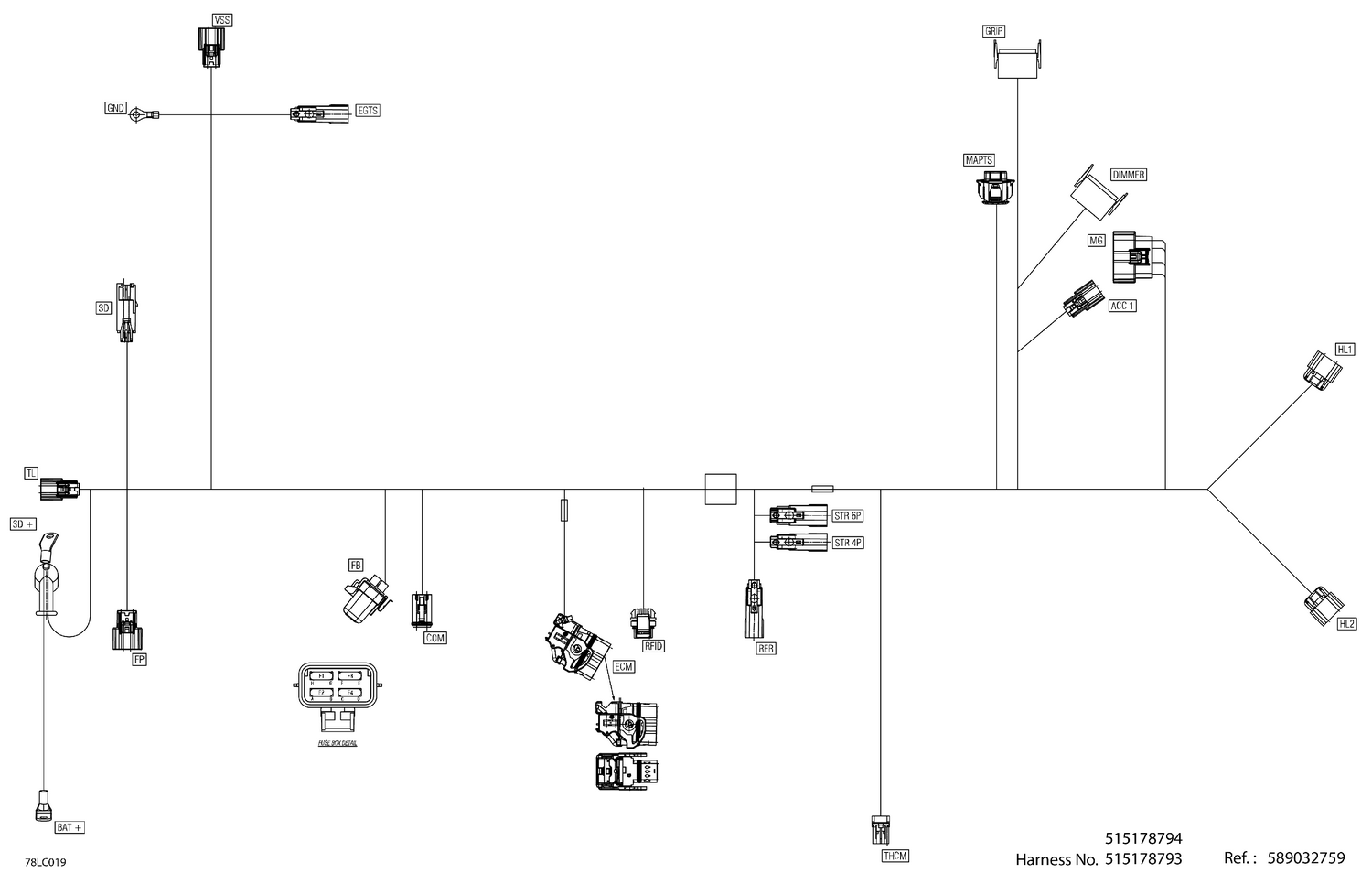

| 3000 |
515178793 |
Chassis Wiring Harness |
| 0206409 |
0206409 |
PIVOT SCREW |
| 0300646 |
0300646 |
VIS, ancrage |
| 0303913 |
0127386 |
RONDELLE This part replaces 0303913. |
| 0304027 |
0304027 |
VIS, arbre de commande de sens de marche |
| 0306418 |
0306418 |
VIS, ancrage |
| 0308776 |
0308776 |
O-RING |
| 0312708 |
0312708 |
BUSHING |
| 0314136 |
0314136 |
VIS, came de papillon |
| 0315164 |
0315164 |
BALL, Shift detent |
| 0318660 |
0318660 |
BUMPER, Screw, throttle stop |
| 0319537 |
0319537 |
CLIP |
| 0321532 |
0321532 |
SCREW |
| 0328456 |
0328456 |
CLAMP |
| 0328699 |
0328699 |
LEVER, Spark control |
| 0328731 |
0328731 |
VIS, câble de verrouillage |
| 0329241 |
0329241 |
RONDELLE |
| 0331109 |
0331109 |
SCREW, Lever |
| 0332482 |
0332482 |
LEVER-SHIFT |
| 0332486 |
0332486 |
SCREW |
| 0333766 |
0333766 |
ANCHOR BLOCK |
| 0334057 |
0334057 |
LINK |
| 0334058 |
0334058 |
LEVER, Shift |
| 0334064 |
0334064 |
LEVER, Cam |
| 0334135 |
0334135 |
BUSHING |
| 0334175 |
0334175 |
RETAINER |
| 0334238 |
0334238 |
VIS, levier vers cylindre |
| 0334241 |
0334241 |
GUIDE |
| 0334246 |
0334246 |
SPACER |
| 0334248 |
0334248 |
DETENT |
| 0334338 |
0334338 |
SCREW, Lever to shift rod |
| 0334736 |
0338676 |
BUMPER, Idle stop This part replaces 0334736. |
| 0334788 |
0334788 |
LINK, Throttle cam |
| 0395007 |
0436201 |
CABLE This part replaces 0395007. |
| 0432014 |
0432014 |
SHAFT Assy, Shift |
| 0432015 |
0432015 |
LEVER Assy, Spark |
| 0432572 |
0432572 |
ROLLER & SLEEVE ASSY |
| 0432684 |
0432684 |
SHELL |
| 0432722 |
0432722 |
CAM-THROTTLE |
| 0908398 |
0908398 |
WASHER |
