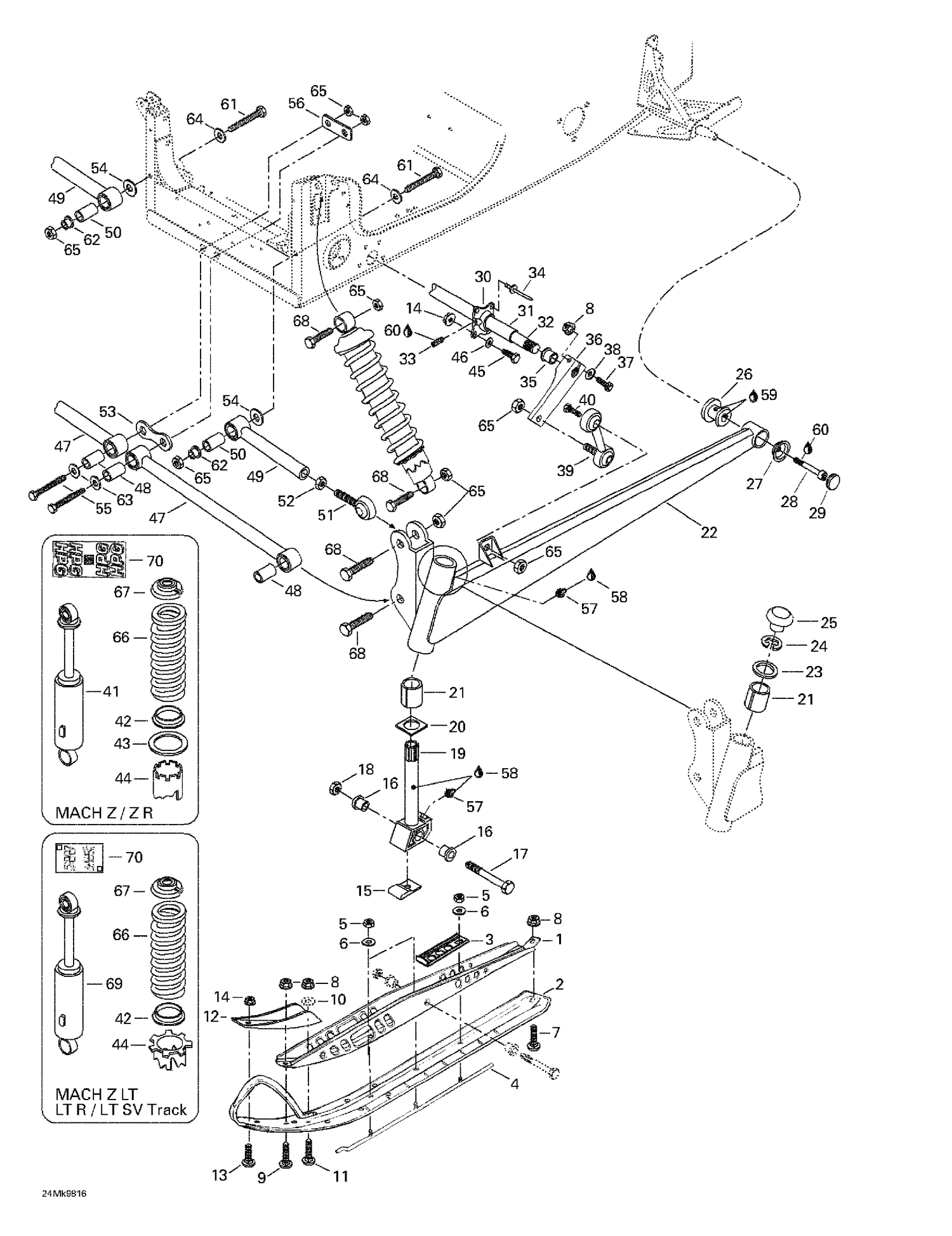

07- Front Suspension And Ski
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505068100 | Ski Support |
| 3 | 505067509 | Stopper |
| 5 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 6 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 7 | 207782544 | Carriage Bolt, M8 X 25 This part replaces 222282565. |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 9 | 207783044 | Carriage Bolt M8 X 30 This part replaces 222283065. |
| 10 | Not | Available As Spare Part - Washer |
| 11 | 222284065 | Carriage Bolt M8 x 40 |
| 12 | 506143800 | Ski Reinforcement |
| 13 | 207762544 | Carriage Bolt M6 X 25 This part replaces 222262565. |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 15 | 570046800 | Ski Stopper |
| 16 | 414530600 | CUSHION - Call your local BRP dealership |
| 17 | 732601176 | Hex. Screw M12 |
| 18 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 19 | 506144500 | Ski Leg |
| 20 | 506081200 | Wear Plate |
| 21 | 572069900 | Cushion |
| 22 | 506128300 | LH Swing Arm |
| 23 | 506080900 | Thrust Washer |
| 24 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 25 | 572091300 | Cap |
| 26 | 570062700 | Damper |
| 27 | 506128500 | Cup |
| 28 | 205002544 | Socket Head Screw M10 X 25 |
| 29 | 572045900 | CAP - Call your local BRP dealership |
| 30 | 506148000 | RH Housing |
| 31 | 506136200 | Main Tube |
| 32 | 506134300 | Stabilizator |
| 33 | 414440800 | Socket Set Screw M8 X 10 |
| 34 | 390404900 | Rivet pop 1/4" |
| 35 | 415039500 | CUSHION - Call your local BRP dealership |
| 36 | 506134402 | Stabilizer Lever |
| 37 | 207084544 | Hex. Screw M8 X 45 This part replaces 222084565. |
| 38 | 234081410 | Flat Washer 8 mm This part replaces 224081171. |
| 39 | 415101400 | Double Ball Joint |
| 40 | 207103544 | Hex. Screw M10 X 35 This part replaces 222003565. |
| 45 | 207162544 | Hex. Screw M6 X 25 This part replaces 222062565. |
| 46 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 48 | 506129100 | Bushing |
| 50 | 506129100 | Bushing |
| 51 | 415068400 | Ball Joint |
| 52 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 53 | 506147900 | Plate |
| 54 | 506148100 | WASHER - Call your local BRP dealership |
| 55 | 207008544 | Hex. Screw M10 x 85 This part replaces 222008565. |
| 56 | 506148300 | Plate |
| 57 | 408200700 | Grease Fitting |
| 58 | 413706100 | LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 59 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 60 | 293800005 | Loctite 271, 10 ml This part replaces 413707400. |
| 61 | 732601004 | Hex. Screw M10 x 110 |
| 62 | 506148400 | Spacer |
| 63 | 503175800 | Washer |
| 64 | 399910100 | Flat Washer |
| 65 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 67 | 706200881 | Spring Stopper This part replaces 503140600. |
| 68 | 207005544 | Hex. Screw M10 X 55 This part replaces 222005565. |
| 506128400 | Bras | Oscillant DDR 506128400 |
| 506128400 | RH | Swing Arm 506128400 |
| 506138900 | LH | Housing 506138900 |
| 506138900 | Logement | GA 506138900 |
