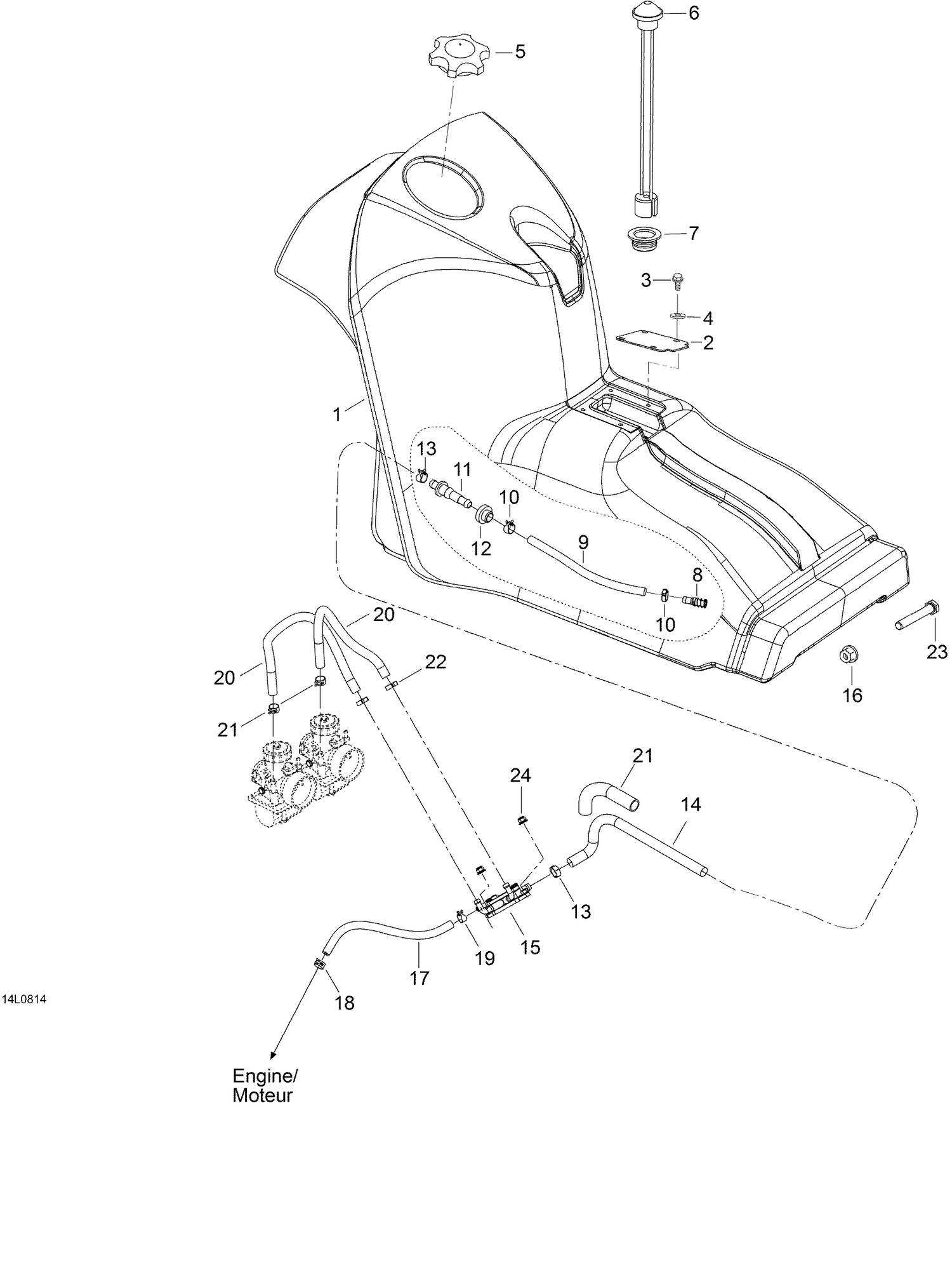

02- Fuel System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605254895 | Fuel tank |
| 2 | 605353106 | Support plate |
| 3 | 605640014 | Socket head screw M5 x 10 |
| 4 | 20002 | Washer A5,3 |
| 5 | 709000059 | FUEL CAP - Call your local BRP dealership |
| 6 | 605354905 | Fuel gauge |
| 7 | 293720058 | Grommet |
| 8 | 414872100 | Fuel filter |
| 9 | 605354463 | Hose |
| 10 | 513033010 | Clamp |
| 11 | 414872700 | Fitting |
| 12 | 707800347 | Grommet This part replaces 570273900. |
| 13 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 14 | 605255378 | Hose |
| 15 | 403901813 | Fuel pump |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 17 | 513033035 | HOSE - Call your local BRP dealership |
| 18 | 414415200 | Clamp |
| 19 | 513033029 | Clamp |
| 20 | 513033022 | HOSE 8 MM, METER - Call your local BRP dealership |
| 21 | 28015 | Tubing |
| 22 | 414420700 | Universal Spring Clamp |
| 23 | 40110 | Screw M6 x 35 |
