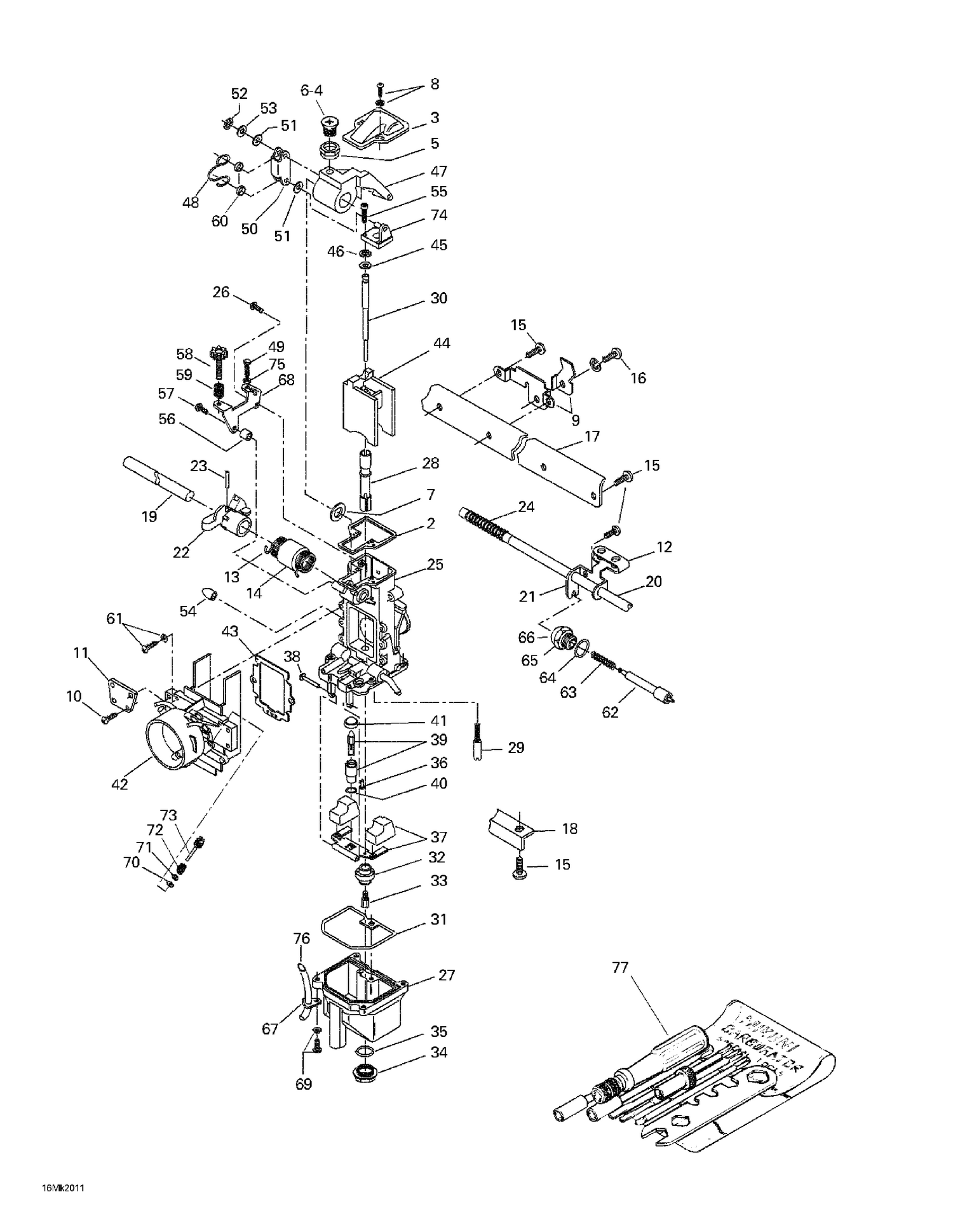

02- Carburetors
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| Not | Available | As Spare Part - Carburetor TM38-274 (Center) |
| 2 | 404143600 | Gasket |
| 3 | 404142700 | Cover |
| 4 | 404139000 | Screw (PTO/Center) |
| 5 | 404143500 | Ring (PTO/Center) |
| 6 | 404138900 | Screw (MAG) |
| 7 | 404144400 | Packing (MAG) |
| 8 | 404139100 | Screw |
| 9 | 404155100 | Bracket Ass'y |
| 10 | 404136100 | Screw |
| 11 | 404142400 | Plate |
| 12 | 404143900 | Lever |
| 13 | 404143200 | Spring |
| 14 | 404141700 | Ring |
| 15 | 404138800 | Screw |
| 16 | 404140500 | Screw |
| 17 | 404142300 | Plate |
| 18 | 404142500 | Plate |
| 19 | 404137100 | Throttle Shaft |
| 20 | 404137200 | Choke Shaft |
| 21 | 404140600 | Starter Lever |
| 22 | 404142100 | Lever Ass'y |
| 23 | 404140100 | Pin |
| 24 | 404158000 | Spring |
| 26 | 404135900 | Screw (MAG) |
| 27 | 404161841 | Float Body Ass'y |
| 28 | 404161830 | Needle Jet |
| 29 | 404144800 | Pilot Jet 50 |
| 30 | 404161829 | Needle J8-8ADY01-41 |
| 31 | 404137000 | O'Ring |
| 32 | 404142900 | Ring |
| 33 | 404107800 | Main Jet MJ 310 (MAG) |
| 34 | 404107400 | Drain Plug Screw |
| 35 | 404107300 | O-Ring |
| 36 | 404141000 | Screw |
| 37 | 404149800 | Float |
| 38 | 404103300 | Lever Pin |
| 39 | 404149500 | NEEDLE SEAT 1.5 - Call your local BRP dealership |
| 40 | 270500127 | O-RING - Call your local BRP dealership |
| 41 | 404141200 | Filter |
| 42 | 404161831 | Funnel (MAG) |
| 43 | 404143700 | Gasket |
| 44 | 404152900 | Piston Valve 2.0 |
| 45 | 404137600 | Packing |
| 46 | 404113300 | Circlip |
| 47 | 404143000 | Throttle Lever (PTO/Center) |
| 48 | 404144100 | Clip |
| 49 | 404138000 | Bolt (MAG) |
| 50 | 404144000 | Plate |
| 51 | 404138100 | Packing |
| 52 | 404138300 | E-Ring |
| 53 | 404139500 | Washer |
| 54 | 404154900 | CAP - Call your local BRP dealership |
| 55 | 404137400 | BOLT - Call your local BRP dealership |
| 56 | 404141800 | Ring (MAG) |
| 57 | 404138800 | Screw |
| 58 | 404137500 | Adjustment Screw |
| 59 | 404138200 | Spring (MAG) |
| 60 | 404144200 | Ring |
| 61 | 404145100 | Screw |
| 62 | 404161842 | Plunger Ass'y |
| 63 | 404141100 | Spring |
| 64 | 404140200 | O-Ring |
| 65 | 404136900 | Guide Holder |
| 66 | 404140000 | Cap |
| 67 | 404144900 | Plate |
| 68 | 404142600 | Bracket (MAG) |
| 69 | 404138700 | Screw |
| 70 | 404139900 | O-RING - Call your local BRP dealership |
| 71 | 404140900 | Washer |
| 72 | 404139800 | SPRING - Call your local BRP dealership |
| 73 | 404154200 | Adjuster Screw |
| 74 | 404142000 | Plate Ass'y |
| 75 | 404139600 | Nut (MAG) |
| 76 | 404161828 | Hose |
| 404143100 | Throttle | Lever (MAG) 404143100 |
